SPANet：空间金字塔注意力网络

在这里插入图片描述

摘要

注意机制在计算机视觉研究中取得了巨大的成功。本文引入空间金字塔注意网络(SPANet)来研究注意块在图像识别中的作用。我们的SPANet概念简单，但实际功能强大。它通过横向增加空间金字塔注意力(SPA)块来增强基础网络。与其他利用全球平均池化的基于注意力的网络相比，我们提出的SPANet同时考虑了结构正则化和结构信息。此外，我们研究了注意路径连接的拓扑结构，提出了三种SPANet结构。SPA块可以灵活地部署到各种卷积神经网络(CNN)架构中。实验结果表明，与其他CNN模型相比，我们的SPANet在不引入太多计算开销的情况下，显著提高了识别精度。

1. SPANet

1.1 SPANet

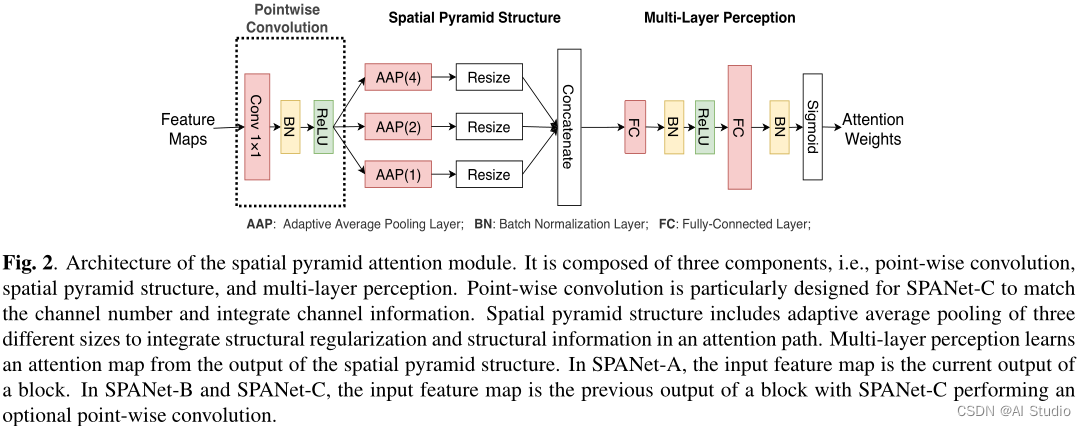

已有的注意力机制(比如SE)仅考虑的通道方面的依赖性，而忽视了结构信息。为增强CNN的特征表达能力，作者提出了一种空间金字塔注意力机制(见图2)，它实现形式与SPPNet中的空金子相似，但两者的出发点不同：SPP出发点是为了获得定长特征向量，而SPA则是从编码结构信息角度出发。主要的模块如下：

Spatial Pyramid Structure：使用多个大小的池化来捕获多尺度信息，并将其展平为1D向量进行concat操作
Fully-Connected Layers：通过类似SE的操作对1的输出进行处理得到注意力权重，具体公式如下：
$\tilde{v}=\operatorname{sig}\left(W_{2} \rho\left(W_{1} v\right)\right)$

在这里插入图片描述

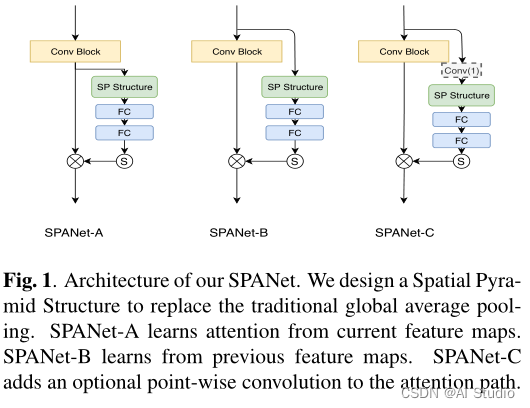

1.2 Attention Path Connection

大多自注意力方法服从这样的的设计规则：以自身作为输入学习一个注意力图并作用于自身。比如SE、SK、BAM、CBAM等等均是这样的操作。在SPANet中，作者探索了三种形式了注意力通路连接方式，并得到了三种形式的SPANet网络架构，见图1所示。

SPANet-A：它将当前输入特征送入到注意力通路并生成1D注意力图，然后将所得注意力图作用于自身。这种方式与SE基本相同，区别仅在于SE采用GAP提取空间上下文信息，SPANet-A采用空间金字塔提取上下文信息：
$x_{l}=\mathfrak{F}\left(x_{l}\right) \otimes x_{l}$
SPANet-B：它直接学习 $x_{l-1}$ 的注意力图，并作用于 $x_{l}$ 。该形式的注意力可以描述为：
$x_{l}=\mathfrak{F}\left(x_{l-1}\right) \otimes x_{l}$
SPANet-C：考虑到 $x_{l-1}$ 的通道数与当前 $x_l$ 的通道数可能不相同，本文在SPANet-B的基础上添加了一个1 x 1的卷积确保通道数相同。该形式的注意力可以描述为：
$x_{l}=\mathfrak{F}\left(\mathfrak{s} \left(x_{l-1}\right)\right) \otimes x_{l}$

2. 代码复现

2.1 下载并导入所需要的包

!pip install paddlex

%matplotlib inline
import paddle
import paddle.fluid as fluid
import numpy as np
import matplotlib.pyplot as plt
from paddle.vision.datasets import Cifar10
from paddle.vision.transforms import Transpose
from paddle.io import Dataset, DataLoader
from paddle import nn
import paddle.nn.functional as F
import paddle.vision.transforms as transforms
import os
import matplotlib.pyplot as plt
from matplotlib.pyplot import figure
import paddlex
from paddle import ParamAttr

2.2 创建数据集

train_tfm = transforms.Compose([
    transforms.Resize((130, 130)),
    transforms.ColorJitter(brightness=0.2,contrast=0.2, saturation=0.2),
    transforms.RandomResizedCrop(128, scale=(0.6, 1.0)),
    transforms.RandomHorizontalFlip(0.5),
    transforms.RandomRotation(20),
    paddlex.transforms.MixupImage(),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

test_tfm = transforms.Compose([
    transforms.Resize((128, 128)),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

paddle.vision.set_image_backend('cv2')
# 使用Cifar10数据集
train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm)
val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)
print("train_dataset: %d" % len(train_dataset))
print("val_dataset: %d" % len(val_dataset))

train_dataset: 50000
val_dataset: 10000

batch_size=128

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=4)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=4)

2.3 标签平滑

class LabelSmoothingCrossEntropy(nn.Layer):
    def __init__(self, smoothing=0.1):
        super().__init__()
        self.smoothing = smoothing

    def forward(self, pred, target):

        confidence = 1. - self.smoothing
        log_probs = F.log_softmax(pred, axis=-1)
        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)
        nll_loss = paddle.gather_nd(-log_probs, index=idx)
        smooth_loss = paddle.mean(-log_probs, axis=-1)
        loss = confidence * nll_loss + self.smoothing * smooth_loss

        return loss.mean()

2.4 AlexNet-SPA

2.4.1 SPA

class SPA(nn.Layer):
    def __init__(self, channel, reduction=16):
        super().__init__()
        self.avg_pool1 = nn.AdaptiveAvgPool2D(1)
        self.avg_pool2 = nn.AdaptiveAvgPool2D(2)
        self.avg_pool4 = nn.AdaptiveAvgPool2D(4)
        self.fc = nn.Sequential(
            nn.Linear(channel * 21, channel // reduction, bias_attr=False),
            nn.ReLU(),
            nn.Linear(channel // reduction, channel, bias_attr=False),
            nn.Sigmoid()
        )

    def forward(self, x):
        b, c, _, _ = x.shape
        y1 = self.avg_pool1(x).reshape((b, -1))
        y2 = self.avg_pool2(x).reshape((b, -1))
        y3 = self.avg_pool4(x).reshape((b, -1))
        y = paddle.concat((y1, y2, y3), 1)
        y = self.fc(y).reshape((b, c, 1, 1))
        return x * y

model = SPA(64)
paddle.summary(model, (1, 64, 224, 224))

W0807 19:08:25.996641   311 gpu_resources.cc:61] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1
W0807 19:08:26.000488   311 gpu_resources.cc:91] device: 0, cuDNN Version: 7.6.


-------------------------------------------------------------------------------
   Layer (type)         Input Shape          Output Shape         Param #
===============================================================================
AdaptiveAvgPool2D-1 [[1, 64, 224, 224]]     [1, 64, 1, 1]            0
AdaptiveAvgPool2D-2 [[1, 64, 224, 224]]     [1, 64, 2, 2]            0
AdaptiveAvgPool2D-3 [[1, 64, 224, 224]]     [1, 64, 4, 4]            0
     Linear-1           [[1, 1344]]             [1, 4]             5,376
      ReLU-5              [[1, 4]]              [1, 4]               0
     Linear-2             [[1, 4]]             [1, 64]              256
     Sigmoid-2           [[1, 64]]             [1, 64]               0
===============================================================================
Total params: 5,632
Trainable params: 5,632
Non-trainable params: 0
-------------------------------------------------------------------------------
Input size (MB): 12.25
Forward/backward pass size (MB): 0.01
Params size (MB): 0.02
Estimated Total Size (MB): 12.28
-------------------------------------------------------------------------------






{'total_params': 5632, 'trainable_params': 5632}

2.4.2 AlexNet-SPA

class AlexNet_SPA(nn.Layer):
    def __init__(self,num_classes=10):
        super().__init__()
        self.features=nn.Sequential(
            nn.Conv2D(3,48, kernel_size=11, stride=4, padding=11//2),
            SPA(48),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
            nn.Conv2D(48,128, kernel_size=5, padding=2),
            SPA(128),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
            nn.Conv2D(128, 192,kernel_size=3,stride=1,padding=1),
            SPA(192),
            nn.ReLU(),
            nn.Conv2D(192,192,kernel_size=3,stride=1,padding=1),
            SPA(192),
            nn.ReLU(),
            nn.Conv2D(192,128,kernel_size=3,stride=1,padding=1),
            SPA(128),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
        )
        self.classifier=nn.Sequential(
            nn.Linear(3 * 3 * 128,2048),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(2048,2048),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(2048,num_classes),
        )


    def forward(self,x):
        x = self.features(x)
        x = paddle.flatten(x, 1)
        x=self.classifier(x)

        return x

model = AlexNet_SPA(num_classes=10)

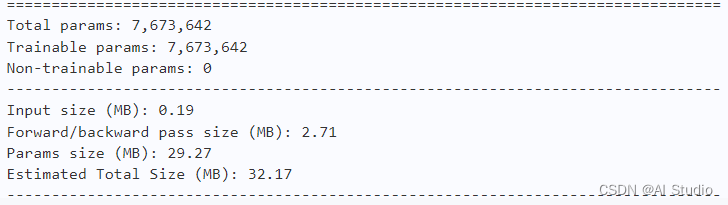

paddle.summary(model, (1, 3, 128, 128))

在这里插入图片描述

2.5 训练

learning_rate = 0.001
n_epochs = 50
paddle.seed(42)
np.random.seed(42)

work_path = 'work/model'

model = AlexNet_SPA(num_classes=10)

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0
threshold = 0.0
best_acc = 0.0
val_acc = 0.0
loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording loss
acc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracy

loss_iter = 0
acc_iter = 0

for epoch in range(n_epochs):
    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()
    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))
    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        accuracy_manager.update(acc)
        if batch_id % 10 == 0:
            loss_record['train']['loss'].append(loss.numpy())
            loss_record['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record['train']['acc'].append(train_acc)
    acc_record['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.
    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))

    # ---------- Validation ----------
    model.eval()

    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)
        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record['val']['loss'].append(total_val_loss.numpy())
    loss_record['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record['val']['acc'].append(val_acc)
    acc_record['val']['iter'].append(acc_iter)

    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))

    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))

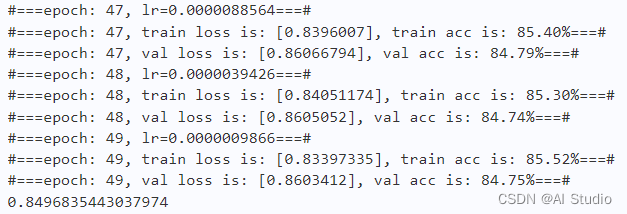

print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

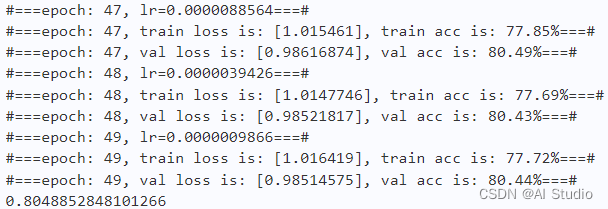

在这里插入图片描述

2.6 实验结果

def plot_learning_curve(record, title='loss', ylabel='CE Loss'):
    ''' Plot learning curve of your CNN '''
    maxtrain = max(map(float, record['train'][title]))
    maxval = max(map(float, record['val'][title]))
    ymax = max(maxtrain, maxval) * 1.1
    mintrain = min(map(float, record['train'][title]))
    minval = min(map(float, record['val'][title]))
    ymin = min(mintrain, minval) * 0.9

    total_steps = len(record['train'][title])
    x_1 = list(map(int, record['train']['iter']))
    x_2 = list(map(int, record['val']['iter']))
    figure(figsize=(10, 6))
    plt.plot(x_1, record['train'][title], c='tab:red', label='train')
    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')
    plt.ylim(ymin, ymax)
    plt.xlabel('Training steps')
    plt.ylabel(ylabel)
    plt.title('Learning curve of {}'.format(title))
    plt.legend()
    plt.show()

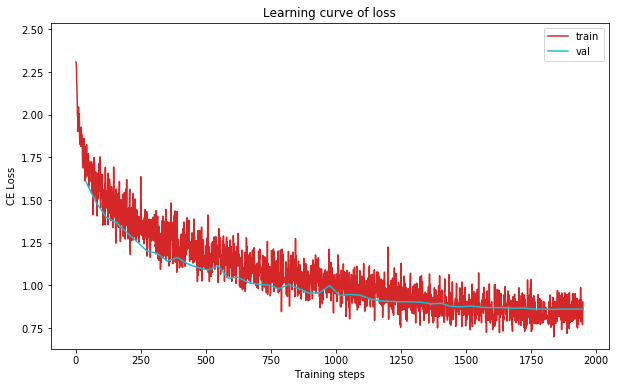

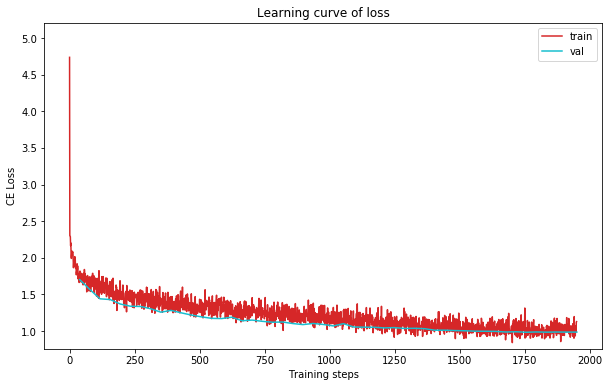

plot_learning_curve(loss_record, title='loss', ylabel='CE Loss')

在这里插入图片描述

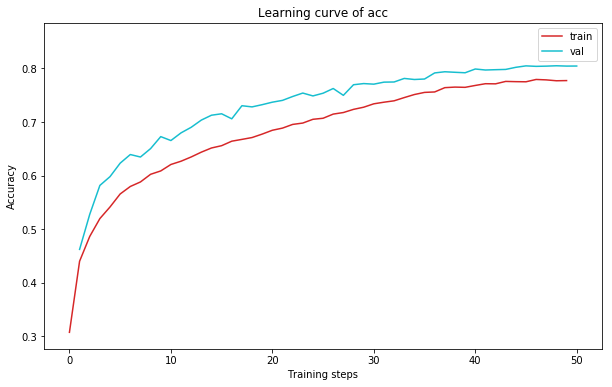

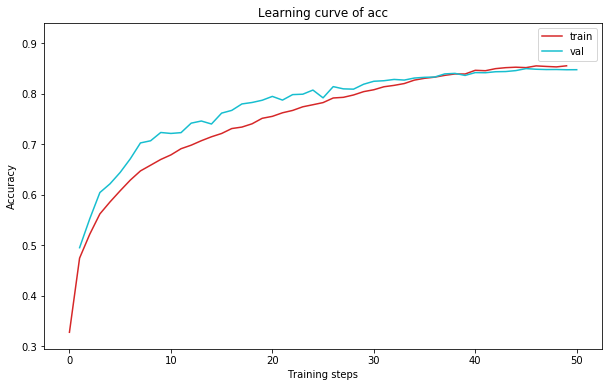

plot_learning_curve(acc_record, title='acc', ylabel='Accuracy')

在这里插入图片描述

import time
work_path = 'work/model'
model = AlexNet_SPA(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()
for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)
    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()
print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

Throughout:2034

def get_cifar10_labels(labels):
    """返回CIFAR10数据集的文本标签。"""
    text_labels = [
        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',
        'horse', 'ship', 'truck']
    return [text_labels[int(i)] for i in labels]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):
    """Plot a list of images."""
    figsize = (num_cols * scale, num_rows * scale)
    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)
    axes = axes.flatten()
    for i, (ax, img) in enumerate(zip(axes, imgs)):
        if paddle.is_tensor(img):
            ax.imshow(img.numpy())
        else:
            ax.imshow(img)
        ax.axes.get_xaxis().set_visible(False)
        ax.axes.get_yaxis().set_visible(False)
        if pred or gt:
            ax.set_title("pt: " + pred[i] + "\ngt: " + gt[i])
    return axes

work_path = 'work/model'

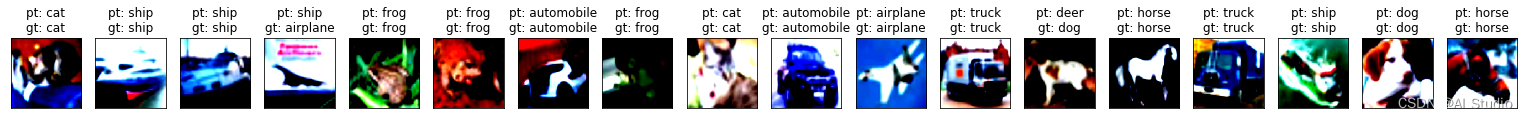

X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = AlexNet_SPA(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 128, 128, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

在这里插入图片描述

3. AlexNet

3.1 AlexNet

class AlexNet(nn.Layer):
    def __init__(self,num_classes=10):
        super().__init__()
        self.features=nn.Sequential(
            nn.Conv2D(3,48, kernel_size=11, stride=4, padding=11//2),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
            nn.Conv2D(48,128, kernel_size=5, padding=2),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
            nn.Conv2D(128, 192,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.Conv2D(192,192,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.Conv2D(192,128,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
        )
        self.classifier=nn.Sequential(
            nn.Linear(3 * 3 * 128,2048),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(2048,2048),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(2048,num_classes),
        )


    def forward(self,x):
        x = self.features(x)
        x = paddle.flatten(x, 1)
        x=self.classifier(x)

        return x

model = AlexNet(num_classes=10)

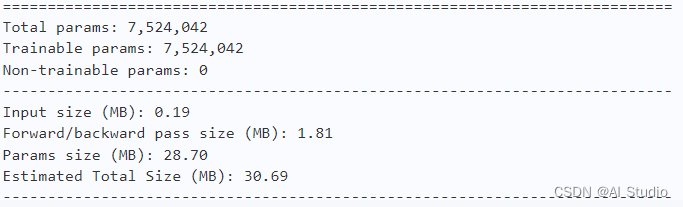

paddle.summary(model, (1, 3, 128, 128))

在这里插入图片描述

3.2 训练

learning_rate = 0.001
n_epochs = 50
paddle.seed(42)
np.random.seed(42)

work_path = 'work/model1'

model = AlexNet(num_classes=10)

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0
threshold = 0.0
best_acc = 0.0
val_acc = 0.0
loss_record1 = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording loss
acc_record1 = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracy

loss_iter = 0
acc_iter = 0

for epoch in range(n_epochs):
    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()
    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))
    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        accuracy_manager.update(acc)
        if batch_id % 10 == 0:
            loss_record1['train']['loss'].append(loss.numpy())
            loss_record1['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record1['train']['acc'].append(train_acc)
    acc_record1['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.
    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))

    # ---------- Validation ----------
    model.eval()

    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)
        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record1['val']['loss'].append(total_val_loss.numpy())
    loss_record1['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record1['val']['acc'].append(val_acc)
    acc_record1['val']['iter'].append(acc_iter)

    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))

    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))

print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

在这里插入图片描述

3.3 实验结果

plot_learning_curve(loss_record1, title='loss', ylabel='CE Loss')

在这里插入图片描述

plot_learning_curve(acc_record1, title='acc', ylabel='Accuracy')

在这里插入图片描述

import time
work_path = 'work/model1'
model = AlexNet(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()
for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)
    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()
print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

Throughout:2131

work_path = 'work/model1'
X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = AlexNet(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 128, 128, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

在这里插入图片描述
