Hi Guy，我们又见面了，这次来弄一个自监督的工作，Masked Autoencoders（MAE）

这是何凯明大佬的又一力作，开源几天就 2k star 了，CV 圈子基本都晓得，当时火爆了整个圈子

别人的工作是提升了多少点，kaiming 的工作是 best、best、best

在详细解读 MAE 之前我们先了解一下视觉自监督发展的背景，在 BEiT 之前视觉自监督一直是对比学习（Contrastive Learning）为主导，如 SimCLR、MoCo v3 等。对比学习说简单点就是让模型学习一种能力，去分辨相同的类型和不同的类型。

拉近相同图片(Aug)，疏远不同图片

如上图所示，我们要让模型去拉近 origin image 和经过 Aug 的图片，同时分开和 origin image 不同的图片，这样通过拉近原图和其 Aug 之后的图片，疏远不同的图片达到了对比学习的效果，这样模型就可以学会自己区分相同类型的图片

尽管对比学习在一些 benchmark 上超过了有监督的方法，但是其局限也很明显，过度依赖 data augmentation（数据扩增），不可避免陷入不变性和一致性的矛盾，但是对比学习确实吊打了之前自监督方法（预测旋转上色拼图等）

（PS：其实想一想就知道了，相同类型图片基本上靠 aug 生成，这个 aug 其实就是一个局限（生成相同类型图像能力有限），&&对比学习的阿喀琉斯之踵&&）

kaiming（没错又是他）的 MoCo v3 大概算是后对比学习时代的优秀工作之一了。在这个时期微软提出了 BEiT，通过 Masked Image 的方式来做自监督，以此来复制 NLP 领域 Masked Language 的成功，结果确实很成功，ImageNet1k 下Top-1 acc 达到了惊人的 88.6 %，就这样自监督研究风向开始偏向了生成式自监督

BEiT 是一个生成式自监督范式

基于 BEiT 产生了很多优秀的工作，除了本文的 MAE 之外还有 PeCo、SimMIM、MaskedFeat 等生成式自监督算法

（ps，从背景来说也是因为视觉 Transformer 的发展带动了生成式自监督算法发展）

背景说完了我们来看看 MAE，一句话，MAE 比 BEiT 更简单，大道至简，论文观点非常非常 insight，同时又很 soild

MAE 的流程图如下所示

大道至简的 MAE

从左到右，将图片 patch 化然后 mask 掉一部分，未 mask 的部分进入 encoder，得到的输出再加上之前 mask 的部分一起进入 decoder 复原图像，目标是复原的图像尽可能接近原图

更详细的东西我们搭建模型时候慢慢讲解

为了方便大家理解，PASSL 画了流程图带大家实现一个简单的 MAE

MAE 流程图1

原论文在 ImageNet1k 下使用了 8 机 8 卡跑实验，这里我们采用 Cifar10 来作为 MAE 的数据集，这样我们仅需单卡 V100-32g 就可以实现一个简单的 MAE

首先是搭建模型，如上图所示我们先搭建 pretrain 和 finetune 模型，分别是

1. MAE finetune model

2. MAE pretrain model

🎯 FAQ：pretrain 和 finetune 都是在干啥？

答：pretrain 用来让模型学习 “复原能力”，即把原图 mask 掉一部分，让模型去学习复原它，在学习复原过程中模型学到了数据内在的表示。finetune 则是将 pretrain 之后的encoder 权重提取出来，利用学习好的权重在 down stream 做微调

🎯 FAQ：encoder 和 decoder 有什么区别？

答：在 pretrain 阶段，encoder 主要用来学习数据内在表征，decoder 主要用来复原图像。encoder 模型大一些，decoder 模型小一些。它们都是 ViT 的架构

mae 组网

# 搭建 MAE pretrain model
# 因为 encoder 和 decoder 都是 vit 的架构，需要先搭建 vit 需要的模块

import paddle
import paddle.nn as nn
import paddle.nn.functional as F
from functools import partial

# 权重初始化模块
trunc_normal_ = nn.initializer.TruncatedNormal(std=0.02)
xavier_uniform_ = nn.initializer.XavierUniform()
zeros_ = nn.initializer.Constant(value=0.0)
ones_ = nn.initializer.Constant(value=1.0)

# DropPath 模块
def drop_path(x, drop_prob=0., training=False):
    if drop_prob == 0. or not training:
        return x
    keep_prob = paddle.to_tensor(1 - drop_prob)
    shape = (paddle.shape(x)[0], ) + (1, ) * (x.ndim - 1)
    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)
    random_tensor = paddle.floor(random_tensor)
    output = x.divide(keep_prob) * random_tensor
    return output

class DropPath(nn.Layer):
    def __init__(self, drop_prob=None):
        super().__init__()
        self.drop_prob = drop_prob

    def forward(self, x):
        return drop_path(x, self.drop_prob, self.training)


# Identity 模块
class Identity(nn.Layer):
    def __init__(self):
        super().__init__()

    def forward(self, x):
        return x

# MLP 模块
class Mlp(nn.Layer):
    def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features

        self.fc1 = nn.Linear(in_features, hidden_features)
        self.act = act_layer()
        self.drop1 = nn.Dropout(drop)
        self.fc2 = nn.Linear(hidden_features, out_features)
        self.drop2 = nn.Dropout(drop)

    def forward(self, x):
        x = self.fc1(x)
        x = self.act(x)
        x = self.drop1(x)
        x = self.fc2(x)
        x = self.drop2(x)
        return x

# patch embed 模块
# 用于将 images [B C H W] 划分为 patches [B L D]
class PatchEmbed(nn.Layer):
    def __init__(self, img_size=224, patch_size=16, in_chans=3, embed_dim=768, norm_layer=None, flatten=True):
        super().__init__()
        img_size = (img_size, img_size)
        patch_size = (patch_size, patch_size)
        self.img_size = img_size
        self.patch_size = patch_size
        self.grid_size = (img_size[0] // patch_size[0], img_size[1] // patch_size[1])
        self.num_patches = self.grid_size[0] * self.grid_size[1]
        self.flatten = flatten

        self.proj = nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size)
        self.norm = norm_layer(embed_dim) if norm_layer else Identity()

    def forward(self, x):
        B, C, H, W = x.shape
        assert H == self.img_size[0], f"Input image height ({H}) doesn't match model ({self.img_size[0]})."
        assert W == self.img_size[1], f"Input image width ({W}) doesn't match model ({self.img_size[1]})."
        x = self.proj(x)
        if self.flatten:
            x = x.flatten(2).transpose([0,2,1])  # BCHW -> BLD
        x = self.norm(x)
        return x

# MHA (multi-head attention)
# 用于提取全局特征，是 ViT 的灵魂
class Attention(nn.Layer):
    def __init__(self, dim, num_heads=8, qkv_bias=False, attn_drop=0., proj_drop=0.):
        super().__init__()
        self.num_heads = num_heads
        head_dim = dim // num_heads
        self.scale = head_dim ** -0.5

        self.qkv = nn.Linear(dim, dim * 3, bias_attr=qkv_bias)
        self.attn_drop = nn.Dropout(attn_drop)
        self.proj = nn.Linear(dim, dim)
        self.proj_drop = nn.Dropout(proj_drop)

    def forward(self, x):
        B, N, C = x.shape
        qkv = self.qkv(x).reshape([B, N, 3, self.num_heads, C // self.num_heads]).transpose([2, 0, 3, 1, 4])
        q, k, v = qkv.unbind(0)

        attn = (q @ k.transpose([0, 1, 3, 2])) * self.scale
        attn = F.softmax(attn, axis=-1)
        attn = self.attn_drop(attn)

        x = (attn @ v).transpose([0, 2, 1, 3]).reshape([B, N, C])
        x = self.proj(x)
        x = self.proj_drop(x)
        return x

# Block 模块
# 将 mlp、mha 等组合在一起，是 vit 架构 "基本单位"
class Block(nn.Layer):
    def __init__(self, dim, num_heads, mlp_ratio=4., qkv_bias=False, drop=0., attn_drop=0.,
                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm):
        super().__init__()
        self.norm1 = norm_layer(dim)
        self.attn = Attention(dim, num_heads=num_heads, qkv_bias=qkv_bias, attn_drop=attn_drop, proj_drop=drop)

        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()
        self.norm2 = norm_layer(dim)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer, drop=drop)

    def forward(self, x):
        x = x + self.drop_path(self.attn(self.norm1(x)))
        x = x + self.drop_path(self.mlp(self.norm2(x)))
        return x

上面基本模块搭建完成后，我们就可以像乐高一样搭建 pretrain 和 finetune 模型了

先来一个 finetune 模型把

class MAE_FineTune(nn.Layer):

    def __init__(self, img_size=224, patch_size=16, in_chans=3, num_classes=1000, embed_dim=768, depth=12,
                 num_heads=12, mlp_ratio=4., qkv_bias=True,
                 drop_rate=0., attn_drop_rate=0., drop_path_rate=0., embed_layer=PatchEmbed, norm_layer=None,
                 act_layer=None):

        super().__init__()
        self.num_classes = num_classes
        self.num_features = self.embed_dim = embed_dim
        norm_layer = norm_layer or partial(nn.LayerNorm, epsilon=1e-6)
        act_layer = act_layer or nn.GELU

        self.patch_embed = embed_layer(
            img_size=img_size, patch_size=patch_size, in_chans=in_chans, embed_dim=embed_dim)
        num_patches = self.patch_embed.num_patches

        self.cls_token = paddle.create_parameter(
            shape=[1, 1, embed_dim],
            dtype='float32',
            default_initializer=trunc_normal_)

        self.pos_embed = paddle.create_parameter(
            shape=[1, num_patches + 1, embed_dim],
            dtype='float32',
            default_initializer=trunc_normal_)

        self.pos_drop = nn.Dropout(p=drop_rate)

        dpr = [x.item() for x in paddle.linspace(0, drop_path_rate, depth)]
        self.blocks = nn.Sequential(*[
            Block(
                dim=embed_dim, num_heads=num_heads, mlp_ratio=mlp_ratio, qkv_bias=qkv_bias, drop=drop_rate,
                attn_drop=attn_drop_rate, drop_path=dpr[i], norm_layer=norm_layer, act_layer=act_layer)
            for i in range(depth)])
        self.fc_norm = norm_layer(embed_dim)

        self.head = nn.Linear(self.num_features, num_classes) if num_classes > 0 else Identity()
        self.apply(self._init_weights)

    def _init_weights(self, m):
        if isinstance(m, nn.Linear):
            trunc_normal_(m.weight)
            if isinstance(m, nn.Linear) and m.bias is not None:
                zeros_(m.bias)
        elif isinstance(m, nn.LayerNorm):
            zeros_(m.bias)
            ones_(m.weight)


    def forward_features(self, x):
        B = x.shape[0]
        x = self.patch_embed(x)

        cls_tokens = self.cls_token.expand([B, -1, -1])

        x = paddle.concat([cls_tokens, x], axis=1)
        x = x + self.pos_embed
        x = self.pos_drop(x)

        for blk in self.blocks:
            x = blk(x)

        x = x[:, 1:, :].mean(axis=1)
        outcome = self.fc_norm(x)

        return outcome

    def forward(self, x):
        x = self.forward_features(x)
        x = self.head(x)

        return x

def mae_vit_b_p16(**kwargs):
    model = MAE_FineTune(
        embed_dim=768, depth=12, num_heads=12, mlp_ratio=4, qkv_bias=True,
        norm_layer=partial(nn.LayerNorm, epsilon=1e-6), **kwargs)
    return model


if __name__ == '__main__':
    # 测试模型是否跑通
    m = mae_vit_b_p16(img_size=32, patch_size=4, num_classes=10)
    x = paddle.randn([2,3,32,32])
    out = m(x)
    print(out.shape) # output [2,10]

W0208 13:51:01.417953  2649 device_context.cc:447] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 10.1, Runtime API Version: 10.1
W0208 13:51:01.423804  2649 device_context.cc:465] device: 0, cuDNN Version: 7.6.


[2, 10]

MAE finetune 模型和 ViT 模型是一样的，不同之处是后续处理部分，ViT 是提取 cls token 做分类，MAE finetune 模型则是将 patches token（除了 cls token 之外） 做 mean 然后分类

接下来实现一下 pretrain 模型

import numpy as np

def get_1d_sincos_pos_embed_from_grid(embed_dim, pos):
    """
    embed_dim: output dimension for each position
    pos: a list of positions to be encoded: size (M,)
    out: (M, D)
    """
    assert embed_dim % 2 == 0
    omega = np.arange(embed_dim // 2, dtype=np.float)
    omega /= embed_dim / 2.
    omega = 1. / 10000**omega  # (D/2,)

    pos = pos.reshape(-1)  # (M,)
    out = np.einsum('m,d->md', pos, omega)  # (M, D/2), outer product

    emb_sin = np.sin(out)  # (M, D/2)
    emb_cos = np.cos(out)  # (M, D/2)

    emb = np.concatenate([emb_sin, emb_cos], axis=1)  # (M, D)
    return emb


def get_2d_sincos_pos_embed_from_grid(embed_dim, grid):
    assert embed_dim % 2 == 0

    # use half of dimensions to encode grid_h
    emb_h = get_1d_sincos_pos_embed_from_grid(embed_dim // 2,
                                              grid[0])  # (H*W, D/2)
    emb_w = get_1d_sincos_pos_embed_from_grid(embed_dim // 2,
                                              grid[1])  # (H*W, D/2)

    emb = np.concatenate([emb_h, emb_w], axis=1)  # (H*W, D)
    return emb


def get_2d_sincos_pos_embed(embed_dim, grid_size, cls_token=False):
    """
    grid_size: int of the grid height and width
    return:
    pos_embed: [grid_size*grid_size, embed_dim] or [1+grid_size*grid_size, embed_dim] (w/ or w/o cls_token)
    """
    grid_h = np.arange(grid_size, dtype=np.float32)
    grid_w = np.arange(grid_size, dtype=np.float32)
    grid = np.meshgrid(grid_w, grid_h)  # here w goes first
    grid = np.stack(grid, axis=0)

    grid = grid.reshape([2, 1, grid_size, grid_size])
    pos_embed = get_2d_sincos_pos_embed_from_grid(embed_dim, grid)
    if cls_token:
        pos_embed = np.concatenate([np.zeros([1, embed_dim]), pos_embed],
                                   axis=0)
    return pos_embed

class MAE_Pretrain(nn.Layer):
    """ Masked Autoencoder with VisionTransformer backbone
    """
    def __init__(self, img_size=224, patch_size=16, in_chans=3,
                 embed_dim=1024, depth=24, num_heads=16,
                 decoder_embed_dim=512, decoder_depth=8, decoder_num_heads=16,
                 mlp_ratio=4., norm_layer=nn.LayerNorm, norm_pix_loss=False):
        super().__init__()

        # --------------------------------------------------------------------------
        # MAE encoder specifics
        self.patch_embed = PatchEmbed(img_size, patch_size, in_chans, embed_dim)
        num_patches = self.patch_embed.num_patches

        self.cls_token = paddle.create_parameter(
            shape=[1, 1, embed_dim],
            dtype='float32',
            default_initializer=trunc_normal_)

        self.pos_embed = paddle.create_parameter(
            shape=[1, num_patches + 1, embed_dim],
            dtype='float32',
            default_initializer=trunc_normal_)

        self.pos_embed.stop_gradient=True  # fixed sin-cos embedding

        self.blocks = nn.LayerList([
            Block(embed_dim, num_heads, mlp_ratio, qkv_bias=True, norm_layer=norm_layer)
            for i in range(depth)])
        self.norm = norm_layer(embed_dim)
        # --------------------------------------------------------------------------

        # --------------------------------------------------------------------------
        # MAE decoder specifics
        self.decoder_embed = nn.Linear(embed_dim, decoder_embed_dim, bias_attr=True)

        self.mask_token = paddle.create_parameter(
            shape=[1, 1, decoder_embed_dim],
            dtype='float32',
            default_initializer=trunc_normal_)

        self.decoder_pos_embed = paddle.create_parameter(
            shape=[1, num_patches + 1, decoder_embed_dim],
            dtype='float32',
            default_initializer=trunc_normal_)

        self.decoder_pos_embed.stop_gradient=True  # fixed sin-cos embedding

        self.decoder_blocks = nn.LayerList([
            Block(decoder_embed_dim, decoder_num_heads, mlp_ratio, qkv_bias=True, norm_layer=norm_layer)
            for i in range(decoder_depth)])

        self.decoder_norm = norm_layer(decoder_embed_dim)
        self.decoder_pred = nn.Linear(decoder_embed_dim, patch_size**2 * in_chans, bias_attr=True) # decoder to patch
        # --------------------------------------------------------------------------

        self.norm_pix_loss = norm_pix_loss

        self.initialize_weights()

    def initialize_weights(self):
        # initialization
        # initialize (and freeze) pos_embed by sin-cos embedding
        pos_embed = get_2d_sincos_pos_embed(
            self.pos_embed.shape[-1],
            int(self.patch_embed.num_patches**.5),
            cls_token=True)
        self.pos_embed.set_value(
            paddle.to_tensor(pos_embed).astype('float32').unsqueeze(0))

        decoder_pos_embed = get_2d_sincos_pos_embed(
            self.decoder_pos_embed.shape[-1],
            int(self.patch_embed.num_patches**.5),
            cls_token=True)
        self.decoder_pos_embed.set_value(
            paddle.to_tensor(decoder_pos_embed).astype('float32').unsqueeze(0))

        # initialize patch_embed like nn.Linear (instead of nn.Conv2d)
        w = self.patch_embed.proj.weight
        xavier_uniform_(w.reshape([w.shape[0], -1]))

        # initialize nn.Linear and nn.LayerNorm
        self.apply(self._init_weights)

    def _init_weights(self, m):
        if isinstance(m, nn.Linear):
            # we use xavier_uniform following official JAX ViT:
            xavier_uniform_(m.weight)
            if isinstance(m, nn.Linear) and m.bias is not None:
                zeros_(m.bias)
        elif isinstance(m, nn.LayerNorm):
            zeros_(m.bias)
            ones_(m.weight)


    def patchify(self, imgs):
        """
        imgs: (N, 3, H, W)
        x: (N, L, patch_size**2 *3)
        """
        p = self.patch_embed.patch_size[0]
        assert imgs.shape[2] == imgs.shape[3] and imgs.shape[2] % p == 0

        h = w = imgs.shape[2] // p
        x = imgs.reshape([imgs.shape[0], 3, h, p, w, p])
        x = paddle.einsum('nchpwq->nhwpqc', x)
        x = x.reshape([imgs.shape[0], h * w, p**2 * 3])
        return x

    def unpatchify(self, x):
        """
        x: (N, L, patch_size**2 *3)
        imgs: (N, 3, H, W)
        """
        p = self.patch_embed.patch_size[0]
        h = w = int(x.shape[1]**.5)
        assert h * w == x.shape[1]

        x = x.reshape([x.shape[0], h, w, p, p, 3])
        x = paddle.einsum('nhwpqc->nchpwq', x)
        imgs = x.reshape([x.shape[0], 3, h * p, h * p])
        return imgs

    def random_masking(self, x, mask_ratio):
        """
        Perform per-sample random masking by per-sample shuffling.
        Per-sample shuffling is done by argsort random noise.
        x: [N, L, D], sequence
        """
        N, L, D = x.shape  # batch, length, dim
        len_keep = int(L * (1 - mask_ratio))

        noise = paddle.rand([N, L])  # noise in [0, 1]

        # sort noise for each sample
        ids_shuffle = paddle.argsort(noise, axis=1)  # ascend: small is keep, large is remove
        ids_restore = paddle.argsort(ids_shuffle, axis=1)

        # keep the first subset
        ids_keep = ids_shuffle[:, :len_keep]

        x_masked = x[paddle.arange(N)[:,None], ids_keep]

        # generate the binary mask: 0 is keep, 1 is remove
        mask = paddle.ones([N, L])
        mask[:, :len_keep] = 0
        # unshuffle to get the binary mask
        mask = mask[paddle.arange(N)[:,None], ids_restore]

        return x_masked, mask, ids_restore

    def forward_encoder(self, x, mask_ratio):
        # embed patches
        x = self.patch_embed(x)

        # add pos embed w/o cls token
        x = x + self.pos_embed[:, 1:, :]

        # masking: length -> length * mask_ratio
        x, mask, ids_restore = self.random_masking(x, mask_ratio)

        # append cls token
        cls_token = self.cls_token + self.pos_embed[:, :1, :]
        cls_tokens = cls_token.expand([x.shape[0], -1, -1])
        x = paddle.concat([cls_tokens, x], axis=1)

        # apply Transformer blocks
        for blk in self.blocks:
            x = blk(x)
        x = self.norm(x)

        return x, mask, ids_restore

    def forward_decoder(self, x, ids_restore):
        # embed tokens
        x = self.decoder_embed(x)

        # append mask tokens to sequence
        mask_tokens = self.mask_token.tile([x.shape[0], ids_restore.shape[1] + 1 - x.shape[1], 1])
        x_ = paddle.concat([x[:, 1:, :], mask_tokens], axis=1)  # no cls token

        x_ = x_[paddle.arange(x.shape[0])[:,None], ids_restore]  # unshuffle

        x = paddle.concat([x[:, :1, :], x_], axis=1)  # append cls token

        # add pos embed
        x = x + self.decoder_pos_embed

        # apply Transformer blocks
        for blk in self.decoder_blocks:
            x = blk(x)
        x = self.decoder_norm(x)

        # predictor projection
        x = self.decoder_pred(x)

        # remove cls token
        x = x[:, 1:, :]

        return x

    def forward_loss(self, imgs, pred, mask):
        """
        imgs: [N, 3, H, W]
        pred: [N, L, p*p*3]
        mask: [N, L], 0 is keep, 1 is remove,
        """
        target = self.patchify(imgs)
        if self.norm_pix_loss:
            mean = target.mean(axis=-1, keepdim=True)
            var = target.var(axis=-1, keepdim=True)
            target = (target - mean) / (var + 1.e-6)**.5

        loss = (pred - target) ** 2
        loss = loss.mean(axis=-1)  # [N, L], mean loss per patch

        loss = (loss * mask).sum() / mask.sum()  # mean loss on removed patches
        return loss

    def forward(self, imgs, mask_ratio=0.75):
        latent, mask, ids_restore = self.forward_encoder(imgs, mask_ratio)

        pred = self.forward_decoder(latent, ids_restore)  # [N, L, p*p*3]
        loss = self.forward_loss(imgs, pred, mask)
        return loss, pred, mask



# dec512d8b -> decoder: 512 dim, 8 blocks
def mae_vit_b_p16_dec512d8b(**kwargs):
    model = MAE_Pretrain(
        embed_dim=768, depth=12, num_heads=12,
        decoder_embed_dim=512, decoder_depth=8, decoder_num_heads=16,
        mlp_ratio=4, norm_layer=partial(nn.LayerNorm, epsilon=1e-6), **kwargs)
    return model

if __name__ == '__main__':
    m = mae_vit_b_p16_dec512d8b(img_size=32, patch_size=4)
    x = paddle.randn([1,3,32,32])
    loss,pred,mask = m(x, mask_ratio=0.75)
    print('==> mae pretrain loss:', loss)
    print('==> mae pretrain pred:', pred)
    print('==> mae pretrain mask:', mask)

==> mae pretrain loss: Tensor(shape=[1], dtype=float32, place=CUDAPlace(0), stop_gradient=False,
       [2.96917653])
==> mae pretrain pred: Tensor(shape=[1, 64, 48], dtype=float32, place=CUDAPlace(0), stop_gradient=False,
       [[[ 0.83697253, -0.26026833, -0.98681760, ..., -1.29600096,
           0.88749015,  0.42709437],
         [ 0.77716583, -0.24290872, -0.96648449, ..., -1.12869048,
           0.78012007,  0.38649371],
         [ 0.75501764, -0.18518722, -0.97667748, ..., -1.02986050,
           0.81335020,  0.30143970],
         ...,
         [ 0.83380073,  0.77986282, -1.10319304, ...,  0.24139202,
           0.51479208, -1.10088062],
         [ 0.28179622,  0.62300211, -1.32151759, ..., -1.10423362,
           1.41711402, -0.18977059],
         [ 0.57918239,  0.73903900, -1.08218038, ...,  0.38149732,
           0.35296690, -1.38562918]]])
==> mae pretrain mask: Tensor(shape=[1, 64], dtype=float32, place=CUDAPlace(0), stop_gradient=True,
       [[1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 0., 1., 1., 1., 1., 0., 0., 1.,
         1., 1., 1., 1., 0., 1., 1., 1., 1., 1., 1., 0., 0., 1., 1., 1., 1., 0.,
         0., 0., 0., 1., 1., 1., 0., 1., 1., 0., 1., 1., 1., 1., 1., 1., 0., 1.,
         1., 0., 1., 1., 1., 1., 1., 0., 1., 0.]])

mae 预训练

Cifar10 数据集准备

现在我们用搭建好的模型来试一下 Cifar10 数据集把

# PaddlePaddle 内置了 Cifar10 数据集

from paddle.io import Dataset
from paddle.io import DataLoader
from paddle.vision import transforms as T
from paddle.vision import datasets


transforms = T.Compose([T.ToTensor(),
                              T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
                              ])

def get_cifar10_dataset(mode='train'):

    assert mode in ['train', 'val']
    if mode == 'train':
        dataset = datasets.Cifar10(mode='train', transform=transforms)
    else:
        dataset = datasets.Cifar10(mode='test', transform=transforms)

    return dataset


def get_dataloader(dataset, mode='train', batch_size=16):

    assert mode in ['train', 'val']
    dataloader = DataLoader(dataset,
                            batch_size=batch_size,
                            num_workers=2,
                            shuffle=(mode == 'train'))

    return dataloader


if __name__ == '__main__':
    dataset_cifar10 = get_cifar10_dataset()
    dataloader_cifar10 = get_dataloader(dataset_cifar10, batch_size=16) # 每 batch 有16张图像及对应标签

    for imgs,labels in dataloader_cifar10:
        print(imgs.shape)
        print(labels.shape)
        break

[16, 3, 32, 32]
[16]

mae 可视化工具准备

mae的可视化工具有助于我们看到模型在pretrain 中的重建能力，更直观了解 mae pretrain

ps：如果不显示图片再运行一下

import paddle
import matplotlib.pyplot as plt
import numpy as np

# 从数据集随机选取一张图片
def get_random_img(dataset):
    total = len(dataset)
    random = np.random.randint(total)

    img,label = dataset[random]

    return img, label


def image_show(img, title=''):

    mean = paddle.to_tensor([0.485, 0.456, 0.406])
    std = paddle.to_tensor([0.229, 0.224, 0.225])

    img = paddle.clip((img * std + mean) * 255, 0, 255)
    img = img.numpy().astype('int32')

    plt.imshow(img)
    plt.title(title, fontsize=16)
    plt.axis('off')


def visualize(img, model, mask_ratio=0.75):

    x = img.unsqueeze(0)

    loss, pre, mask = model(x, mask_ratio=mask_ratio)
    pre = model.unpatchify(pre)
    pre = paddle.einsum('nchw->nhwc', pre)

    mask = mask.unsqueeze(-1).tile([1, 1, model.patch_embed.patch_size[0]**2 *3])
    mask = model.unpatchify(mask)
    mask = paddle.einsum('nchw->nhwc', mask)

    x = paddle.einsum('nchw->nhwc', x)

    im_masked = x * (1 - mask)

    im_paste = x * (1 - mask) + pre * mask

    plt.figure(figsize=(12, 12))

    plt.subplot(1, 3, 1)
    image_show(x[0], "original")

    plt.subplot(1, 3, 2)
    image_show(im_masked[0], "masked "+ str(mask_ratio))

    plt.subplot(1, 3, 3)
    image_show(im_paste[0], "reconstruction")

    plt.show()

if __name__ == '__main__':

    img,label = get_random_img(dataset_cifar10)
    pt_model = mae_vit_b_p16_dec512d8b(img_size=32, patch_size=4)
    visualize(img, pt_model)

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-J0KDndqU-1644733653631)(output_16_0.png)]

材料（cifar10数据集）和锅（mae 模型）都齐活了，开始炼丹把！！！🔥🔥🔥

import paddle
import math

# warmup cosine decay
class WarmupCosineLR(paddle.optimizer.lr.LRScheduler):
    def __init__(self,
                 learning_rate,
                 warmup_start_lr,
                 end_lr,
                 warmup_epochs,
                 total_epochs,
                 last_epoch=-1,
                 verbose=False):

        self.warmup_epochs = warmup_epochs
        self.total_epochs = total_epochs
        self.warmup_start_lr = warmup_start_lr
        self.end_lr = end_lr

        super().__init__(learning_rate, last_epoch, verbose)

    def get_lr(self):
        # linear warmup
        if self.last_epoch < self.warmup_epochs:
            lr = (self.base_lr - self.warmup_start_lr) * float(self.last_epoch)/float(self.warmup_epochs) + self.warmup_start_lr
            return lr

        # cosine annealing decay
        progress = float(self.last_epoch - self.warmup_epochs) / float(max(1, self.total_epochs - self.warmup_epochs))
        cosine_lr = max(0.0, 0.5 * (1. + math.cos(math.pi * progress)))
        lr = max(0.0, cosine_lr * (self.base_lr - self.end_lr) + self.end_lr)
        return lr

# --> step 0: set hyper-parameter
BATCH_SIZE = 256

TOTAL_EPOCHS = 100
WARMUP_EPOCHS = 6

WARMUP_START_LR = 1e-6
BLR = 5e-5
END_LR = 1e-7

IMAGE_SIZE = 32
PATCH_SIZE = 4

MASK_RATIO = 0.75
WEIGHT_DECAY = 1e-4

# --> step 1: 准备数据
train_dataset = get_cifar10_dataset(mode='train')
train_dataloader = get_dataloader(train_dataset, mode='train', batch_size=BATCH_SIZE)
val_dataset = get_cifar10_dataset(mode='val')

# --> step 2: 准备模型
pt_model = mae_vit_b_p16_dec512d8b(img_size=IMAGE_SIZE, patch_size=PATCH_SIZE)

# --> step 3: 设置 lr、opt
lr_schedule = WarmupCosineLR(learning_rate=BLR,
                             warmup_start_lr=WARMUP_START_LR,
                             end_lr=END_LR,
                             warmup_epochs=WARMUP_EPOCHS,
                             total_epochs=TOTAL_EPOCHS)

opt = paddle.optimizer.AdamW(learning_rate=lr_schedule,
                             beta1=0.9,
                             beta2=0.95,
                             parameters=pt_model.parameters(),
                             weight_decay=WEIGHT_DECAY)

# --> step 4: 开始训练
for epoch in range(1, TOTAL_EPOCHS+1):

    pt_model.train()

    print(f'===> [start train] epoch: {epoch}, lr: {opt.get_lr():.6f}')
    for b_id,b_data in enumerate(train_dataloader):

        imgs = b_data[0]
        # labels = b_data[1]  # mae pretrain 是无监督，不需要标签

        loss, _, _ = pt_model(imgs, mask_ratio=MASK_RATIO)

        loss.backward()
        opt.step()
        opt.clear_grad()

        if b_id % 25 == 0:
            print(f"- batch_id: {b_id}, loss: {loss.item():.4f}")

    lr_schedule.step()

    print(' ')

    # visualize
    print(f'===> [get visualize] epoch: {epoch}')
    img, label = get_random_img(val_dataset)
    visualize(img, pt_model)

    print(' ')


# step 5 save model
paddle.save(pt_model.state_dict(),  "mae_pt_vit_b.pdparams")

利用训练好的权重测试 mae pretrain model 的重建能力

# 权重已训练好
ckpt_path = '/home/aistudio/mae_pt_vit_b.pdparams'

model = mae_vit_b_p16_dec512d8b(img_size=32, patch_size=4)

# 随机选取一张img
dataset_cifar10 = get_cifar10_dataset()
img, label = get_random_img(dataset_cifar10)

# 未加载权重
visualize(img, model)

# 加载权重
model.set_state_dict(paddle.load(ckpt_path))
visualize(img, model)

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-FxVoakpF-1644733653632)(output_21_0.png)]

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-6CoKeXpx-1644733653633)(output_21_1.png)]

我们可以看到，经过 pretrain 之后的 mae 可以大致复原出原图像轮廓，令人吃惊的是这仅仅只用了原图像的 25% 像素，正如 mae 论文所说的，“与 language 不同，image 具有很高的冗余性”

下面我们测试一下不同 mask ratio 下的效果

# 加载权重
ckpt_path = '/home/aistudio/mae_pt_vit_b.pdparams'

model = mae_vit_b_p16_dec512d8b(img_size=32, patch_size=4)
model.set_state_dict(paddle.load(ckpt_path))

# 随机选取一张img
dataset_cifar10 = get_cifar10_dataset()
img, label = get_random_img(dataset_cifar10)

visualize(img, model, mask_ratio=0.25)
visualize(img, model, mask_ratio=0.5)
visualize(img, model, mask_ratio=0.75)

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-eUxqnsdj-1644733653633)(output_23_0.png)]

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-Oq4L34eV-1644733653634)(output_23_1.png)]

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-ayW3dudm-1644733653634)(output_23_2.png)]

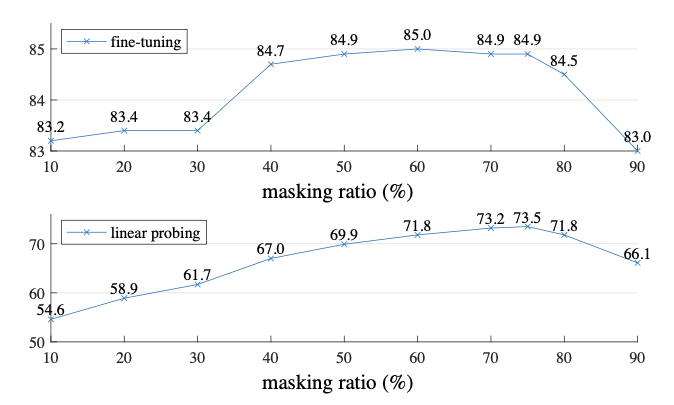

至于论文为什么选mask ratio 0.75？

ratio=0.75 性能更好

不论是训练整个模型的 fine-truning ，还是冻结权重只微调最后分类头的 linear probing，mask ratio 0.75 都取得了良好的性能

mae 微调

mae 微调有两种，一个是对整个模型进行 finetune，加载的权重参与更新，一个是 linear prob，加载的权重不参与更新，只更新最后的分类头部分

在微调之前，将 mae pretrain 得到的权重（encoder）提取出来，加载到 mae finetune 模型上

这里我们用 cifar10 分类做 finetune 简单微调，训练 epoch 为10，用户可以自己进行调参以获得更好的性能，也可以尝试 linear prob

from collections import OrderedDict
import paddle

ckpt_path = '/home/aistudio/mae_pt_vit_b.pdparams'
ckpt = paddle.load(ckpt_path)

def extract_mae_pt(ckpt):
    etr_ckpt = OrderedDict()
    for i in ckpt:
        if i in ['mask_token', 'decoder_pos_embed']:
            continue

        if i.startswith('decoder'):
            break

        etr_ckpt[i] = ckpt[i]
        #print(f'keys {i} is extracted')

    print('Done!')
    return etr_ckpt

/aistudio/mae_pt_vit_b.pdparams'
ckpt = paddle.load(ckpt_path)

def extract_mae_pt(ckpt):
    etr_ckpt = OrderedDict()
    for i in ckpt:
        if i in ['mask_token', 'decoder_pos_embed']:
            continue

        if i.startswith('decoder'):
            break

        etr_ckpt[i] = ckpt[i]
        #print(f'keys {i} is extracted')

    print('Done!')
    return etr_ckpt

new_ckpt = extract_mae_pt(ckpt)

# 将提取的 encoder 权重加载到 mae finetune 模型

ft_model = mae_vit_b_p16(img_size=32, patch_size=4, num_classes=10)
ft_model.set_state_dict(new_ckpt)

# --> step 0: set hyper-parameter
BATCH_SIZE = 64

TOTAL_EPOCHS = 10
WARMUP_EPOCHS = 3

WARMUP_START_LR = 1e-5
BLR = 5e-4
END_LR = 1e-6

MASK_RATIO = 0.75
WEIGHT_DECAY = 1e-4

# --> step 1: 准备数据
train_dataset = get_cifar10_dataset(mode='train')
train_dataloader = get_dataloader(train_dataset, mode='train', batch_size=BATCH_SIZE)

# --> step 2: 准备模型
ft_model = ft_model

# --> step 3: 设置 lr、opt
lr_schedule = WarmupCosineLR(learning_rate=BLR,
                             warmup_start_lr=WARMUP_START_LR,
                             end_lr=END_LR,
                             warmup_epochs=WARMUP_EPOCHS,
                             total_epochs=TOTAL_EPOCHS)

opt = paddle.optimizer.AdamW(learning_rate=lr_schedule,
                             parameters=ft_model.parameters(),
                             weight_decay=WEIGHT_DECAY)

# --> step 4: 开始训练
loss_fn = paddle.nn.CrossEntropyLoss()
for epoch in range(1, TOTAL_EPOCHS+1):

    ft_model.train()

    print(f'===> [start train] epoch: {epoch}, lr: {opt.get_lr():.6f}')
    for b_id,b_data in enumerate(train_dataloader):

        imgs = b_data[0]
        labels = b_data[1]  # mae finetune 是监督，需要标签

        pred = ft_model(imgs)

        loss = loss_fn(pred, labels)
        acc = paddle.metric.accuracy(pred, labels[:,None])

        loss.backward()
        opt.step()
        opt.clear_grad()

        if b_id % 100 == 0:
            print(f"- batch_id: {b_id}, loss: {loss.item():.4f}, acc: {acc.item():.4f}")

    lr_schedule.step()
    print(' ')

# step 5 save model
paddle.save(pt_model.state_dict(),  "mae_ft_vit_b.pdparams")

总结

本项目简单实现了mae 在 cifar10 数据集上的训练，mae 表现了令人惊讶的重建能力，进一步说明图像相比语言具有更冗余的信息，作者认为像素信息具有连续性

其实仔细研究一下模型，会发现 mae 在降低计算量上面是很优雅的，encoder 部分计算的 token 数是经过 masked 的 token，即原来的四分之一（mask ratio 0.75），这大大降低了计算复杂度，同时用于重建的 decoder 模型深度很浅，尽管进入 decoder 的 token 数几乎是原 token 数，但是其带来的计算复杂度在可接受的范围
