摘要

卷积神经网络(CNN)利用池化来减小激活映射的大小。这个过程对于增加接收域和减少后续卷积的计算需求是至关重要的。池化操作的一个重要特性是最小化与初始激活映射相关的信息损失，而不会对计算和内存开销造成重大影响。为了满足这些需求，我们提出了SoftPool：一种快速有效的指数加权激活下采样方法。通过一系列架构和池化方法的实验，我们证明了SoftPool可以在减少的激活映射中保留更多的信息。这种细化的下采样导致了CNN分类精度的提高。在ImageNet1K上使用池化层替换的实验表明，与原始架构和其他池化方法相比，准确性有所提高。我们还在视频数据集上测试SoftPool，用于动作识别。同样，通过直接替换池化层，我们在计算负载和内存需求有限的情况下仍能观察到性能的持续改善。

1. SoftPool

        SoftPool 受 Riesenhuber 和 Poggio 的大脑皮层神经元，以及 Boureau 等人的早期池化实验启发。该方法基于自然指数 $e$ ，确保较大的激活值对输出的影响更明显。该操作可微，在反向传播过程中，所有的局部核临近区域的激活值都会得到一个梯度值。这与 hard-max 池化操作相反。SoftPool 在核区域 $R$ 内使用了激活值的平滑最大近似。每个索引是 $i$ 的激活值 $a_i$ 都会乘上一个权重 $w_i$ ，该权重等于激活值的自然指数除上所有激活值的自然指数和:
$\mathbf{W}_{i}=\frac{e^{\mathbf{a}_{i}}}{\sum_{j \in \mathbf{R}} e^{\mathbf{a}_{j}}}$
        该权重作为非线性变换使用，乘上相应的激活值。较高的激活值会越来越重要。由于大多数池化操作都在高维特征空间使用，着重突出影响大的激活值就是一个更加均衡的方法，而不是简单地选择最大值。对于最大池化，丢弃大多数激活值会带来风险，这会丢失掉重要信息。然而，平均池化中各个位置贡献一样则会降低整体区域特征的作用。在核临近区域 $R$ 中，将所有加权激活值求和，就可得到 SoftPool 的输出值:
$\tilde{\mathbf{a}}=\sum_{i \in \mathbf{R}} \mathbf{w}_{i} * \mathbf{a}_{i}$
        与其它最大池化和平均池化相比，在区域内应用 softmax 操作会输出归一化结果，其概率分布与各激活值相对于邻近的激活值成正比关系。这和目前流行的最大激活值选取或平均激活值截然不同，它们的输出激活不会做正则。图4展示了完整的前向和反向信息流

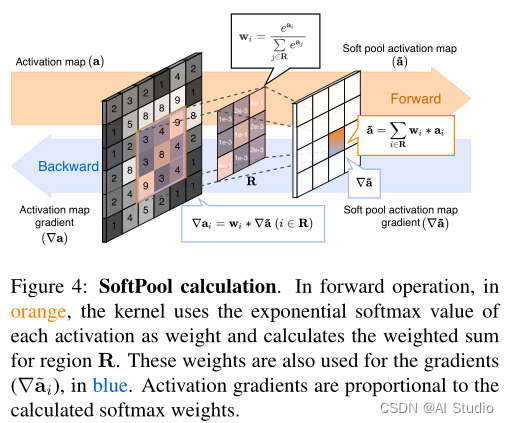

在这里插入图片描述

2. 代码复现

2.1 下载并导入所需要的包

!pip install paddlex

%matplotlib inline
import paddle
import paddle.fluid as fluid
import numpy as np
import matplotlib.pyplot as plt
from paddle.vision.datasets import Cifar10
from paddle.vision.transforms import Transpose
from paddle.io import Dataset, DataLoader
from paddle import nn
import paddle.nn.functional as F
import paddle.vision.transforms as transforms
import os
import matplotlib.pyplot as plt
from matplotlib.pyplot import figure
import paddlex
from paddle.vision.models import resnet50

2.2 创建数据集

train_tfm = transforms.Compose([
    transforms.Resize((230, 230)),
    transforms.ColorJitter(brightness=0.2,contrast=0.2, saturation=0.2),
    paddlex.transforms.MixupImage(),
    transforms.RandomResizedCrop(224, scale=(0.6, 1.0)),
    transforms.RandomHorizontalFlip(0.5),
    transforms.RandomRotation(20),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

test_tfm = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

paddle.vision.set_image_backend('cv2')
# 使用Cifar10数据集
train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm, )
val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)
print("train_dataset: %d" % len(train_dataset))
print("val_dataset: %d" % len(val_dataset))

train_dataset: 50000
val_dataset: 10000

batch_size=128

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=2)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=2)

2.3 标签平滑

class LabelSmoothingCrossEntropy(nn.Layer):
    def __init__(self, smoothing=0.1):
        super().__init__()
        self.smoothing = smoothing

    def forward(self, pred, target):

        confidence = 1. - self.smoothing
        log_probs = F.log_softmax(pred, axis=-1)
        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)
        nll_loss = paddle.gather_nd(-log_probs, index=idx)
        smooth_loss = paddle.mean(-log_probs, axis=-1)
        loss = confidence * nll_loss + self.smoothing * smooth_loss

        return loss.mean()

2.4 AlexNet-SoftPool

2.4.1 SoftPool2D

class SoftPool2D(nn.Layer):
    def __init__(self, kernel_size, stride):
        super(SoftPool2D,self).__init__()
        self.kernel_size = kernel_size
        self.stride = stride

    def forward(self, x):
        x = self.soft_pool2d(x, kernel_size=self.kernel_size, stride=self.stride)
        return x

    def soft_pool2d(self, x, kernel_size=2, stride=None):
        kernel_size = (kernel_size, kernel_size)
        if stride is None:
            stride = kernel_size
        else:
            stride = (stride, stride)
        _, c, h, w = x.shape
        e_x = paddle.sum(paddle.exp(x),axis=1,keepdim=True)
        return F.avg_pool2d(x * e_x, kernel_size, stride=stride) * (sum(kernel_size))/(F.avg_pool2d(e_x, kernel_size, stride=stride) * (sum(kernel_size)))

model = SoftPool2D(3, 2)
paddle.summary(model,(batch_size,3,56,56))

W0705 15:15:45.426669  4170 gpu_context.cc:278] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1
W0705 15:15:45.430444  4170 gpu_context.cc:306] device: 0, cuDNN Version: 7.6.


---------------------------------------------------------------------------
 Layer (type)       Input Shape          Output Shape         Param #
===========================================================================
 SoftPool2D-1    [[128, 3, 56, 56]]    [128, 3, 27, 27]          0
===========================================================================
Total params: 0
Trainable params: 0
Non-trainable params: 0
---------------------------------------------------------------------------
Input size (MB): 4.59
Forward/backward pass size (MB): 2.14
Params size (MB): 0.00
Estimated Total Size (MB): 6.73
---------------------------------------------------------------------------






{'total_params': 0, 'trainable_params': 0}

2.4.2 AlexNet-SoftPool

class AlexNet_SoftPool(nn.Layer):
    def __init__(self,num_classes=10):
        super(AlexNet_SoftPool, self).__init__()
        self.features=nn.Sequential(
            nn.Conv2D(3,48, kernel_size=11, stride=4, padding=11//2),
            nn.ReLU(),
            SoftPool2D(kernel_size=3,stride=2),
            nn.Conv2D(48,128, kernel_size=5, padding=2),
            nn.ReLU(),
            SoftPool2D(kernel_size=3,stride=2),
            nn.Conv2D(128, 192,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.Conv2D(192,192,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.Conv2D(192,128,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            SoftPool2D(kernel_size=3,stride=2),
        )
        self.classifier=nn.Sequential(
            nn.Linear(6*6*128,2048),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(2048,2048),
            nn.ReLU(),
            nn.Dropout(),
            nn.Linear(2048,num_classes),
        )


    def forward(self,x):
        x = self.features(x)
        x = paddle.flatten(x, 1)
        x=self.classifier(x)

        return x

model = AlexNet_SoftPool(num_classes=10)
paddle.summary(model, (batch_size, 3, 224, 224))

---------------------------------------------------------------------------
 Layer (type)       Input Shape          Output Shape         Param #
===========================================================================
   Conv2D-1     [[128, 3, 224, 224]]  [128, 48, 56, 56]       17,472
    ReLU-5      [[128, 48, 56, 56]]   [128, 48, 56, 56]          0
 SoftPool2D-2   [[128, 48, 56, 56]]   [128, 48, 27, 27]          0
   Conv2D-2     [[128, 48, 27, 27]]   [128, 128, 27, 27]      153,728
    ReLU-6      [[128, 128, 27, 27]]  [128, 128, 27, 27]         0
 SoftPool2D-3   [[128, 128, 27, 27]]  [128, 128, 13, 13]         0
   Conv2D-3     [[128, 128, 13, 13]]  [128, 192, 13, 13]      221,376
    ReLU-7      [[128, 192, 13, 13]]  [128, 192, 13, 13]         0
   Conv2D-4     [[128, 192, 13, 13]]  [128, 192, 13, 13]      331,968
    ReLU-8      [[128, 192, 13, 13]]  [128, 192, 13, 13]         0
   Conv2D-5     [[128, 192, 13, 13]]  [128, 128, 13, 13]      221,312
    ReLU-9      [[128, 128, 13, 13]]  [128, 128, 13, 13]         0
 SoftPool2D-4   [[128, 128, 13, 13]]   [128, 128, 6, 6]          0
   Linear-1        [[128, 4608]]         [128, 2048]         9,439,232
    ReLU-10        [[128, 2048]]         [128, 2048]             0
   Dropout-1       [[128, 2048]]         [128, 2048]             0
   Linear-2        [[128, 2048]]         [128, 2048]         4,196,352
    ReLU-11        [[128, 2048]]         [128, 2048]             0
   Dropout-2       [[128, 2048]]         [128, 2048]             0
   Linear-3        [[128, 2048]]          [128, 10]           20,490
===========================================================================
Total params: 14,601,930
Trainable params: 14,601,930
Non-trainable params: 0
---------------------------------------------------------------------------
Input size (MB): 73.50
Forward/backward pass size (MB): 717.06
Params size (MB): 55.70
Estimated Total Size (MB): 846.26
---------------------------------------------------------------------------






{'total_params': 14601930, 'trainable_params': 14601930}

2.5 训练

learning_rate = 0.001
n_epochs = 50
paddle.seed(42)
np.random.seed(42)

work_path = 'work/model'

model = AlexNet_SoftPool(num_classes=10)

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0
threshold = 0.0
best_acc = 0.0
val_acc = 0.0
loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording loss
acc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracy

loss_iter = 0
acc_iter = 0

for epoch in range(n_epochs):
    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()
    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))
    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        accuracy_manager.update(acc)
        if batch_id % 10 == 0:
            loss_record['train']['loss'].append(loss.numpy())
            loss_record['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record['train']['acc'].append(train_acc)
    acc_record['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.
    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))

    # ---------- Validation ----------
    model.eval()

    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)
        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record['val']['loss'].append(total_val_loss.numpy())
    loss_record['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record['val']['acc'].append(val_acc)
    acc_record['val']['iter'].append(acc_iter)

    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))

    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))

print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

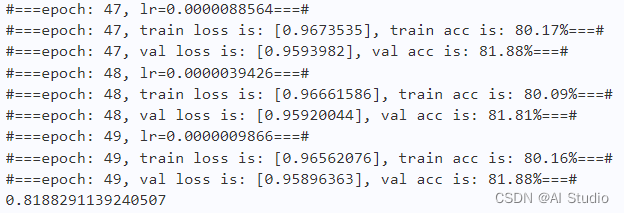

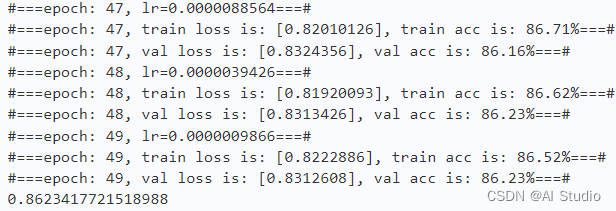

在这里插入图片描述

2.6 实验结果

def plot_learning_curve(record, title='loss', ylabel='CE Loss'):
    ''' Plot learning curve of your CNN '''
    maxtrain = max(map(float, record['train'][title]))
    maxval = max(map(float, record['val'][title]))
    ymax = max(maxtrain, maxval) * 1.1
    mintrain = min(map(float, record['train'][title]))
    minval = min(map(float, record['val'][title]))
    ymin = min(mintrain, minval) * 0.9

    total_steps = len(record['train'][title])
    x_1 = list(map(int, record['train']['iter']))
    x_2 = list(map(int, record['val']['iter']))
    figure(figsize=(10, 6))
    plt.plot(x_1, record['train'][title], c='tab:red', label='train')
    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')
    plt.ylim(ymin, ymax)
    plt.xlabel('Training steps')
    plt.ylabel(ylabel)
    plt.title('Learning curve of {}'.format(title))
    plt.legend()
    plt.show()

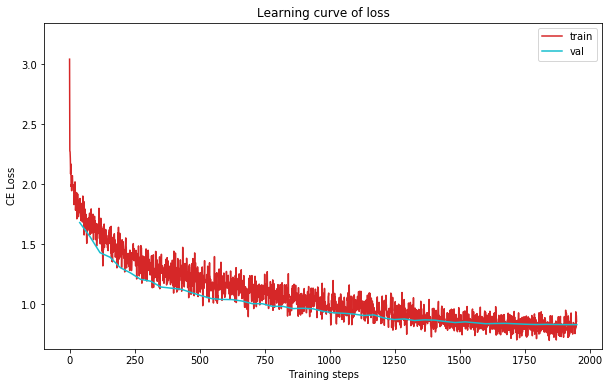

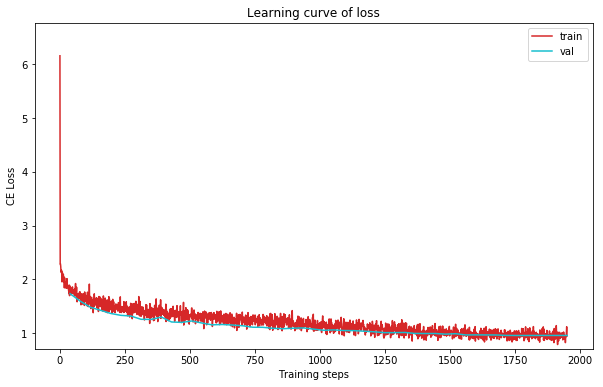

plot_learning_curve(loss_record, title='loss', ylabel='CE Loss')

在这里插入图片描述

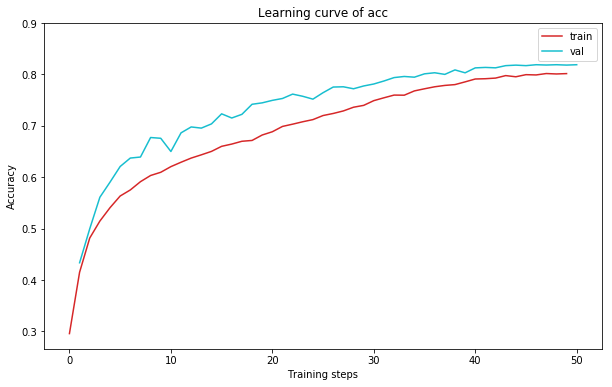

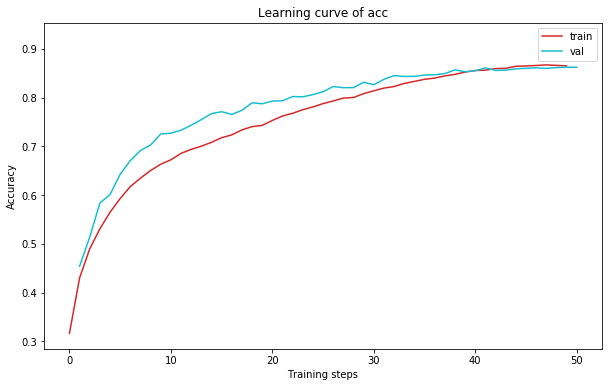

plot_learning_curve(acc_record, title='acc', ylabel='Accuracy')

在这里插入图片描述

import time
work_path = 'work/model'
model = AlexNet_SoftPool(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()
for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)
    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()
print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

Throughout:651

def get_cifar10_labels(labels):
    """返回CIFAR10数据集的文本标签。"""
    text_labels = [
        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',
        'horse', 'ship', 'truck']
    return [text_labels[int(i)] for i in labels]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):
    """Plot a list of images."""
    figsize = (num_cols * scale, num_rows * scale)
    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)
    axes = axes.flatten()
    for i, (ax, img) in enumerate(zip(axes, imgs)):
        if paddle.is_tensor(img):
            ax.imshow(img.numpy())
        else:
            ax.imshow(img)
        ax.axes.get_xaxis().set_visible(False)
        ax.axes.get_yaxis().set_visible(False)
        if pred or gt:
            ax.set_title("pt: " + pred[i] + "\ngt: " + gt[i])
    return axes

work_path = 'work/model'
X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = AlexNet_SoftPool(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 224, 224, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

在这里插入图片描述

3. AlexNet

3.1 AlexNet

class AlexNet(nn.Layer):
    def __init__(self,num_classes=10):
        super(AlexNet, self).__init__()
        self.features=nn.Sequential(
            nn.Conv2D(3,48, kernel_size=11, stride=4, padding=11//2),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
            nn.Conv2D(48,128, kernel_size=5, padding=2),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
            nn.Conv2D(128, 192,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.Conv2D(192,192,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.Conv2D(192,128,kernel_size=3,stride=1,padding=1),
            nn.ReLU(),
            nn.MaxPool2D(kernel_size=3,stride=2),
        )
        self.classifier=nn.Sequential(
            nn.Linear(6*6*128,2048),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(2048,2048),
            nn.ReLU(),
            nn.Dropout(),
            nn.Linear(2048,num_classes),
        )


    def forward(self,x):
        x = self.features(x)
        x = paddle.flatten(x, 1)
        x=self.classifier(x)

        return x

model = AlexNet(num_classes=10)
paddle.summary(model, (batch_size, 3, 224, 224))

---------------------------------------------------------------------------
 Layer (type)       Input Shape          Output Shape         Param #
===========================================================================
   Conv2D-21    [[128, 3, 224, 224]]  [128, 48, 56, 56]       17,472
    ReLU-33     [[128, 48, 56, 56]]   [128, 48, 56, 56]          0
  MaxPool2D-1   [[128, 48, 56, 56]]   [128, 48, 27, 27]          0
   Conv2D-22    [[128, 48, 27, 27]]   [128, 128, 27, 27]      153,728
    ReLU-34     [[128, 128, 27, 27]]  [128, 128, 27, 27]         0
  MaxPool2D-2   [[128, 128, 27, 27]]  [128, 128, 13, 13]         0
   Conv2D-23    [[128, 128, 13, 13]]  [128, 192, 13, 13]      221,376
    ReLU-35     [[128, 192, 13, 13]]  [128, 192, 13, 13]         0
   Conv2D-24    [[128, 192, 13, 13]]  [128, 192, 13, 13]      331,968
    ReLU-36     [[128, 192, 13, 13]]  [128, 192, 13, 13]         0
   Conv2D-25    [[128, 192, 13, 13]]  [128, 128, 13, 13]      221,312
    ReLU-37     [[128, 128, 13, 13]]  [128, 128, 13, 13]         0
  MaxPool2D-3   [[128, 128, 13, 13]]   [128, 128, 6, 6]          0
   Linear-13       [[128, 4608]]         [128, 2048]         9,439,232
    ReLU-38        [[128, 2048]]         [128, 2048]             0
   Dropout-9       [[128, 2048]]         [128, 2048]             0
   Linear-14       [[128, 2048]]         [128, 2048]         4,196,352
    ReLU-39        [[128, 2048]]         [128, 2048]             0
  Dropout-10       [[128, 2048]]         [128, 2048]             0
   Linear-15       [[128, 2048]]          [128, 10]           20,490
===========================================================================
Total params: 14,601,930
Trainable params: 14,601,930
Non-trainable params: 0
---------------------------------------------------------------------------
Input size (MB): 73.50
Forward/backward pass size (MB): 717.06
Params size (MB): 55.70
Estimated Total Size (MB): 846.26
---------------------------------------------------------------------------






{'total_params': 14601930, 'trainable_params': 14601930}

3.2 训练

learning_rate = 0.001
n_epochs = 50
paddle.seed(42)
np.random.seed(42)

work_path = 'work/model1'

model = AlexNet(num_classes=10)

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0
threshold = 0.0
best_acc = 0.0
val_acc = 0.0
loss_record1 = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording loss
acc_record1 = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracy

loss_iter = 0
acc_iter = 0

for epoch in range(n_epochs):
    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()
    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))
    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        accuracy_manager.update(acc)
        if batch_id % 10 == 0:
            loss_record1['train']['loss'].append(loss.numpy())
            loss_record1['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record1['train']['acc'].append(train_acc)
    acc_record1['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.
    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))

    # ---------- Validation ----------
    model.eval()

    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)
        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record1['val']['loss'].append(total_val_loss.numpy())
    loss_record1['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record1['val']['acc'].append(val_acc)
    acc_record1['val']['iter'].append(acc_iter)

    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))

    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))

print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

在这里插入图片描述

3.3 实验结果

plot_learning_curve(loss_record1, title='loss', ylabel='CE Loss')

在这里插入图片描述

plot_learning_curve(acc_record1, title='acc', ylabel='Accuracy')

在这里插入图片描述

import time
work_path = 'work/model1'
model = AlexNet(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()
for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)
    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()
print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

Throughout:611

work_path = 'work/model1'
X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = AlexNet(num_classes=10)
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 224, 224, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

在这里插入图片描述
