赛题介绍

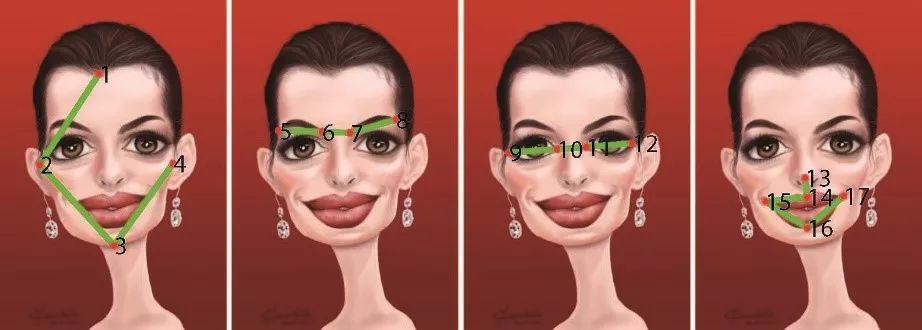

人脸识别是基于人的面部特征信息进行身份识别的一种生物识别技术，金融和安防是目前人脸识别应用最广泛的两个领域。人脸关键点是人脸识别中的关键技术。人脸关键点检测需要识别出人脸的指定位置坐标，例如眉毛、眼睛、鼻子、嘴巴和脸部轮廓等位置坐标等。

赛事任务

给定人脸图像，找到4个人脸关键点，赛题任务可以视为一个关键点检测问题。

训练集：5千张人脸图像，并且给定了具体的人脸关键点标注。
测试集：约2千张人脸图像，需要选手识别出具体的关键点位置。

数据说明

赛题数据由训练集和测试集组成，train.csv为训练集标注数据，train.npy和test.npy为训练集图片和测试集图片，可以使用numpy.load进行读取。

train.csv的信息为左眼坐标、右眼坐标、鼻子坐标和嘴巴坐标，总共8个点。

left_eye_center_x,left_eye_center_y,right_eye_center_x,right_eye_center_y,nose_tip_x,nose_tip_y,mouth_center_bottom_lip_x,mouth_center_bottom_lip_y
66.3423640449,38.5236134831,28.9308404494,35.5777725843,49.256844943800004,68.2759550562,47.783946067399995,85.3615820225
68.9126037736,31.409116981100002,29.652226415100003,33.0280754717,51.913358490600004,48.408452830200005,50.6988679245,79.5740377358
68.7089943925,40.371149158899996,27.1308201869,40.9406803738,44.5025226168,69.9884859813,45.9264269159,86.2210093458

评审规则

本次竞赛的评价标准回归MAE进行评价，数值越小性能更优，最高分为0。评估代码参考：

from sklearn.metrics import mean_absolute_error
y_true = [3, -0.5, 2, 7]
y_pred = [2.5, 0.0, 2, 8]
mean_absolute_error(y_true, y_pred)

!echo y | unzip -O CP936 /home/aistudio/data/data117050/人脸关键点检测挑战赛_数据集.zip
!mv 人脸关键点检测挑战赛_数据集/* ./
!echo y | unzip test.npy.zip
!echo y | unzip train.npy.zip

Archive:  /home/aistudio/data/data117050/人脸关键点检测挑战赛_数据集.zip
  inflating: 人脸关键点检测挑战赛_数据集/sample_submit.csv
  inflating: 人脸关键点检测挑战赛_数据集/test.npy.zip
  inflating: 人脸关键点检测挑战赛_数据集/train.csv
  inflating: 人脸关键点检测挑战赛_数据集/train.npy.zip
Archive:  test.npy.zip
replace test.npy? [y]es, [n]o, [A]ll, [N]one, [r]ename:   inflating: test.npy
Archive:  train.npy.zip
replace train.npy? [y]es, [n]o, [A]ll, [N]one, [r]ename:   inflating: train.npy

!pip install qudida scikit-image albumentations --no-deps

Looking in indexes: https://pypi.tuna.tsinghua.edu.cn/simple
Requirement already satisfied: qudida in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (0.0.4)
Requirement already satisfied: scikit-image in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (0.18.3)
Requirement already satisfied: albumentations in /opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages (1.1.0)

.0)

train.csv：存储的是八个关键点的坐标。
train.npy：训练集图像
test.npy：测试集图像

import pandas as pd
import numpy as np

import warnings
warnings.filterwarnings("ignore")

%pylab inline

# 读取数据集标注
train_df = pd.read_csv('train.csv')
train_df = train_df.fillna(48)
train_df.head()

Populating the interactive namespace from numpy and matplotlib

	left_eye_center_x	left_eye_center_y	right_eye_center_x	right_eye_center_y	nose_tip_x	nose_tip_y	mouth_center_bottom_lip_x	mouth_center_bottom_lip_y
0	66.342364	38.523613	28.930840	35.577773	49.256845	68.275955	47.783946	85.361582
1	68.912604	31.409117	29.652226	33.028075	51.913358	48.408453	50.698868	79.574038
2	68.708994	40.371149	27.130820	40.940680	44.502523	69.988486	45.926427	86.221009
3	65.334176	35.471878	29.366461	37.767684	50.411373	64.934767	50.028780	74.883241
4	68.634857	29.999486	31.094571	29.616429	50.247429	51.450857	47.948571	84.394286

# 读取图片，整理为npy格式
train_img = np.load('train.npy')
test_img = np.load('test.npy')

# 图像数据通道转换
train_img = np.transpose(train_img, [2, 0, 1])
train_img = train_img.reshape(-1, 1, 96, 96)

test_img = np.transpose(test_img, [2, 0, 1])
test_img = test_img.reshape(-1, 1, 96, 96)

print(train_img.shape, test_img.shape)

(5000, 1, 96, 96) (2049, 1, 96, 96)

步骤1：加载预训练模型

import paddle
from paddle.vision.models import resnet18

# 构建模型，这里直接修改预训练模型网络结构
def make_model():
    model = resnet18(pretrained=True)
    model.conv1 = paddle.nn.Conv2D(1, 64, kernel_size=[7, 7], stride=[2, 2], padding=3, data_format='NCHW')
    model.fc = paddle.nn.Linear(512, 8)
    return model

model = make_model()
x = paddle.rand([1, 1, 224, 224])
out = model(x)
print(out.shape)

W1117 14:26:05.379549 15030 device_context.cc:447] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.0, Runtime API Version: 10.1
W1117 14:26:05.384275 15030 device_context.cc:465] device: 0, cuDNN Version: 7.6.
INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams


[1, 8]

步骤2：定义数据扩增

%pylab inline
idx = 400
xy = train_df.iloc[idx].values.reshape(-1, 2)
plt.scatter(xy[:1, 0], xy[:1, 1])
plt.imshow(train_img[idx, 0, :, :], cmap='gray')

Populating the interactive namespace from numpy and matplotlib


/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2349: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
  if isinstance(obj, collections.Iterator):
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2366: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
  return list(data) if isinstance(data, collections.MappingView) else data





<matplotlib.image.AxesImage at 0x7f8000047ad0>



/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:425: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_min = np.asscalar(a_min.astype(scaled_dtype))
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:426: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_max = np.asscalar(a_max.astype(scaled_dtype))

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-sP2v94JY-1646556404320)(output_9_4.png)]

import albumentations as A

# 数据扩增方法，需要考虑到关键点的变换
transform = A.Compose(
    [A.HorizontalFlip(p=1)],
    keypoint_params=A.KeypointParams(format='xy')
)

transformed = transform(image=train_img[idx, 0, :, :], keypoints=xy)
transformed['keypoints'] = np.array(transformed['keypoints'])

plt.scatter(transformed['keypoints'][1, 0], transformed['keypoints'][1, 1])
plt.imshow(transformed['image'], cmap='gray')

<matplotlib.image.AxesImage at 0x7f7e9b4cdc10>



/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:425: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_min = np.asscalar(a_min.astype(scaled_dtype))
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:426: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_max = np.asscalar(a_max.astype(scaled_dtype))

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-u8KxpzEY-1646556404321)(output_10_2.png)]

步骤3：定义数据集

from paddle.io import DataLoader, Dataset
from PIL import Image

# 自定义数据集
class MyDataset(Dataset):
    def __init__(self, img, keypoint, train=True):
        super(MyDataset, self).__init__()
        self.img = img
        self.keypoint = keypoint
        self.train = train

        self.transform = A.Compose([
            A.Resize(96, 96),
        ])

        # 关键点数据扩增
        self.transform1 = A.Compose([
            A.Resize(96, 96),
            A.HorizontalFlip(p=1),
            A.RandomContrast(p=1),
            A.RandomBrightnessContrast(p=1)
        ], keypoint_params=A.KeypointParams(format='xy'))

        self.transform2 = A.Compose([
            A.Blur(p=0.5),
            A.RandomBrightnessContrast(p=0.5),
            A.RandomContrast(p=0.5),
            A.Resize(96, 96),
        ], keypoint_params=A.KeypointParams(format='xy'))

    def __getitem__(self, index):

        # 下面代码为关键点数据扩增具体处理步骤
        # 为增加模型精度，这里有2中数据扩增方法
        if self.train:
            rnd = np.random.randint(10)
            if rnd > 5:
                img = self.transform1(image=self.img[index, 0, :, :].astype(np.uint8),
                                     keypoints=self.keypoint[index].reshape(-1, 2))
                xy = img['keypoints']
                img = img['image'].astype(np.float32)/255
                xy = np.array(xy).astype(np.float32)
                xy = xy[[1, 0, 2, 3]]
            else:
                img = self.transform2(image=self.img[index, 0, :, :].astype(np.uint8),
                                     keypoints=self.keypoint[index].reshape(-1, 2))
                xy = img['keypoints']
                img = img['image'].astype(np.float32)/255
                xy = np.array(xy).astype(np.float32)

            return img.reshape(1, 96, 96), paddle.to_tensor(xy.flatten() / 96)
        else:
            img = Image.fromarray(self.img[index, 0, :, :])
            img = np.asarray(img).astype(np.float32)/255
            return img.reshape(1, 96, 96), self.keypoint[index] / 96.0


    def __len__(self):
        return len(self.keypoint)

# 训练集
train_dataset = MyDataset(
    train_img[:-500, :, :, :],
    train_df.values[:-500].astype(np.float32),
    True
)
train_loader = DataLoader(train_dataset, batch_size=64, shuffle=True)

# 验证集
val_dataset = MyDataset(
    train_img[-500:, :, :, :],
    train_df.values[-500:].astype(np.float32),
    False
)
val_loader = DataLoader(val_dataset, batch_size=64, shuffle=False)

# 测试集
test_dataset = MyDataset(
    test_img[:, :, :],
    np.zeros((test_img.shape[0], 8)),
    False
)
test_loader = DataLoader(test_dataset, batch_size=64, shuffle=False)

步骤4：单折模型训练

# 定义损失函数和评价函数
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=0.005)
criterion = paddle.nn.L1Loss(reduction='mean')

from sklearn.metrics import mean_absolute_error
for epoch in range(0, 20):
    Train_Loss, Val_Loss = [], []
    Train_MAE, Val_MAE = [], []

    # 模型训练
    model.train()
    for i, (x, y) in enumerate(train_loader):
        pred = model(x)

        loss = criterion(pred, y)
        Train_Loss.append(loss.item())
        loss.backward()
        optimizer.step()
        optimizer.clear_grad()
        Train_MAE.append(mean_absolute_error(y.numpy(), pred.numpy()) * 96)

    # 模型预测
    model.eval()
    for i, (x, y) in enumerate(val_loader):
        pred = model(x)
        loss = criterion(pred, y)
        Val_Loss.append(loss.item())
        Val_MAE.append(mean_absolute_error(y.numpy(), pred.numpy()) * 96)

    if epoch % 1 == 0:
        print(f'\nEpoch: {epoch}')
        print(f'Loss {np.mean(Train_Loss):3.5f}/{np.mean(Val_Loss):3.5f} MAE {np.mean(Train_MAE):3.5f}/{np.mean(Val_MAE):3.5f}')

Epoch: 0
Loss 0.37203/0.11440 MAE 35.71535/10.98286

Epoch: 1
Loss 0.09795/0.06849 MAE 9.40349/6.57502

Epoch: 2
Loss 0.07905/0.05564 MAE 7.58880/5.34112

Epoch: 3
Loss 0.07309/0.05452 MAE 7.01674/5.23387

Epoch: 4
Loss 0.06922/0.07734 MAE 6.64545/7.42501

Epoch: 5
Loss 0.05536/0.05599 MAE 5.31448/5.37539

Epoch: 6
Loss 0.06123/0.04331 MAE 5.87844/4.15806

Epoch: 7
Loss 0.05611/0.04777 MAE 5.38680/4.58609

Epoch: 8
Loss 0.05519/0.06417 MAE 5.29804/6.16067

Epoch: 9
Loss 0.05200/0.06752 MAE 4.99160/6.48194

Epoch: 10
Loss 0.05854/0.05403 MAE 5.61967/5.18692

Epoch: 11
Loss 0.05658/0.29385 MAE 5.43145/28.20921

Epoch: 12
Loss 0.05763/0.03205 MAE 5.53287/3.07668

Epoch: 13
Loss 0.05338/3.77058 MAE 5.12425/361.97535

Epoch: 14
Loss 0.06302/0.04331 MAE 6.04996/4.15809

Epoch: 15
Loss 0.05038/0.04483 MAE 4.83634/4.30353

Epoch: 16
Loss 0.05369/0.06514 MAE 5.15467/6.25333

Epoch: 17
Loss 0.04897/0.04639 MAE 4.70134/4.45311

Epoch: 18
Loss 0.05506/0.21816 MAE 5.28606/20.94297

Epoch: 19
Loss 0.06594/0.04694 MAE 6.32994/4.50641

# 测试集预测
def make_predict(model, loader):
    model.eval()
    predict_list = []
    for i, (x, y) in enumerate(loader):
        pred = model(x)
        predict_list.append(pred.numpy())
    return np.vstack(predict_list)

test_pred = make_predict(model, test_loader) * 96

len(train_loader)

# 测试集可视化
idx = 42
xy = test_pred[idx, :].reshape(-1, 2)
plt.scatter(xy[:, 0], xy[:, 1], c='r')
plt.imshow(test_img[idx, 0, :, :], cmap='gray')

<matplotlib.image.AxesImage at 0x7f7e99c14cd0>



/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:425: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_min = np.asscalar(a_min.astype(scaled_dtype))
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:426: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_max = np.asscalar(a_max.astype(scaled_dtype))

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-peFcPdFK-1646556404321)(output_17_2.png)]

步骤5：多折模型训练

from sklearn.model_selection import KFold

kf = KFold(n_splits=6)

# 多折训练
for idx, (train_idx, val_idx) in enumerate(kf.split(train_img, train_img)):

    # 每折训练集
    train_dataset = MyDataset(
        train_img[train_idx, :, :, :],
        train_df.values[train_idx].astype(np.float32),
        True
    )
    train_loader = DataLoader(train_dataset, batch_size=64, shuffle=True)

    # 每折验证集
    val_dataset = MyDataset(
        train_img[val_idx, :, :, :],
        train_df.values[val_idx].astype(np.float32),
        False
    )
    val_loader = DataLoader(val_dataset, batch_size=64, shuffle=False)

    test_dataset = MyDataset(
        test_img[:, :, :],
        np.zeros((test_img.shape[0], 8)),
        False
    )
    test_loader = DataLoader(test_dataset, batch_size=64, shuffle=False)

    model = make_model()
    optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=0.005)
    criterion = paddle.nn.MSELoss(reduction='mean')

    # 模型训练
    best_mae = 1000
    from sklearn.metrics import mean_absolute_error
    for epoch in range(0, 20):
        Train_Loss, Val_Loss = [], []
        Train_MAE, Val_MAE = [], []

        model.train()
        for i, (x, y) in enumerate(train_loader):
            pred = model(x)

            loss = criterion(pred, y)
            Train_Loss.append(loss.item())
            loss.backward()
            optimizer.step()
            optimizer.clear_grad()
            Train_MAE.append(mean_absolute_error(y.numpy(), pred.numpy()) * 96)

        model.eval()
        for i, (x, y) in enumerate(val_loader):
            pred = model(x)
            loss = criterion(pred, y)
            Val_Loss.append(loss.item())
            Val_MAE.append(mean_absolute_error(y.numpy(), pred.numpy()) * 96)

        if best_mae > np.mean(Val_MAE):
            paddle.save(model.state_dict(), f"model_{idx}.pdparams")

        print(f'\nFold {idx+1} Epoch: {epoch}')
        print(f'Loss {np.mean(Train_Loss):3.5f}/{np.mean(Val_Loss):3.5f} MAE {np.mean(Train_MAE):3.5f}/{np.mean(Val_MAE):3.5f}')

INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams



Fold 1 Epoch: 0
Loss 0.94416/0.00426 MAE 32.61103/4.72619

Fold 1 Epoch: 1
Loss 0.00349/0.00295 MAE 4.24089/3.74488

Fold 1 Epoch: 2
Loss 0.00319/0.00343 MAE 4.02212/4.33141

Fold 1 Epoch: 3
Loss 0.00337/0.00321 MAE 4.12612/4.13233

Fold 1 Epoch: 4
Loss 0.00335/0.00331 MAE 4.11586/4.12983

Fold 1 Epoch: 5
Loss 0.00331/0.00242 MAE 4.12359/3.43066

Fold 1 Epoch: 6
Loss 0.00284/0.00223 MAE 3.74762/3.20836

Fold 1 Epoch: 7
Loss 0.00304/0.00358 MAE 3.94653/4.48110

Fold 1 Epoch: 8
Loss 0.00309/0.00267 MAE 3.93305/3.63162

Fold 1 Epoch: 9
Loss 0.00294/0.00307 MAE 3.81775/4.06164

Fold 1 Epoch: 10
Loss 0.00328/0.00261 MAE 4.04670/3.56259

Fold 1 Epoch: 11
Loss 0.00288/0.00282 MAE 3.73693/3.61342

Fold 1 Epoch: 12
Loss 0.00333/0.00359 MAE 4.13195/4.32717

Fold 1 Epoch: 13
Loss 0.00287/0.00659 MAE 3.75797/5.60564

Fold 1 Epoch: 14
Loss 0.00339/0.00453 MAE 4.15032/4.86328

Fold 1 Epoch: 15
Loss 0.00353/0.00345 MAE 4.10001/3.99001

Fold 1 Epoch: 16
Loss 0.00307/0.00788 MAE 3.90741/6.40011

Fold 1 Epoch: 17
Loss 0.00310/0.00469 MAE 3.91649/5.00629

Fold 1 Epoch: 18
Loss 0.00318/0.00310 MAE 3.98748/3.99643

Fold 1 Epoch: 19
Loss 0.00331/0.00519 MAE 4.05921/4.83937


INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams



Fold 2 Epoch: 0
Loss 0.89342/0.01459 MAE 33.90798/8.50453

Fold 2 Epoch: 1
Loss 0.00967/0.01136 MAE 6.48405/8.91911

Fold 2 Epoch: 2
Loss 0.00762/0.00588 MAE 6.04389/5.51903

Fold 2 Epoch: 3
Loss 0.00479/0.00574 MAE 4.56526/5.39814

Fold 2 Epoch: 4
Loss 0.00441/0.00274 MAE 4.38107/3.75544

Fold 2 Epoch: 5
Loss 0.00375/0.00717 MAE 3.94084/6.64185

Fold 2 Epoch: 6
Loss 0.00503/0.00264 MAE 4.61859/3.44157

Fold 2 Epoch: 7
Loss 0.00340/0.00275 MAE 3.60434/3.67714

Fold 2 Epoch: 8
Loss 0.00367/0.00371 MAE 3.68822/4.48952

Fold 2 Epoch: 9
Loss 0.00342/0.00277 MAE 3.76756/3.29718

Fold 2 Epoch: 10
Loss 0.00452/0.00296 MAE 3.90251/3.59065

Fold 2 Epoch: 11
Loss 0.00386/0.00302 MAE 3.70734/3.85156

Fold 2 Epoch: 12
Loss 0.00408/0.00510 MAE 3.85178/4.45351

Fold 2 Epoch: 13
Loss 0.00499/0.00455 MAE 3.99566/4.02180

Fold 2 Epoch: 14
Loss 0.00450/0.00469 MAE 3.78992/4.03149

Fold 2 Epoch: 15
Loss 0.00554/0.00272 MAE 3.99448/3.45180

Fold 2 Epoch: 16
Loss 0.00457/0.00518 MAE 3.86668/4.97044

Fold 2 Epoch: 17
Loss 0.00441/0.00487 MAE 4.12124/5.17729

Fold 2 Epoch: 18
Loss 0.00441/0.00375 MAE 4.32277/3.95233

Fold 2 Epoch: 19
Loss 0.00430/0.00609 MAE 4.03132/5.22334


INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams



Fold 3 Epoch: 0
Loss 0.86947/0.00410 MAE 29.16706/4.85964

Fold 3 Epoch: 1
Loss 0.00321/0.00250 MAE 4.00056/3.50814

Fold 3 Epoch: 2
Loss 0.00297/0.00398 MAE 3.83083/4.34380

Fold 3 Epoch: 3
Loss 0.00311/0.00372 MAE 3.87553/4.51552

Fold 3 Epoch: 4
Loss 0.00281/0.00264 MAE 3.71402/3.64536

Fold 3 Epoch: 5
Loss 0.00287/0.00243 MAE 3.75822/3.52269

Fold 3 Epoch: 6
Loss 0.00272/0.00330 MAE 3.63198/4.33096

Fold 3 Epoch: 7
Loss 0.00293/0.00365 MAE 3.79156/4.50453

Fold 3 Epoch: 8
Loss 0.00314/0.00350 MAE 3.89145/4.27802

Fold 3 Epoch: 9
Loss 0.00312/0.00320 MAE 3.94531/4.05098

Fold 3 Epoch: 10
Loss 0.00284/0.00602 MAE 3.72679/5.85368

Fold 3 Epoch: 11
Loss 0.00328/0.00340 MAE 3.99917/4.22787

Fold 3 Epoch: 12
Loss 0.00309/0.00563 MAE 3.93031/4.72741

Fold 3 Epoch: 13
Loss 0.00316/0.00429 MAE 3.91007/4.63886

Fold 3 Epoch: 14
Loss 0.00315/0.00721 MAE 3.92436/6.64559

Fold 3 Epoch: 15
Loss 0.00361/0.00663 MAE 4.15742/6.57676

Fold 3 Epoch: 16
Loss 0.00410/0.00581 MAE 4.51585/5.81121

Fold 3 Epoch: 17
Loss 0.00341/0.01221 MAE 4.08997/7.85437

Fold 3 Epoch: 18
Loss 0.00451/0.00557 MAE 4.74087/5.32913

Fold 3 Epoch: 19
Loss 0.00360/0.00419 MAE 4.24454/4.55999


INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams



Fold 4 Epoch: 0
Loss 0.85392/0.00368 MAE 32.96611/4.24245

Fold 4 Epoch: 1
Loss 0.00256/0.00277 MAE 3.46177/3.51331

Fold 4 Epoch: 2
Loss 0.00221/0.00202 MAE 3.17338/2.95567

Fold 4 Epoch: 3
Loss 0.00214/0.00304 MAE 3.10563/3.88381

Fold 4 Epoch: 4
Loss 0.00219/0.00233 MAE 3.16203/3.24165

Fold 4 Epoch: 5
Loss 0.00242/0.00257 MAE 3.35008/3.49035

Fold 4 Epoch: 6
Loss 0.00221/0.00203 MAE 3.20184/3.08044

Fold 4 Epoch: 7
Loss 0.00224/0.00191 MAE 3.21450/2.89856

Fold 4 Epoch: 8
Loss 0.00233/0.00359 MAE 3.27101/4.44508

Fold 4 Epoch: 9
Loss 0.00273/0.00342 MAE 3.56527/4.12814

Fold 4 Epoch: 10
Loss 0.00281/0.00290 MAE 3.67255/3.80147

Fold 4 Epoch: 11
Loss 0.00312/0.00324 MAE 3.91060/4.08256

Fold 4 Epoch: 12
Loss 0.00271/0.00222 MAE 3.55698/3.34696

Fold 4 Epoch: 13
Loss 0.00263/0.00498 MAE 3.54320/5.23288

Fold 4 Epoch: 14
Loss 0.00311/0.00403 MAE 3.89002/4.00476

Fold 4 Epoch: 15
Loss 0.00251/0.00276 MAE 3.47477/3.81179

Fold 4 Epoch: 16
Loss 0.00334/0.00247 MAE 4.04915/3.55583

Fold 4 Epoch: 17
Loss 0.00271/0.00490 MAE 3.76235/5.47203

Fold 4 Epoch: 18
Loss 0.00329/0.00277 MAE 3.96554/3.80042

Fold 4 Epoch: 19
Loss 0.00273/0.00291 MAE 3.72141/4.05549


INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams



Fold 5 Epoch: 0
Loss 0.85670/0.00696 MAE 29.43666/4.68126

Fold 5 Epoch: 1
Loss 0.00806/0.02447 MAE 6.22143/12.01605

Fold 5 Epoch: 2
Loss 0.00842/0.00421 MAE 6.22863/4.50202

Fold 5 Epoch: 3
Loss 0.00348/0.00344 MAE 4.06411/4.23032

Fold 5 Epoch: 4
Loss 0.00327/0.00425 MAE 4.00236/4.06088

Fold 5 Epoch: 5
Loss 0.00315/0.00437 MAE 3.88867/4.45807

Fold 5 Epoch: 6
Loss 0.00306/0.00372 MAE 3.80572/3.98706

Fold 5 Epoch: 7
Loss 0.00300/0.00607 MAE 3.75447/5.70704

Fold 5 Epoch: 8
Loss 0.00292/0.00473 MAE 3.68646/4.21410

Fold 5 Epoch: 9
Loss 0.00291/0.00299 MAE 3.61322/3.81180

Fold 5 Epoch: 10
Loss 0.00281/0.00635 MAE 3.58025/5.52059

Fold 5 Epoch: 11
Loss 0.00317/0.00308 MAE 3.78247/3.53311

Fold 5 Epoch: 12
Loss 0.00280/0.00840 MAE 3.58892/4.92759

Fold 5 Epoch: 13
Loss 0.00343/0.00341 MAE 3.79564/3.84999

Fold 5 Epoch: 14
Loss 0.00303/0.00385 MAE 3.62843/3.90398

Fold 5 Epoch: 15
Loss 0.00297/0.00771 MAE 3.63470/5.68825

Fold 5 Epoch: 16
Loss 0.00326/0.00447 MAE 3.75003/4.07704

Fold 5 Epoch: 17
Loss 0.00298/0.00583 MAE 3.66024/4.84518

Fold 5 Epoch: 18
Loss 0.00341/0.01341 MAE 3.89222/6.48514

Fold 5 Epoch: 19
Loss 0.00414/0.00561 MAE 4.12554/4.13227


INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams



Fold 6 Epoch: 0
Loss 0.86576/0.00339 MAE 30.12522/3.75524

Fold 6 Epoch: 1
Loss 0.01023/0.01223 MAE 6.79863/7.76517

Fold 6 Epoch: 2
Loss 0.00999/0.01130 MAE 7.03156/8.91614

Fold 6 Epoch: 3
Loss 0.00465/0.00230 MAE 4.86728/3.18715

Fold 6 Epoch: 4
Loss 0.00305/0.00539 MAE 3.86714/5.73368

Fold 6 Epoch: 5
Loss 0.00382/0.00243 MAE 4.43198/3.19708

Fold 6 Epoch: 6
Loss 0.00313/0.00766 MAE 3.91390/6.50056

Fold 6 Epoch: 7
Loss 0.00475/0.01015 MAE 4.94451/7.25125

Fold 6 Epoch: 8
Loss 0.00412/0.00246 MAE 4.52522/3.28646

Fold 6 Epoch: 9
Loss 0.00320/0.00284 MAE 3.93136/3.65408

Fold 6 Epoch: 10
Loss 0.00341/0.00302 MAE 3.97897/3.36249

Fold 6 Epoch: 11
Loss 0.00318/0.00353 MAE 3.75167/4.01775

Fold 6 Epoch: 12
Loss 0.00298/0.00281 MAE 3.71133/3.68553

Fold 6 Epoch: 13
Loss 0.00345/0.00428 MAE 3.89888/4.79099

Fold 6 Epoch: 14
Loss 0.00347/0.00558 MAE 3.93133/5.30763

Fold 6 Epoch: 15
Loss 0.00317/0.00307 MAE 3.80316/3.69749

Fold 6 Epoch: 16
Loss 0.00333/0.00299 MAE 3.76026/3.53186

Fold 6 Epoch: 17
Loss 0.00305/0.00340 MAE 3.65101/4.14215

Fold 6 Epoch: 18
Loss 0.00285/0.00335 MAE 3.62495/3.77899

Fold 6 Epoch: 19
Loss 0.00361/0.00384 MAE 3.81460/4.27685

步骤6：多折预测集成

test_pred = np.zeros((test_img.shape[0], 8))

# 加载多折模型进行预测
for idx in range(6):
    model = make_model()

    layer_state_dict = paddle.load(f"model_{idx}.pdparams")
    model.set_state_dict(layer_state_dict)
    model.eval()
    test_pred += make_predict(model, test_loader) * 96

test_pred /= 6

INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams
INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams
INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams
INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams
INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams
INFO:paddle.utils.download:unique_endpoints {''}
INFO:paddle.utils.download:File /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams md5 checking...
INFO:paddle.utils.download:Found /home/aistudio/.cache/paddle/hapi/weights/resnet18.pdparams

idx = 42
xy = test_pred[idx, :].reshape(-1, 2)
plt.scatter(xy[:, 0], xy[:, 1], c='r')
plt.imshow(test_img[idx, 0, :, :], cmap='gray')

<matplotlib.image.AxesImage at 0x7f7e98a3fe50>



/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:425: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_min = np.asscalar(a_min.astype(scaled_dtype))
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:426: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
  a_max = np.asscalar(a_max.astype(scaled_dtype))

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-15QUzoo5-1646556404322)(output_22_2.png)]
