PPOCR文本检测+识别：电表读数和编号识别

在PPOCRLabel半自动标注的基础上，使用PPOCR的检测模型finetune，实现电表读数和编号的初步识别

AI Studio

4363人浏览 · 2022-01-30 19:41:23

AI Studio · 2022-01-30 19:41:23 发布

0 项目背景

在本系列项目中，我们尝试基于Paddle工具库实现一个OCR垂类场景。原始数据集是一系列电度表的照片，类型较多，需要完成电表的读数识别，对于有编号的电表，还要完成其编号的识别。

1 数据集简介

注：因保密授权原因，数据集尚未公开，待更新

首先，我们来简单看一下数据集的情况。总的来说，这个场景面临几个比较大的问题：

电表类型较多。相比之下，现有数据量（500张）可能不够。

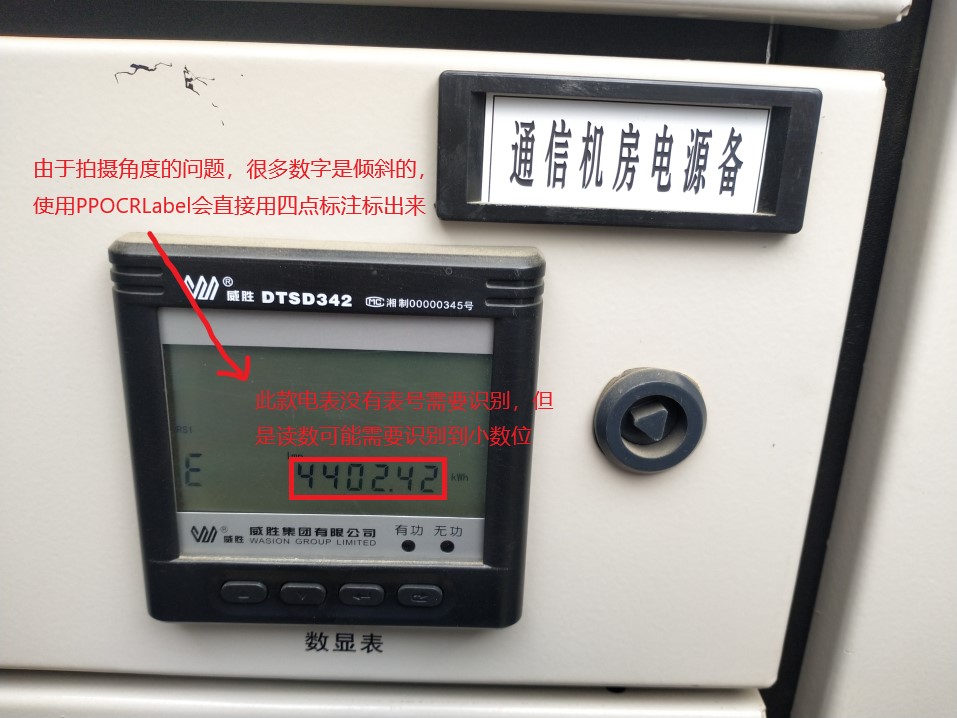

照片角度倾斜较厉害。这个比较好理解，有些电表可能不具备正面拍照条件，有不少图片是从下往上、甚至从左下往右上拍的。
反光严重。反光问题对定位目标框以及识别数字可能都会产生影响。

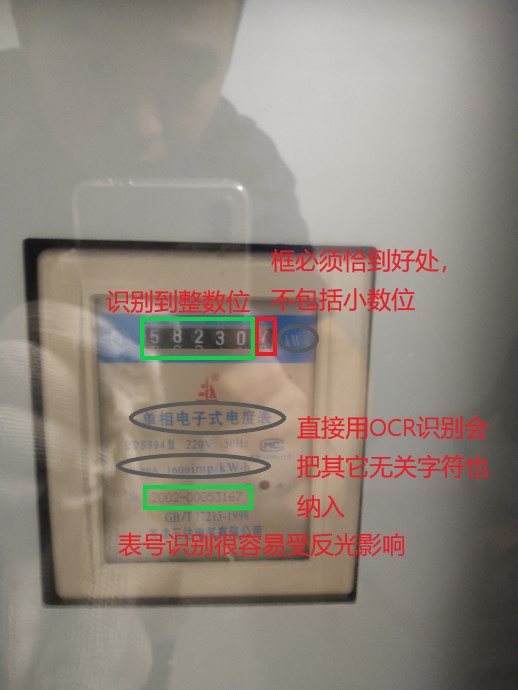

表号是点阵数字，不易识别。这个问题是标注的时候发现的，有的标注，PPOCRLabel自动识别的四点检测定位其实已经非常准了，但里面的数字识别效果却很离谱。
对检测框精准度要求非常高。电表显示读数的地方附近一般不是空白，往往有单位、字符或是小数点上的读数等，如果检测框没框准，就会把其它可识别项纳进来，如果也是数字，就算加了后处理也处理不掉。

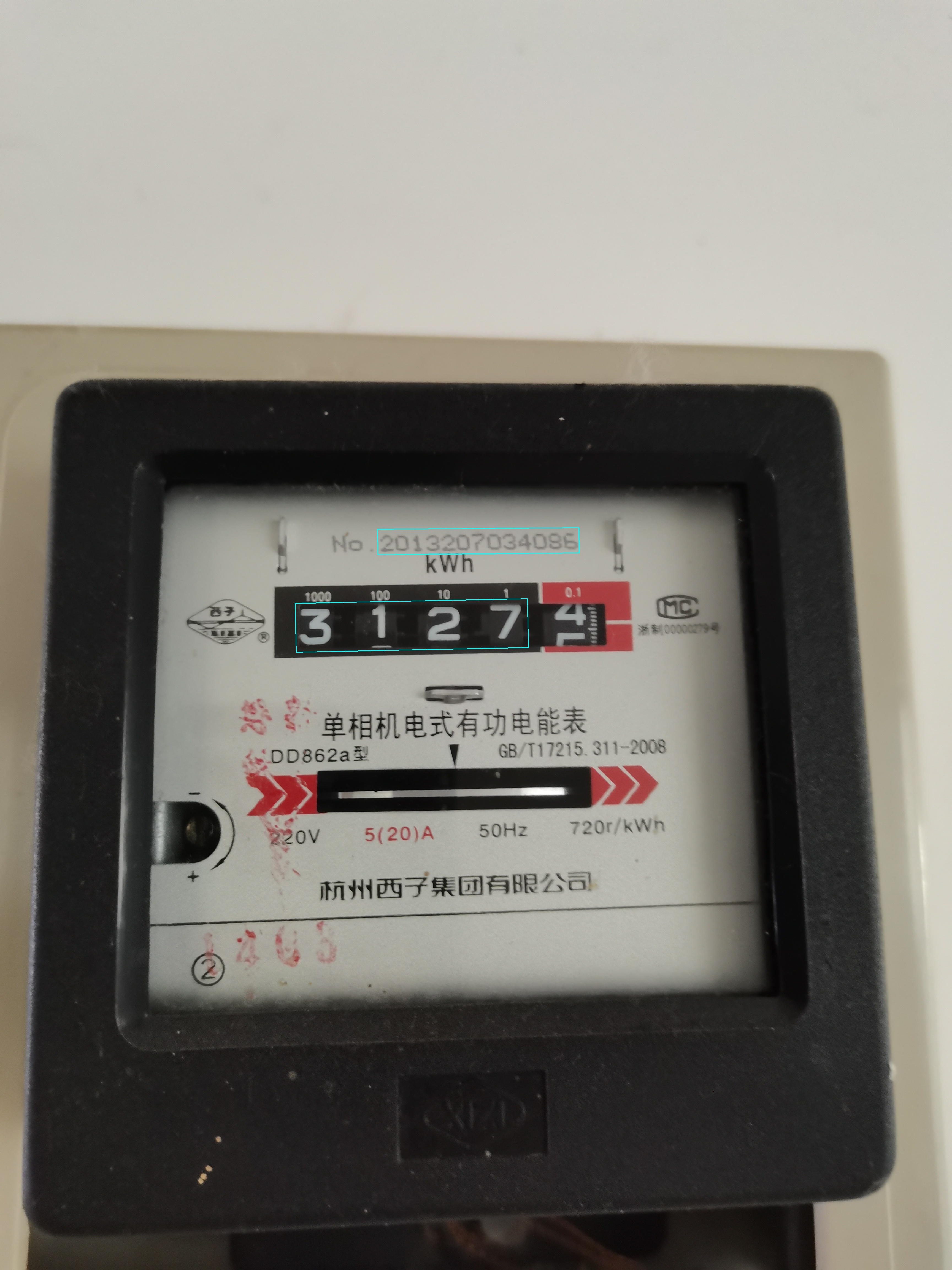

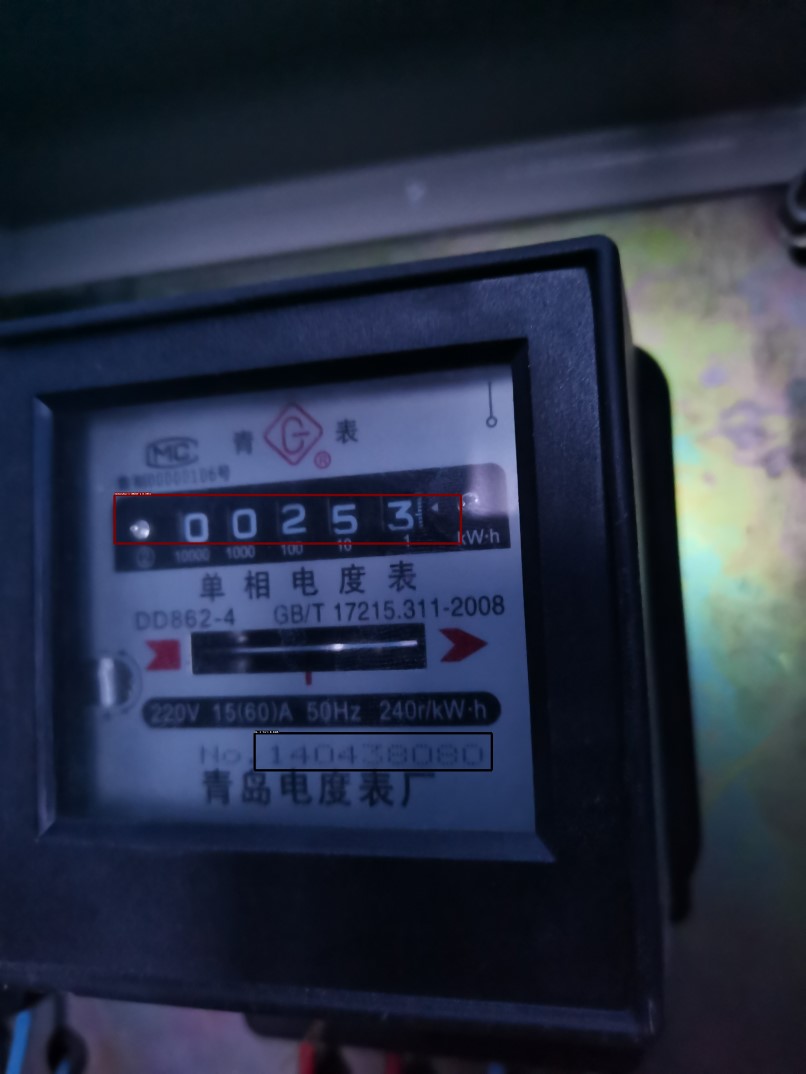

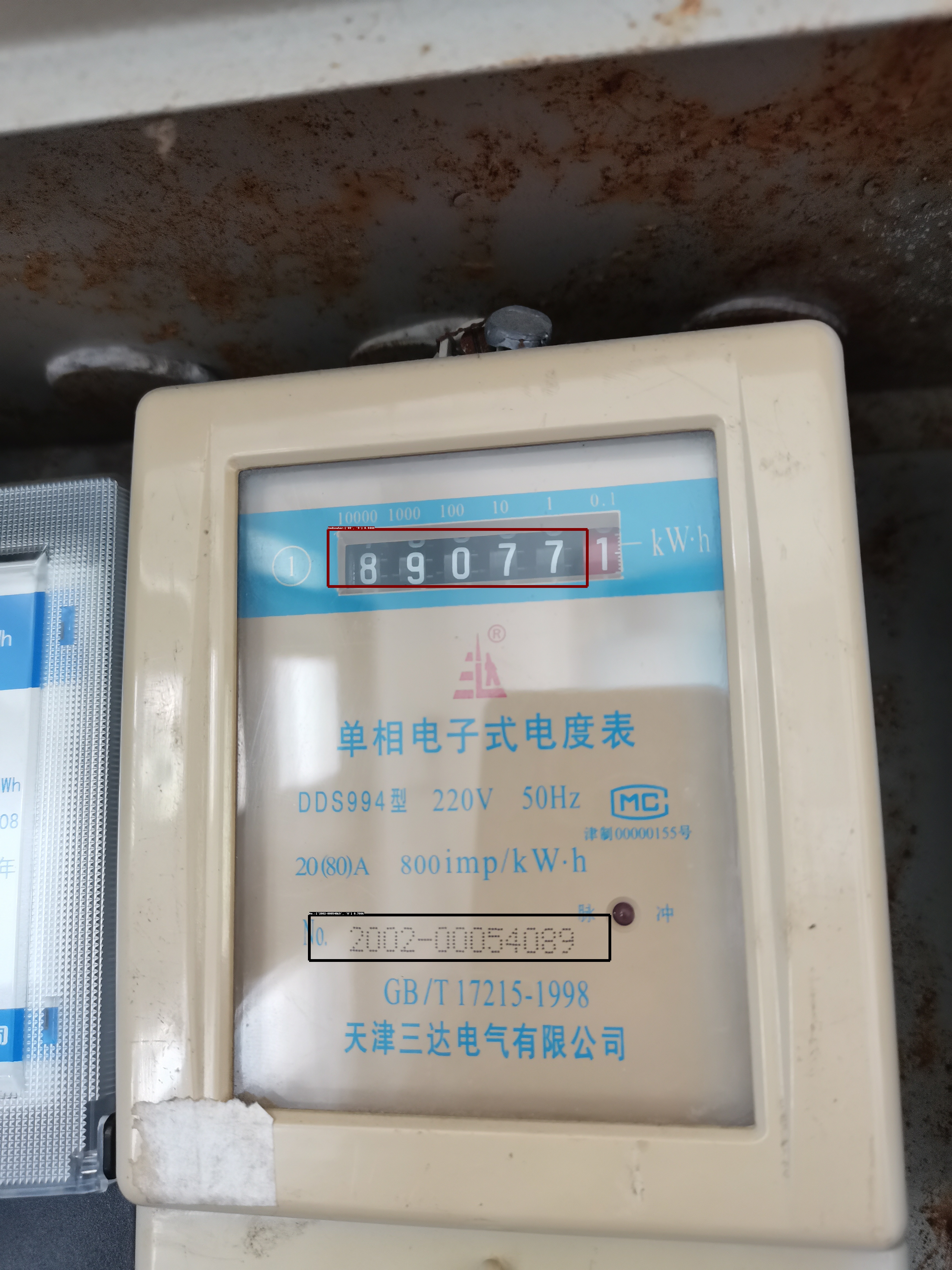

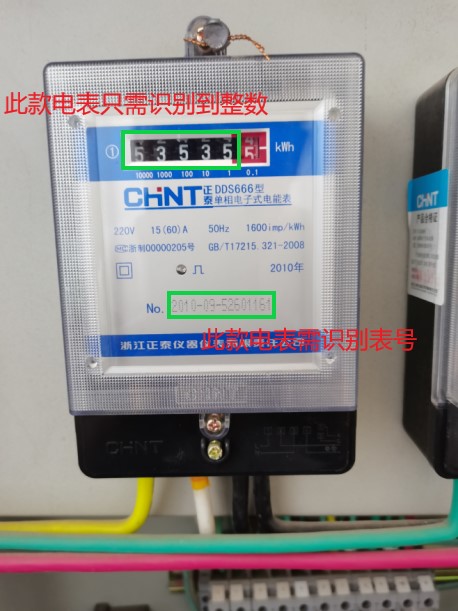

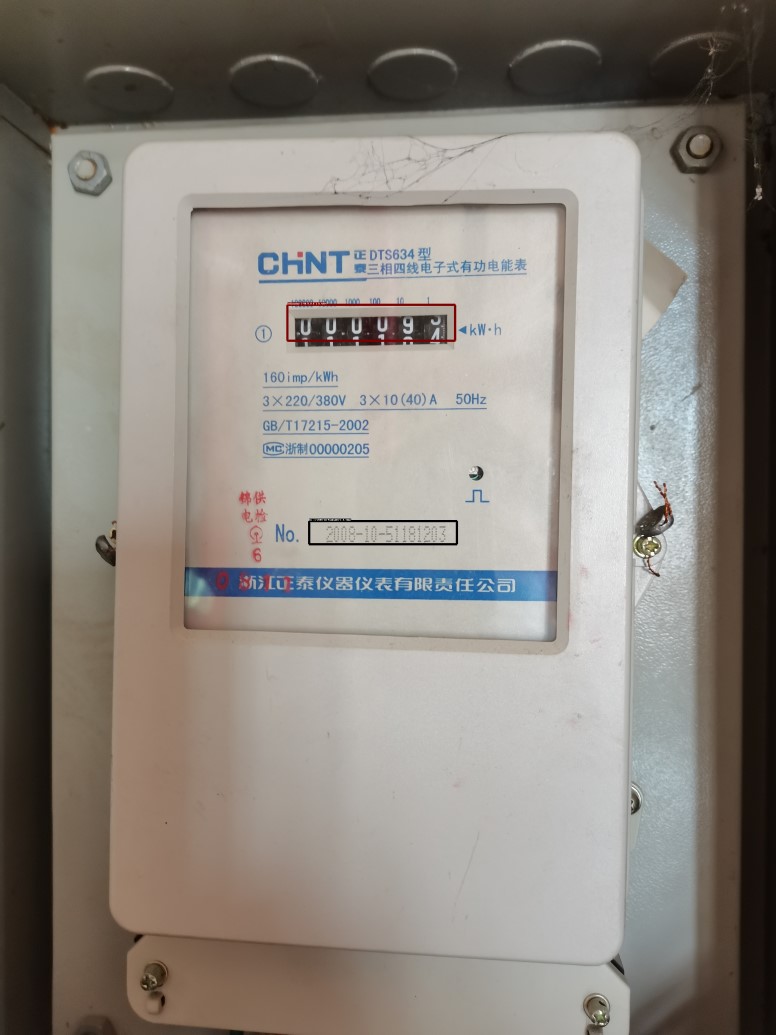

下面，读者可以通过这几张典型图片，初步感受下数据集的基本情况。

2 开发思路

鉴于上面提到的这些问题，该场景的开发几乎是从数据标注就开始陷入纠结。比如是标注一次（PPOCRLabel）还是标注两次（Labelimg标检测框+PPOCRLabel识别finetune）？比如是全程用PPOCR还是PPDET+PPOCR？

最后发现，标注似乎可以一次到位，就是使用PPOCRLabel进行标注，然后将OCR标注格式通过规则转换为目标检测的标注。其原因在于，如果单独对数据集进行目标检测标注，等于要标注两次（标注目标框+标注框内内容），相比之下，显然用PPOCRLabel标注为OCR数据集是性价比更高的选择。

对于开发路线，一开始考虑的是两条都试试看，之所以这么考虑，在最初的尝试中，基于PPOCR文本检测模型finetune的效果一直上不去，是因为对OCR模型目标框能否一步检测到位存在疑虑；又根据数据集的实际情况，也考虑过引入PaddleDetection的旋转目标检测模型。

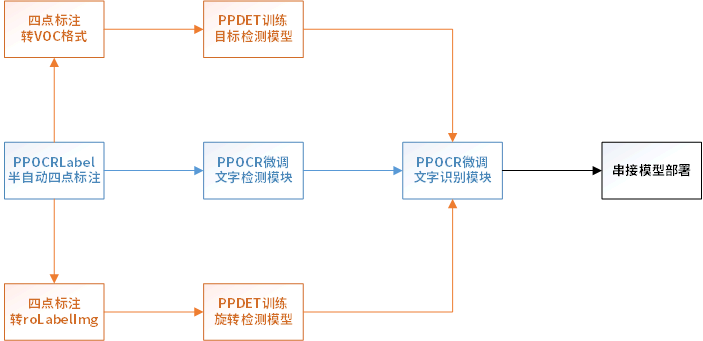

因此，一开始，项目的整体探索思路如下：

2.1 基于PaddleDetection的探索

在PP OCR+PPDET电表读数和编号识别项目中，我们跑通了第一条路线，基于标注矩形目标检测的电表识别。在这个部分，追求的是先搞定“有没有”的问题。

其预测效果如下：

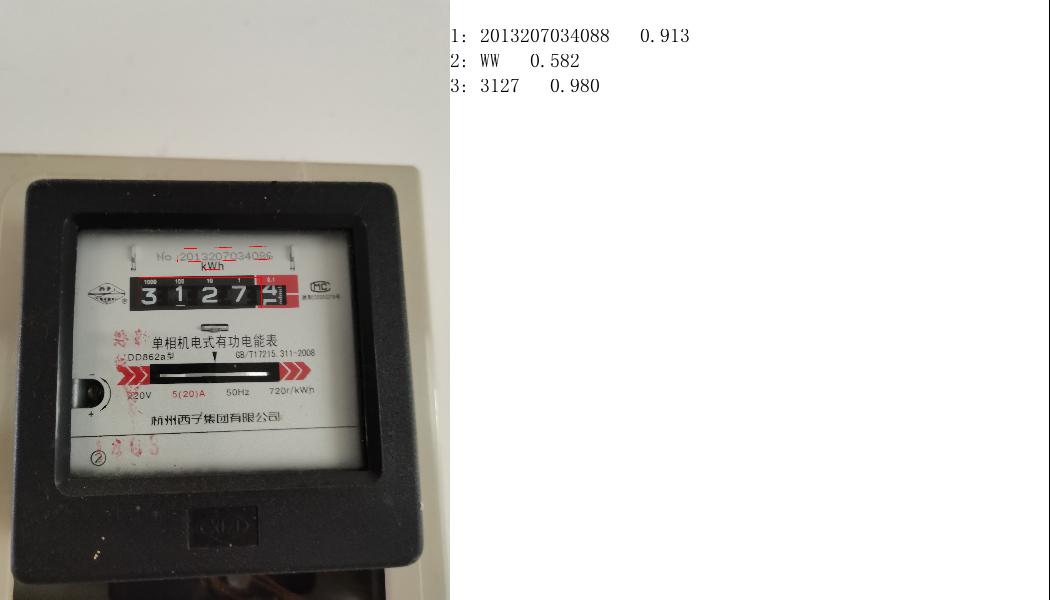

从上面的预测结果看来，我们发现直接用矩形框检测也存在问题。由于输入图片会存在歪斜，导致矩形框可能会框住多余的文字，进而影响文字识别效果。

2.2 基于PaddleOCR的全流程打通

现在，在本项目中，我们将实现全程基于PaddleOCR完成电表识别任务。

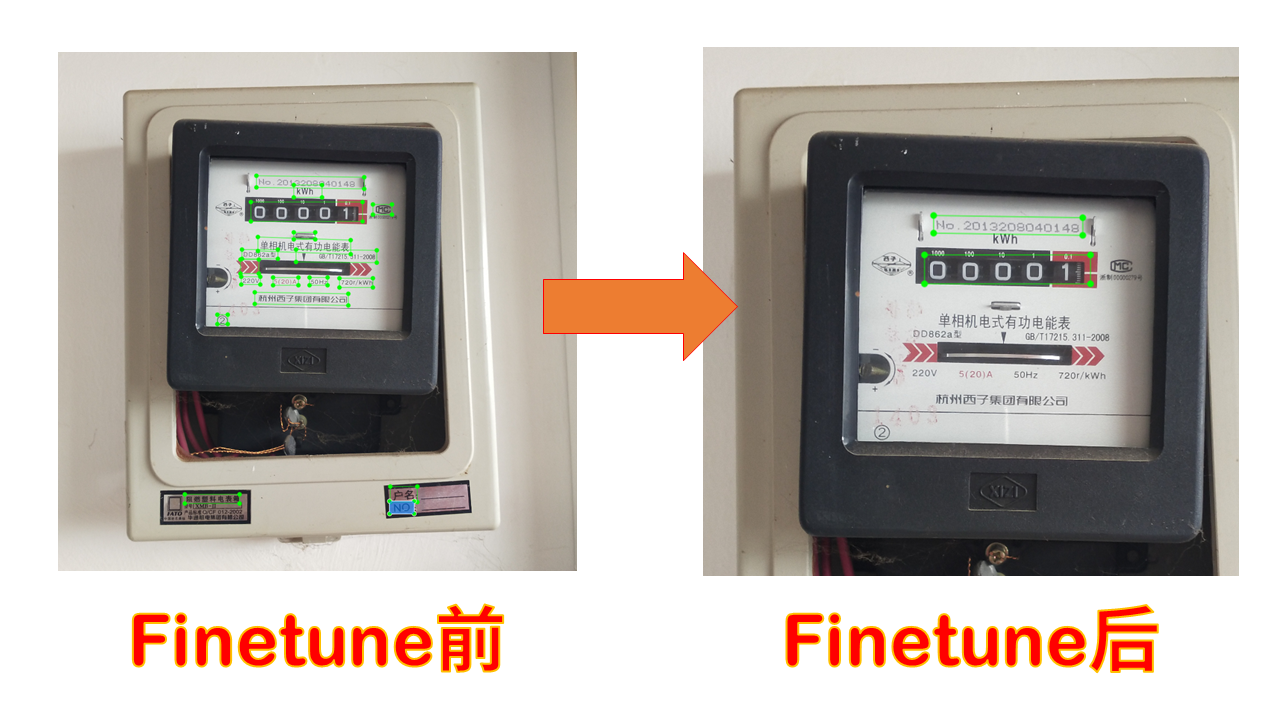

打通这条流程的前提是，通过“炼丹”，大幅提升了PaddleOCR文本检测模型在电表框框选预测的准确性，使其达到甚至超越了使用PaddleDetection基线的表现。

3 PaddleOCR的文本检测模型

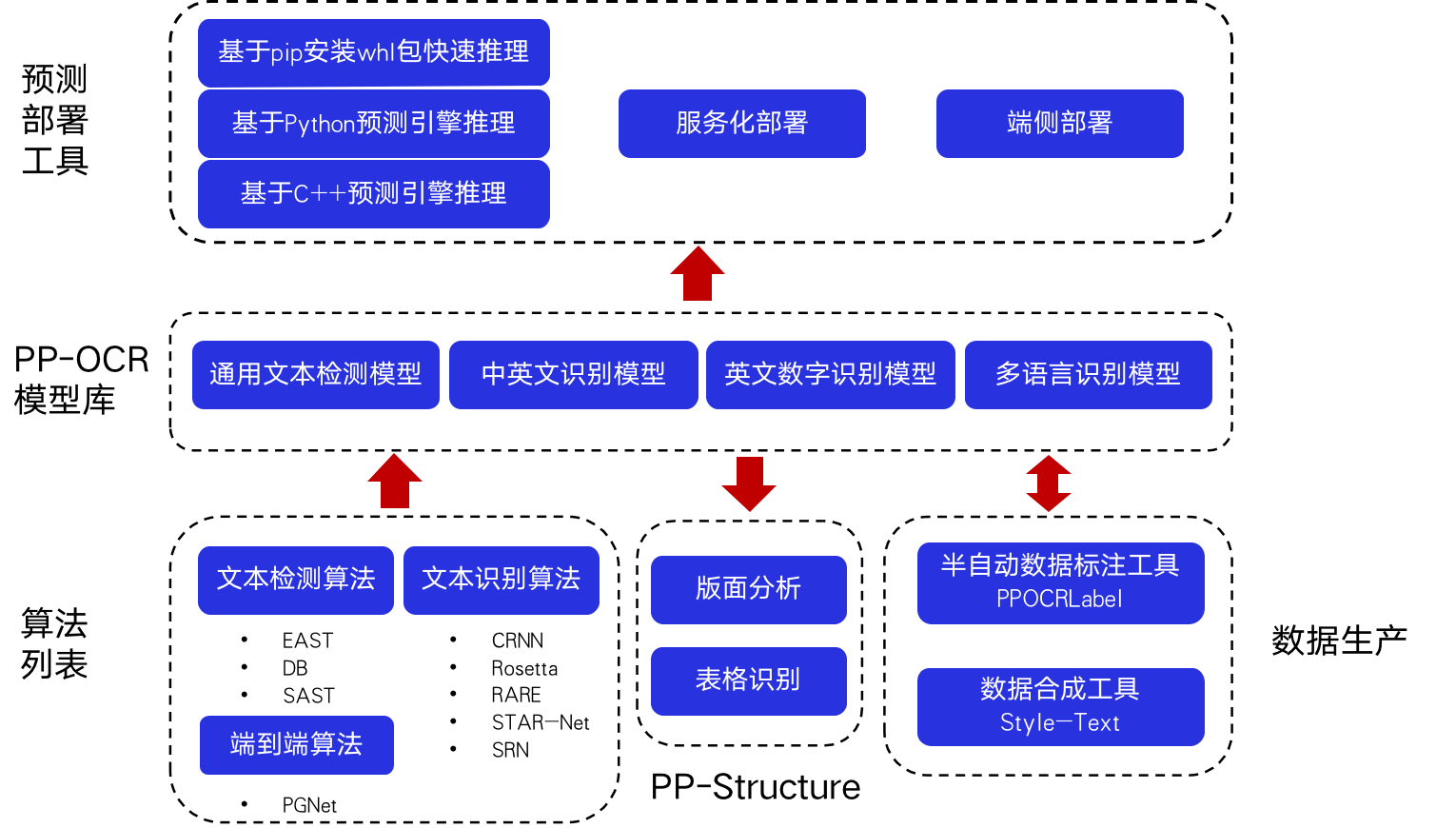

PaddleOCR包含丰富的文本检测、文本识别以及端到端算法。在PaddleOCR的全景图中，我们可以看到PaddleOCR支持的文本检测算法。

在标注数据的基础上，基于通用的文本检测算法finetune，我们就可以训练一个能将电表识别中的多余文本框自动去除，只留下目标的电表读数、编号的电表文本检测模型。

明确了目标，我们开始下一步的操作。

3.1 训练DB模型

为节省训练时间，这里提供了一个效果不错的预训练模型以及配置文件，读者可以选择基于预训练模型finetune或是从头训练。

在AIStudio训练，一定要注意几个重点！

用至尊版！因为原图分辨率太大，目标框相对其实很小，所以输入模型的size太小训练效果不好，而size设大自然需要更多显存
use_shared_memory设置为False
batch_size_per_card不能设置太大，因为输入size比较大

后面两个tricks如果不照做，训练会闪退。

在本文中，我们直接对configs/det/ch_PP-OCRv2/ch_PP-OCRv2_det_distill.yml文件内容进行下面的替换。

配置文件如下：

Global:
  debug: false
  use_gpu: true
  epoch_num: 1200
  log_smooth_window: 20
  print_batch_step: 10
  save_model_dir: ./output/det_dianbiao_v3
  save_epoch_step: 1200
  eval_batch_step:
  - 0
  - 100
  cal_metric_during_train: false
  pretrained_model: my_exps/student.pdparams
  checkpoints: null
  save_inference_dir: null
  use_visualdl: false
  infer_img: M2021/台安站公寓楼段值班房间.jpg
  save_res_path: ./output/det_db/predicts_db.txt
Architecture:
  model_type: det
  algorithm: DB
  Transform: null
  Backbone:
    name: MobileNetV3
    scale: 0.5
    model_name: large
    disable_se: true
  Neck:
    name: DBFPN
    out_channels: 96
  Head:
    name: DBHead
    k: 50
Loss:
  name: DBLoss
  balance_loss: true
  main_loss_type: DiceLoss
  alpha: 5
  beta: 10
  ohem_ratio: 3
Optimizer:
  name: Adam
  beta1: 0.9
  beta2: 0.999
  lr:
    name: Cosine
    learning_rate: 0.0001
    warmup_epoch: 2
  regularizer:
    name: L2
    factor: 0
PostProcess:
  name: DBPostProcess
  thresh: 0.3
  box_thresh: 0.6
  max_candidates: 1000
  unclip_ratio: 1.5
Metric:
  name: DetMetric
  main_indicator: hmean
Train:
  dataset:
    name: SimpleDataSet
    data_dir: ./
    label_file_list:
    - M2021/M2021_label_train.txt
    ratio_list:
    - 1.0
    transforms:
    - DecodeImage:
        img_mode: BGR
        channel_first: false
    - DetLabelEncode: null
    - CopyPaste: null
    - IaaAugment:
        augmenter_args:
        - type: Fliplr
          args:
            p: 0.5
        - type: Affine
          args:
            rotate:
            - -10
            - 10
        - type: Resize
          args:
            size:
            - 0.5
            - 3
    - EastRandomCropData:
        size:
        - 1600
        - 1600
        max_tries: 50
        keep_ratio: true
    - MakeBorderMap:
        shrink_ratio: 0.4
        thresh_min: 0.3
        thresh_max: 0.7
    - MakeShrinkMap:
        shrink_ratio: 0.4
        min_text_size: 8
    - NormalizeImage:
        scale: 1./255.
        mean:
        - 0.485
        - 0.456
        - 0.406
        std:
        - 0.229
        - 0.224
        - 0.225
        order: hwc
    - ToCHWImage: null
    - KeepKeys:
        keep_keys:
        - image
        - threshold_map
        - threshold_mask
        - shrink_map
        - shrink_mask
  loader:
    shuffle: true
    drop_last: false
    batch_size_per_card: 4 # 重点！
    num_workers: 4
    use_shared_memory: False # 重点！
Eval:
  dataset:
    name: SimpleDataSet
    data_dir: ./
    label_file_list:
    - M2021/M2021_label_eval.txt
    transforms:
    - DecodeImage:
        img_mode: BGR
        channel_first: false
    - DetLabelEncode: null
    - DetResizeForTest:
        limit_side_len: 1280
        limit_type: min
    - NormalizeImage:
        scale: 1./255.
        mean:
        - 0.485
        - 0.456
        - 0.406
        std:
        - 0.229
        - 0.224
        - 0.225
        order: hwc
    - ToCHWImage: null
    - KeepKeys:
        keep_keys:
        - image
        - shape
        - polys
        - ignore_tags
  loader:
    shuffle: false
    drop_last: false
    batch_size_per_card: 1
    num_workers: 2
    use_shared_memory: False # 重点！
profiler_options: null

!git clone https://gitee.com/paddlepaddle/PaddleOCR.git

# 解压数据集
!unzip -O GB2312  data/data117381/M2021.zip
!cp -r ../M2021 ./M2021

# 安装ppocr
!pip install fasttext==0.8.3
!pip install paddleocr --no-deps -r requirements.txt

%cd PaddleOCR/

/home/aistudio/PaddleOCR

# 提供的预训练模型和配置文件（供参考，直接用不该上面两个注意点，训练会报错）
!tar -xvf ../my_exps.tar -C ./

my_exps/
my_exps/student.pdparams
my_exps/det_dianbiao_size1600_copypaste/
my_exps/det_dianbiao_size1600_copypaste/best_accuracy.pdopt
my_exps/det_dianbiao_size1600_copypaste/config.yml
my_exps/det_dianbiao_size1600_copypaste/train.log
my_exps/det_dianbiao_size1600_copypaste/best_accuracy.pdparams
my_exps/det_dianbiao_size1600_copypaste/best_accuracy.states
my_exps/det_dianbiao_size1600/
my_exps/det_dianbiao_size1600/best_accuracy.pdopt
my_exps/det_dianbiao_size1600/config.yml
my_exps/det_dianbiao_size1600/latest.pdopt
my_exps/det_dianbiao_size1600/train.log
my_exps/det_dianbiao_size1600/latest.pdparams
my_exps/det_dianbiao_size1600/best_accuracy.pdparams
my_exps/det_dianbiao_size1600/latest.states
my_exps/det_dianbiao_size1600/best_accuracy.states

# 从头开始训练
!python tools/train.py -c configs/det/ch_PP-OCRv2/ch_PP-OCRv2_det_distill.yml
