PPSIG:AAGCN 动作识别

论文名称：Skeleton-Based Action Recognition with Multi-Stream Adaptive Graph Convolutional Networks

In this work, we propose a novel multi-stream attention-enhanced adaptive graph convolutional neural network (MS-AAGCN) for skeleton-based action recognition.

参考pytorch项目代码:https://github.com/lshiwjx/2s-AGCN/blob/master/model/aagcn.py

论文PDF已经放在项目中

1. 概要介绍

这篇论文做的任务是基于骨骼点进行动作识别，是在AGCN-2S论文之后同作者提出的（AGCN-2S可见我的ai studio项目），核心增加了Attention Module。

在AGCN中特征为[batch_size*people,channels,时间维度,空间维度]，那么在AGCN-2S中，特征经过 spatial adaptive graph convolutional layer（SAGCL）后，应该进行Temporal adaptive graph convolutional layer(TAGCL)，但是在这篇论文中我们在SAGCL和TAGCL中间加入Attention Module，那么什么是Attention Module,它可以分成3个部分Spatial Attention Module（SAM） ，Temporal attention module (TAM)， Channel attention module (CAM)。

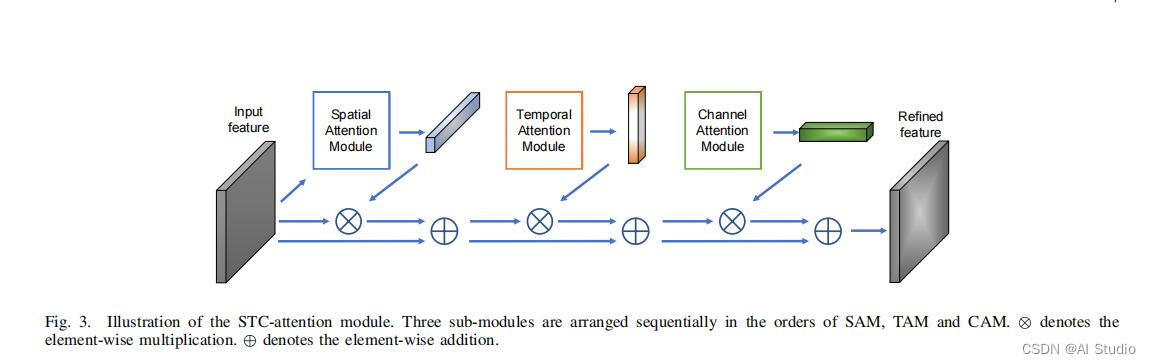

这是STC Attention Module 模块示意图：

#y.shape = [batch_size\*people,channels,时间维度T,空间维度V]

# num_jpts = A.shape[-1]
# ker_jpt = num_jpts - 1 if not num_jpts % 2 else num_jpts
# pad = (ker_jpt - 1) // 2
# rr=2
# self.conv_sa = nn.Conv1D(out_channels, 1, ker_jpt, padding=pad)
# self.conv_ta = nn.Conv1D(out_channels, 1, 9, padding=4)
# self.fc1c = nn.Linear(out_channels, out_channels // rr)
# self.fc2c = nn.Linear(out_channels // rr, out_channels)
if self.attention:
    # spatial attention
    se = y.mean(-2)  # N C V
    se1 = self.sigmoid(self.conv_sa(se))
    y = y * se1.unsqueeze(-2) + y

    # temporal attention
    se = y.mean(-1)
    se1 = self.sigmoid(self.conv_ta(se))
    y = y * se1.unsqueeze(-1) + y

    # channel attention
    se = y.mean(-1).mean(-1)
    se1 = self.relu(self.fc1c(se))
    se2 = self.sigmoid(self.fc2c(se1))
    y = y * se2.unsqueeze(-1).unsqueeze(-1) + y

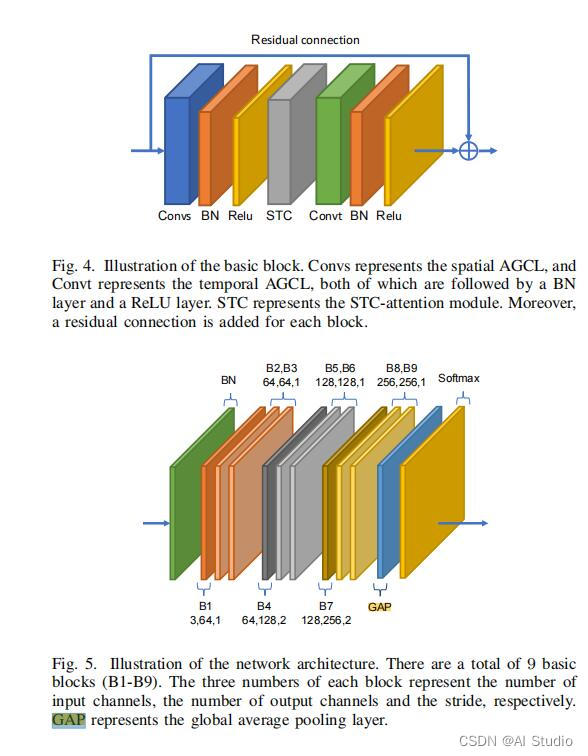

这是基本的网络模型架构：

2. AAGCN的公式

这个是AGCN-2S公式：

第一个子图(Bk）是从数据中学习到的全局图。它表示了更适合于动作识别任务的图的拓扑结构。它由基于人体结构的图的邻接矩阵（就是AGCN-2S中的Ak）初始化.Bk的元素在训练过程中与其他参数一起进行参数化和更新。对Bk的值没有约束，这意味着该图是根据训练数据完全学习的。通过这种数据驱动的方法，该模型可以学习完全针对识别任务的图。Bk对于每一层都是独一无二的，因此对于不同层中包含的不同语义级别更加个性化。

第二个子图(Ck)是单个图，它为每个样本学习唯一的拓扑。

3. 数据集介绍：

依旧采用fsd-10花样滑冰数据集

维度符号表示	维度值大小	维度含义	补充说明
N	样本数	代表N个样本	无
C	3	分别代表每个关节点的x,y坐标和置信度	每个x，y均被放缩至-1到1之间
T	1000	代表动作的持续时间长度，共有1000帧	有的动作的实际长度可能超过1000，于是我们就抽取其中1000帧，代码见autopadding
V	25	代表25个关节点	具体关节点的含义可看下方的骨架示例图
M	1	代表1个运动员个数	无

骨架示例图（注意8号索引关键点为人体中心）：

4. 代码部分

# 导包
import paddle
import paddle.nn as nn
import paddle.nn.functional as F
import numpy as np
from weight_init import weight_init_

# !unzip 2s-AGCN-paddle-main.zip

4.1 模型组网架构(Backbone部分)

4.1.1 得到A_k这个邻接矩阵，这个邻接矩阵记录人体骨骼点连接信息，然后分成3个子集

由于处理方法和ST-GCN一模一样，建议看我的PPSIG：Paddlesports ST-GCN动作识别
精彩分步可视化讲解。

def zero(x):
    return 0


def iden(x):
    return x


def einsum(x, A):
    """paddle.einsum will be implemented in release/2.2.
    self.kernel_size = 3
    x.shape = (n, self.kernel_size, (kc // self.kernel_size) ==out_channels, t, v)
    """
    x = x.transpose((0, 2, 3, 1, 4))
    n, c, t, k, v = x.shape
    k2, v2, w = A.shape
    assert (k == k2 and v == v2), "Args of einsum not match!"
    x = x.reshape((n, c, t, k * v))
    A = A.reshape((k * v, w))
    y = paddle.matmul(x, A)
    return y


def get_hop_distance(num_node, edge, max_hop=1):
    A = np.zeros((num_node, num_node))
    for i, j in edge:
        A[j, i] = 1
        A[i, j] = 1

    # compute hop steps
    hop_dis = np.zeros((num_node, num_node)) + np.inf
    transfer_mat = [np.linalg.matrix_power(A, d) for d in range(max_hop + 1)]
    arrive_mat = (np.stack(transfer_mat) > 0)
    for d in range(max_hop, -1, -1):
        hop_dis[arrive_mat[d]] = d
    return hop_dis


def normalize_digraph(A):
    Dl = np.sum(A, 0)
    num_node = A.shape[0]
    Dn = np.zeros((num_node, num_node))
    for i in range(num_node):
        if Dl[i] > 0:
            Dn[i, i] = Dl[i]**(-1)
    AD = np.dot(A, Dn)
    return AD


class Graph():
    def __init__(self,
                 layout='openpose',
                 strategy='uniform',
                 max_hop=1,
                 dilation=1):
        self.max_hop = max_hop
        self.dilation = dilation

        self.get_edge(layout)
        self.hop_dis = get_hop_distance(self.num_node,
                                        self.edge,
                                        max_hop=max_hop)
        self.get_adjacency(strategy)

    def __str__(self):
        return self.A

    def get_edge(self, layout):
        # edge is a list of [child, parent] paris

        if layout == 'fsd10':
            self.num_node = 25
            self_link = [(i, i) for i in range(self.num_node)]
            neighbor_link = [(1, 8), (0, 1), (15, 0), (17, 15), (16, 0),
                             (18, 16), (5, 1), (6, 5), (7, 6), (2, 1), (3, 2),
                             (4, 3), (9, 8), (10, 9), (11, 10), (24, 11),
                             (22, 11), (23, 22), (12, 8), (13, 12), (14, 13),
                             (21, 14), (19, 14), (20, 19)]
            self.edge = self_link + neighbor_link
            self.center = 8
        elif layout == 'ntu-rgb+d':
            self.num_node = 25
            self_link = [(i, i) for i in range(self.num_node)]
            neighbor_1base = [(1, 2), (2, 21), (3, 21), (4, 3), (5, 21), (6, 5),
                              (7, 6), (8, 7), (9, 21), (10, 9), (11, 10),
                              (12, 11), (13, 1), (14, 13), (15, 14), (16, 15),
                              (17, 1), (18, 17), (19, 18), (20, 19), (22, 23),
                              (23, 8), (24, 25), (25, 12)]
            neighbor_link = [(i - 1, j - 1) for (i, j) in neighbor_1base]
            self.edge = self_link + neighbor_link
            self.center = 21 - 1
        else:
            raise ValueError("Do Not Exist This Layout.")

    def get_adjacency(self, strategy):
        valid_hop = range(0, self.max_hop + 1, self.dilation)
        adjacency = np.zeros((self.num_node, self.num_node))
        for hop in valid_hop:
            adjacency[self.hop_dis == hop] = 1
        normalize_adjacency = normalize_digraph(adjacency)

        if strategy == 'spatial':
            A = []
            for hop in valid_hop:
                a_root = np.zeros((self.num_node, self.num_node))
                a_close = np.zeros((self.num_node, self.num_node))
                a_further = np.zeros((self.num_node, self.num_node))
                for i in range(self.num_node):
                    for j in range(self.num_node):
                        if self.hop_dis[j, i] == hop:
                            if self.hop_dis[j, self.center] == self.hop_dis[
                                    i, self.center]:
                                a_root[j, i] = normalize_adjacency[j, i]
                            elif self.hop_dis[j, self.center] > self.hop_dis[
                                    i, self.center]:
                                a_close[j, i] = normalize_adjacency[j, i]
                            else:
                                a_further[j, i] = normalize_adjacency[j, i]
                if hop == 0:
                    A.append(a_root)
                else:
                    A.append(a_root + a_close)
                    A.append(a_further)
            A = np.stack(A)
            self.A = A
        else:
            raise ValueError("Do Not Exist This Strategy")

import paddle as pp
import paddle.nn as nn
import numpy as np

class unit_tcn(nn.Layer):
    def __init__(self, in_channels, out_channels, kernel_size=9, stride=1):
        super(unit_tcn, self).__init__()
        pad = int((kernel_size - 1) / 2)
        self.conv = nn.Conv2D(in_channels, out_channels, kernel_size=(kernel_size, 1), padding=(pad, 0), stride=(stride, 1))

        self.bn = nn.BatchNorm2D(out_channels)
        self.relu = nn.ReLU()

    def forward(self, x):
        " input size : (N*M, C, T, V)"
        x = self.bn(self.conv(x))
        return x



class unit_gcn(nn.Layer):
    '''
    这里是spatial adaptive graph convolutional layer加上Attention Module
    '''
    def __init__(self, in_channels, out_channels, A, coff_embedding=4, num_subset=3):
        super(unit_gcn, self).__init__()
        inter_channels = out_channels // coff_embedding
        self.inter_c = inter_channels
        alpha = self.create_parameter([1],default_initializer=nn.initializer.Constant(1e-4))
        self.add_parameter("alpha",alpha)
        # paddle.nn.initializer.Constant(val
        # self.alpha = nn.Parameter(paddle.zeros(1))
        pa_param = paddle.ParamAttr(initializer=paddle.nn.initializer.Assign(A.astype(np.float32)))
        self.PA = paddle.create_parameter(shape=A.shape,
                                              dtype='float32',
                                              attr=pa_param)
        self.num_subset = num_subset
        self.sigmoid = nn.Sigmoid()
        self.conv_a = nn.LayerList()
        self.conv_b = nn.LayerList()
        self.conv_d = nn.LayerList()
        # print("in_channels",in_channels)
        for i in range(self.num_subset):
            self.conv_a.append(nn.Conv2D(in_channels, inter_channels, 1))
            self.conv_b.append(nn.Conv2D(in_channels, inter_channels, 1))
            self.conv_d.append(nn.Conv2D(in_channels, out_channels, 1))

        if in_channels != out_channels:
            self.down = nn.Sequential(
                nn.Conv2D(in_channels, out_channels, 1),
                nn.BatchNorm2D(out_channels)
            )
        else:
            self.down = lambda x: x


        self.bn = nn.BatchNorm2D(out_channels)
        self.soft = nn.Softmax(-2)
        self.relu = nn.ReLU()
        num_jpts = A.shape[-1]
        ker_jpt = num_jpts - 1 if not num_jpts % 2 else num_jpts
        pad = (ker_jpt - 1) // 2
        rr=2
        self.conv_sa = nn.Conv1D(out_channels, 1, ker_jpt, padding=pad)
        self.conv_ta = nn.Conv1D(out_channels, 1, 9, padding=4)
        self.fc1c = nn.Linear(out_channels, out_channels // rr)
        self.fc2c = nn.Linear(out_channels // rr, out_channels)
        self.attention = True

    def forward(self, x):
        N, C, T, V = x.shape
        A = self.PA

        y = None
        for i in range(self.num_subset):
            # print(i)
            m = self.conv_a[i](x)
            A1 = pp.transpose(m, perm=[0, 3, 1, 2]).reshape([N, V, self.inter_c * T])
            A2 = self.conv_b[i](x).reshape([N, self.inter_c * T, V])
            A1 = self.soft(pp.matmul(A1, A2) / A1.shape[-1])
            A1 = A1* self.sigmoid(self.alpha) + A[i]
            A2 = x.reshape([N, C * T, V])
            z = self.conv_d[i](pp.matmul(A2, A1).reshape([N, C, T, V]))
            y = z + y if y is not None else z

        y = self.bn(y)
        y += self.down(x)
        y = self.relu(y)
        if self.attention:
            # spatial attention
            se = y.mean(-2)  # N C V
            se1 = self.sigmoid(self.conv_sa(se))
            y = y * se1.unsqueeze(-2) + y
            # a1 = se1.unsqueeze(-2)

            # temporal attention
            se = y.mean(-1)
            se1 = self.sigmoid(self.conv_ta(se))
            y = y * se1.unsqueeze(-1) + y
            # a2 = se1.unsqueeze(-1)

            # channel attention
            se = y.mean(-1).mean(-1)
            se1 = self.relu(self.fc1c(se))
            se2 = self.sigmoid(self.fc2c(se1))
            y = y * se2.unsqueeze(-1).unsqueeze(-1) + y
            # a3 = se2.unsqueeze(-1).unsqueeze(-1)

            # unified attention
            # y = y * self.Attention + y
            # y = y + y * ((a2 + a3) / 2)
            # y = self.bn(y)
        return y




class TCN_GCN_unit(nn.Layer):
    def __init__(self, in_channels, out_channels, A, stride=1, residual=True):
        super(TCN_GCN_unit, self).__init__()
        self.gcn1 = unit_gcn(in_channels, out_channels, A)
        self.tcn1 = unit_tcn(out_channels, out_channels, stride=stride)
        self.relu = nn.ReLU()
        if not residual:
            self.residual = lambda x: 0

        elif (in_channels == out_channels) and (stride == 1):
            self.residual = lambda x: x

        else:
            self.residual = unit_tcn(in_channels, out_channels, kernel_size=1, stride=stride)

    def forward(self, x):
        x = self.tcn1(self.gcn1(x)) + self.residual(x)
        return self.relu(x)


class AGCN(nn.Layer):
    def __init__(self, num_class=30, num_point=25, num_person=1, graph_args=None, in_channels=2):
        super(AGCN, self).__init__()
        self.graph = Graph(layout='fsd10',
                 strategy='spatial')
        A = self.graph.A
        self.data_bn = nn.BatchNorm1D(num_person * in_channels * num_point)

        self.l1 = TCN_GCN_unit(in_channels, 64, A, residual=False)
        self.l2 = TCN_GCN_unit(64, 64, A)
        self.l3 = TCN_GCN_unit(64, 64, A)
        self.l4 = TCN_GCN_unit(64, 64, A)
        self.l5 = TCN_GCN_unit(64, 128, A, stride=2)
        self.l6 = TCN_GCN_unit(128, 128, A)
        self.l7 = TCN_GCN_unit(128, 128, A)
        self.l8 = TCN_GCN_unit(128, 256, A, stride=2)
        self.l9 = TCN_GCN_unit(256, 256, A)
        self.l10 = TCN_GCN_unit(256, 256, A)


        self.pool = nn.AdaptiveAvgPool2D(output_size=(1, 1))
        self.fc = nn.Linear(256, num_class)

    def forward(self, x):
        N, C, T, V, M = x.shape

        x = x.transpose([0, 4, 3, 1, 2]).reshape_([N, M * V * C, T])
        x = self.data_bn(x)
        x = x.reshape_([N, M, V, C, T]).transpose([0, 1, 3, 4, 2]).reshape_([N * M, C, T, V])

        x = self.l1(x)
        x = self.l2(x)
        x = self.l3(x)
        x = self.l4(x)
        x = self.l5(x)
        x = self.l6(x)
        x = self.l7(x)
        x = self.l8(x)
        x = self.l9(x)
        x = self.l10(x)

        x = self.pool(x)
        # N*M,C,T,V
        # c_new = x.shape[1]
        # x = x.reshape([N, M, c_new, -1])
        # x = x.mean(3).mean(1)

        # return self.fc(x)
        return x

import paddle
x = paddle.randn([16,2,350,25,1])
AGCN()(x).shape

W0815 18:25:47.193257  3656 gpu_resources.cc:61] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1
W0815 18:25:47.197376  3656 gpu_resources.cc:91] device: 0, cuDNN Version: 7.6.
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/nn/layer/norm.py:654: UserWarning: When training, we now always track global mean and variance.
  "When training, we now always track global mean and variance.")





[16, 256, 1, 1]

4.2 模型组网架构(Head部分)

class STGCNHead(nn.Layer):
    """
    Head for ST-GCN model.
    Args:
        in_channels: int, input feature channels. Default: 256.
        num_classes: int, number classes. Default: 10.
    """
    def __init__(self, in_channels=256, num_classes=10, **kwargs):
        super().__init__()
        self.fcn = nn.Conv2D(in_channels=in_channels,
                             out_channels=num_classes,
                             kernel_size=1)

    def init_weights(self):
        """Initiate the parameters.
        """
        for layer in self.sublayers():
            if isinstance(layer, nn.Conv2D):
                weight_init_(layer, 'Normal', std=0.02)

    def forward(self, x):
        """Define how the head is going to run.
        """
        x = self.fcn(x)
        x = paddle.reshape_(x, (x.shape[0], -1))  # N,C,1,1 --> N,C

        return x

4.3 模型组网架构(framework部分)

class AGCN_framework(nn.Layer):
    def __init__(self,num_classes = 30):
        super().__init__()
        self.backbone = AGCN()
        self.head = STGCNHead(num_classes = num_classes)
    def forward(self,data):
        feature = self.backbone(data)
        cls_score = self.head(feature)
        return cls_score

x = paddle.randn([16,2,350,25,1])
AGCN_framework()(x).shape

[16, 30]

4.5 数据Dataset预处理

import numpy as np
np.load("/home/aistudio/data/data104925/train_data.npy")[0].shape

(3, 2500, 25, 1)

import numpy as np
class AutoPadding(object):
    """
    Sample or Padding frame skeleton feature.
    Args:
        window_size: int, temporal size of skeleton feature.
        random_pad: bool, whether do random padding when frame length < window size. Default: False.
    """

    def __init__(self, window_size, random_pad=False):
        self.window_size = window_size
        self.random_pad = random_pad

    def get_frame_num(self, data):
        C, T, V, M = data.shape
        for i in range(T - 1, -1, -1):
            tmp = np.sum(data[:, i, :, :])
            if tmp > 0:
                T = i + 1
                break
        return T

    def __call__(self, results):
        # data = results['data']
        data = results

        C, T, V, M = data.shape
        T = self.get_frame_num(data)
        if T == self.window_size:
            data_pad = data[:, :self.window_size, :, :]
        elif T < self.window_size:
            begin = random.randint(0, self.window_size -
                                   T) if self.random_pad else 0
            data_pad = np.zeros((C, self.window_size, V, M))
            data_pad[:, begin:begin + T, :, :] = data[:, :T, :, :]
        else:
            if self.random_pad:
                index = np.random.choice(T, self.window_size,
                                         replace=False).astype('int64')
            else:
                index = np.linspace(0, T-1, self.window_size).astype("int64")
            data_pad = data[:, index, :, :]

        # results['data'] = data_pad
        # return results
        return data_pad

label = np.load("/home/aistudio/data/data104925/train_label.npy")
print(label.shape)
#查看全部label分布
with open("preds.txt","w") as f:
    for i in label:
        f.write(str(int(i))+"\n")

(2922,)

#每7个取一个当验证集
train_index = []
valid_index= []
for i in range(2922):
    if i%7 !=1:
        train_index.append(i)
    else:
        valid_index.append(i)
train_index =np.array(train_index).astype("int64")
valid_index = np.array(valid_index).astype("int64")

'''
来自：https://github.com/PaddlePaddle/PaddleVideo/blob/2f10ee26e232b83809ac4f11ac76b30fa262a86e/paddlevideo/loader/pipelines/skeleton_pipeline.py
默认是使用joint模式就是使用关节坐标，如果只设置bone = True,那么就是使用骨骼长度与方向
'''
class SketeonModalityTransform(object):
    """
    Sketeon Crop Sampler.
    Args:
        crop_model: str, crop model, support: ['center'].
        p_interval: list, crop len
        window_size: int, sample windows size.
    """

    def __init__(self, bone = False, motion = False, joint=True, graph='fsd10'):

        self.joint = joint
        self.bone = bone
        self.motion = motion
        self.graph = graph
        if self.graph == "ntu_rgb_d":
            self.bone_pairs = ((1, 2), (2, 21), (3, 21), (4, 3), (5, 21),
                               (6, 5), (7, 6), (8, 7), (9, 21), (10, 9),
                               (11, 10), (12, 11), (13, 1), (14, 13), (15, 14),
                               (16, 15), (17, 1), (18, 17), (19, 18), (20, 19),
                               (22, 23), (21, 21), (23, 8), (24, 25), (25, 12))
        elif self.graph == 'fsd10':
            self.num_node = 25
            self.bone_pairs  = [(1, 8), (0, 1), (15, 0), (17, 15), (16, 0),
                             (18, 16), (5, 1), (6, 5), (7, 6), (2, 1), (3, 2),
                             (4, 3), (9, 8), (10, 9), (11, 10), (24, 11),
                             (22, 11), (23, 22), (12, 8), (13, 12), (14, 13),
                             (21, 14), (19, 14), (20, 19)]


        else:
            raise NotImplementedError

    def __call__(self, results):
        if self.joint:
            return results
        data_numpy = results
        if self.bone:
            bone_data_numpy = np.zeros_like(data_numpy)
            for v1, v2 in self.bone_pairs:
                bone_data_numpy[:, :, v1 -
                                1] = data_numpy[:, :, v1 -
                                                1] - data_numpy[:, :, v2 - 1]
            data_numpy = bone_data_numpy
        if self.motion:
            data_numpy[:, :-1] = data_numpy[:, 1:] - data_numpy[:, :-1]
            data_numpy[:, -1] = 0
        results = data_numpy
        return results

import paddle
import numpy as np
import paddle.nn.functional as F
from visualdl import LogWriter
from tqdm import tqdm
log_writer = LogWriter("./log/gnet")
class Dataset(paddle.io.Dataset):
    def __init__(self,is_train = True):
        data = np.load("/home/aistudio/data/data104925/train_data.npy").astype("float32") #[2922, 3, 2500, 25, 1]
        label = np.load("/home/aistudio/data/data104925/train_label.npy")

        split_index = 2400
        self.autopad = AutoPadding(window_size= 1000)
        self.train_data = data[train_index,:,:,:,:]
        self.valid_data = data[valid_index,:,:,:,:]
        self.train_label = label[train_index]
        self.valid_label = label[valid_index]
        self.is_train = is_train
        if self.is_train == True:
            self.size = len(self.train_data)
        else:
            self.size = len(self.valid_data)
        self.sketeon = SketeonModalityTransform(bone = False, motion = False, joint=True)


    def __getitem__(self, index):
        if self.is_train == True:
            one_row = self.train_data[index]
            one_label = self.train_label[index]
        else:
            one_row = self.valid_data[index]
            one_label = self.valid_label[index]
        one_row = one_row[:2, :, :, :]
        one_row = self.autopad(one_row).astype("float32")
        one_row = self.sketeon(one_row)
        return one_row,one_label

    def __len__(self):
        return self.size

print(len(Dataset()))

2504

for i in Dataset():
    print(i[0].dtype,i[1])
    break

float32 27

BATCH_SIZE =16

train_dataset = Dataset()
data_loader = paddle.io.DataLoader(train_dataset,batch_size=BATCH_SIZE,shuffle =True,drop_last=True)

for data in data_loader:
    print(data[0].shape,data[1].shape)
    break

[16, 2, 1000, 25, 1] [16]

def valid_accurary(valid_loader,classifer_net):
     with paddle.set_grad_enabled(False):
        acc_all = 0
        num = 0
        for one in valid_loader:
            img_data,cls=one
            # print()
            out = classifer_net(img_data)
            # print(out.shape)
            # out = nn.Softmax()(out)
            # out = paddle.multinomial(out, num_samples=1, replacement=False, name=None)
            acc = paddle.metric.accuracy(out,cls.unsqueeze(1))
            acc_all+=acc.numpy()[0]
            num+=1
            # if out[0] == cls:
                # right +=1
        # print("right",right)
        return acc_all/num

4.6 测试验证集准确率（我自己joint模式的参数文件）

我自己训练的准确率为0.585

valid_dataset = Dataset(is_train=False)
valid_loader = paddle.io.DataLoader(valid_dataset,batch_size=16,shuffle =True,drop_last=True)


agcn = AGCN_framework()
# agcn.set_state_dict(paddle.load("AGCN_fsd.pdparams"))
agcn.set_state_dict(paddle.load("Gmodel_state0.588.pdparams"))
print(agcn.backbone.l4.gcn1.alpha.numpy())
print(agcn.backbone.l5.gcn1.alpha.numpy())

valid_dataset = Dataset(is_train=False)
valid_loader = paddle.io.DataLoader(valid_dataset,batch_size=16,shuffle =True,drop_last=True)

print("自己准确率",valid_accurary(valid_loader,agcn))

[0.27299923]
[0.6008839]
自己准确率 0.5841346153846154

4.7 自己进行训练

import math
from paddle.optimizer.lr import *
import numpy as np

class CustomWarmupAdjustDecay(LRScheduler):
    r"""
    We combine warmup and stepwise-cosine which is used in slowfast model.
    Args:
        step_base_lr (float): start learning rate used in warmup stage.
        warmup_epochs (int): the number epochs of warmup.
        lr_decay_rate (float|int, optional): base learning rate decay rate.
        step (int): step in change learning rate.
        last_epoch (int, optional):  The index of last epoch. Can be set to restart training. Default: -1, means initial learning rate.
        verbose (bool, optional): If ``True``, prints a message to stdout for each update. Default: ``False`` .
    Returns:
        ``CosineAnnealingDecay`` instance to schedule learning rate.
    """

    def __init__(self,
                 step_base_lr,
                 warmup_epochs,
                 lr_decay_rate,
                 boundaries,
                 num_iters=None,
                 last_epoch=-1,
                 verbose=False):
        self.step_base_lr = step_base_lr
        self.warmup_epochs = warmup_epochs
        self.lr_decay_rate = lr_decay_rate
        self.boundaries = boundaries
        self.num_iters = num_iters
        #call step() in base class, last_lr/last_epoch/base_lr will be update
        super(CustomWarmupAdjustDecay, self).__init__(last_epoch=last_epoch,
                                                      verbose=verbose)

    def step(self, epoch=None):
        """
        ``step`` should be called after ``optimizer.step`` . It will update the learning rate in optimizer according to current ``epoch`` .
        The new learning rate will take effect on next ``optimizer.step`` .
        Args:
            epoch (int, None): specify current epoch. Default: None. Auto-increment from last_epoch=-1.
        Returns:
            None
        """
        if epoch is None:
            if self.last_epoch == -1:
                self.last_epoch += 1
            else:
                self.last_epoch += 1 / self.num_iters  # update step with iters
        else:
            self.last_epoch = epoch

        self.last_lr = self.get_lr()

        if self.verbose:
            print('Epoch {}: {} set learning rate to {}.'.format(
                self.last_epoch, self.__class__.__name__, self.last_lr))

    def get_lr(self):
        if self.last_epoch < self.warmup_epochs:
            lr = self.step_base_lr * (self.last_epoch + 1) / self.warmup_epochs
        else:
            lr = self.step_base_lr * (self.lr_decay_rate**np.sum(
                self.last_epoch >= np.array(self.boundaries)))
        return lr

import paddle.nn as nn
agcn = AGCN_framework()
crossEntropyLoss =nn.CrossEntropyLoss()
# scheduler_G = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate =0.05, T_max =60, eta_min=0, last_epoch=- 1, verbose=False)
scheduler_G = CustomWarmupAdjustDecay(0.1,5,0.1,[ 30, 40 ],1,verbose = True)

optimizer = paddle.optimizer.Momentum(learning_rate=scheduler_G, momentum=0.9, parameters=agcn.parameters(), use_nesterov=False, weight_decay=1e-4, grad_clip=None, name=None)

Epoch 0: CustomWarmupAdjustDecay set learning rate to 0.02.

import os
epoches =70
i = 0

v_acc_max = 0
for epoch in range(epoches):
    print("epoch",epoch)
    for data in tqdm(data_loader):

        one_data,cls=data
        out = agcn(one_data)
        optimizer.clear_grad()
        loss = crossEntropyLoss(out,cls)
        loss.backward()
        optimizer.step()

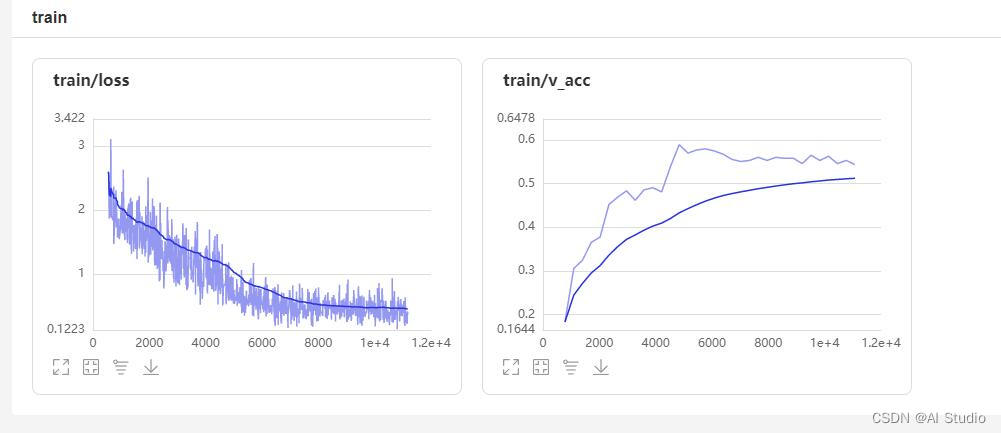

        log_writer.add_scalar(tag='train/loss', step=i, value=loss.numpy()[0])


        if i%100 == 3:
            print("loss",loss.numpy()[0],v_acc_max)

        i+=1
        # break

    if epoch%2 == 0:
        agcn.eval()
        v_acc = valid_accurary(valid_loader,agcn)
        agcn.train()
        print("epoch loss",loss.numpy()[0],v_acc)
        log_writer.add_scalar(tag='train/v_acc', step=i, value=v_acc)
        if v_acc > v_acc_max:
            v_acc_max = v_acc
            save_param_path_model = os.path.join("model", 'Gmodel_state'+str(v_acc_max)+'.pdparams')
            paddle.save(agcn.state_dict(), save_param_path_model)

    scheduler_G.step()
    # break

5. 总结：

基于骨骼点进行动作识别输入的是骨骼点信息输出的是类别，从ST-GCN到AGCN-2S，再到这个AAGCN，每一次的改进都是循序渐进的。AGCN-2S让模型学习建立了不单单是已有边的信息，AAGCN这个拓扑结构更加自由的学习，其中AAGCN的公式用AK给Bk进行初始化很不错,并且添加attention.

此文章为搬运
原项目链接
