『医学影像』基于Unet模型实现脊柱CT定位（中）
全新的任务，基于分割网络实现Unet模型对L3锥体的定位，论文解读，包括笔者对该任务的理解和讨论。
·
基于Unet模型实现脊柱CT定位（中）
目前AIstudio已经有许多基于Unet的分割项目，本项目在主要介绍分割网络的另外的应用场景，希望对大家的研究有所启发。
在项目『医学影像』基于Unet+++实现脊柱MRI定位（上）中，笔者初步探索了基于分割网络实现锥体定位的可行性。
但医疗数据种类繁多，并且成像原理各不相同,与此相关的数据集非常稀缺。此外，之前的项目仅仅探索了在侧面视图的情况下的可行性。
本项目将根据论文《Automatic L3 slice detection in 3D CT images using fully-convolutional networks》开源的CT多视图数据集进行研究。
展示了在CT数据中的定位可行性，探索了定位CT开源数据集的使用，对比在CT数据的侧面视图与正面视图中锥体定位的精度。
0. 研究动机
在医学领域，经常需要分析患某种疾病后身体脂肪含量的变化，一般通过选择某个锥体的截面来估计全身的脂肪含量。
常规的方法是通过手动从几百张影像中选择需要的切片（一般为L3），这种方法即耗时又枯燥，稍不注意还容易出错。
直接从CT图像中提取测量值非常方便，因为CT经常作为癌症分期和疾病评估的一部分获得。
目前计算肌细胞减少测量值的工作流程如下：
-
手动提取L3切片；这涉及到逐层滚动3D图像，直到找到L3层。
-
半自动分割软件（例如：Slice-O-Matic或ImageJ），包括手动细化，然后用于分割骨骼肌和脂肪组织。
此过程每幅图像需要5到10分钟，并且在大型数据集上运行会变得非常耗时
切片选择相关的研究大部分都是在3D数据上对所有的锥体进行标注，但是仅仅对单一锥体进行定位不需要其他的锥体的具体位置，而且3D数据的训练和推理需要更多的时间。
因此，目前的一个解决方案是通过将三维数据映射使用MLP映射到二维，然后使用深度学习进行定位。
由于CT影像数据的丰富性，我们可以通过MLP数据同时获得正面视图和侧面视图来进行定位。
论文《Automatic L3 slice detection in 3D CT images using fully-convolutional networks》
在过去几年中，对第三腰椎（L3）处提取的单个CT切片的分析已经引起了临床上的极大兴趣，特别是在量化肌减少（肌肉丧失）方面。

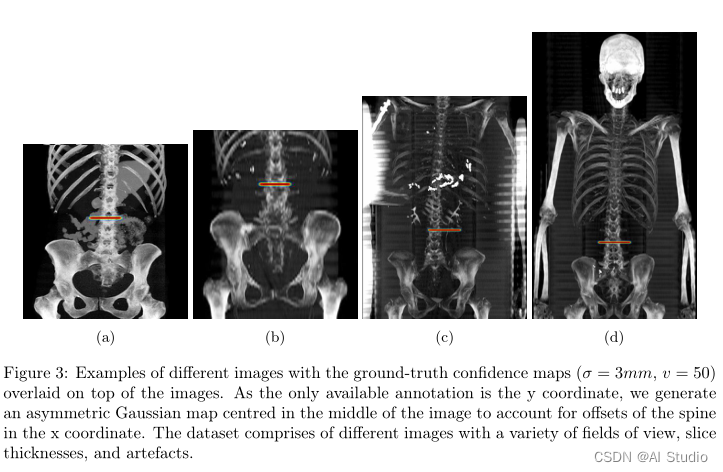

该文章提出了一种在三维CT图像中自动检测L3切片的有效方法。适用于具有各种视场、遮挡和切片厚度的图像。

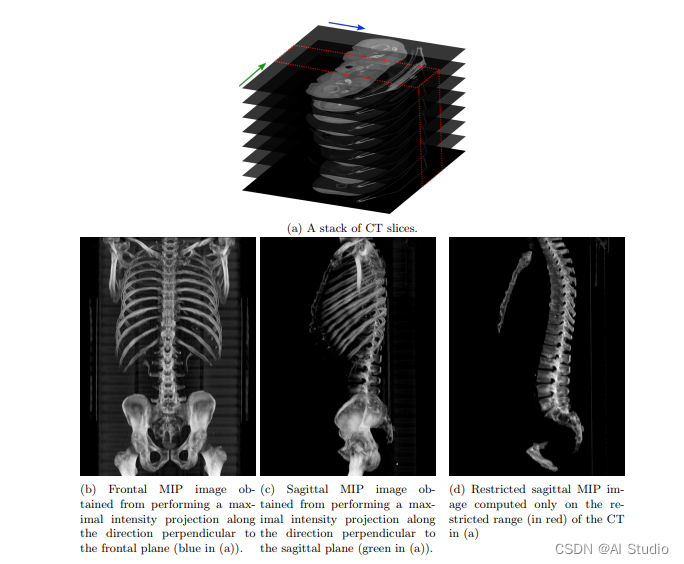

首先，通过最大强度投影（MIP）将三维CT图像转换为二维图像，从而降低了问题的维数。
然后将MIP图像用作2D全卷积网络的输入，以2D置信图的形式预测L3切片的位置。
1. 项目介绍
计算机断层扫描(CT)成像广泛用于研究身体成分，即肌肉和脂肪组织的比例，应用于营养或化疗剂量设计等领域。
特别是，来自固定位置的轴向CT切片通常用于身体成分分析。然而，如果手动进行，从数百张切片中手动选择是非常繁琐的操作。
本项目将3D CT体积作为输入。体积通过最大强度投影（MIP）转换为2D图像，并进行进一步后处理。
将2D MIP图像用作网络的输入。根据网络，输出是1D或2D置信图。
置信图中的最大概率位置用作L3位置的预测，允许从CT体积中提取横向切片。
最终实现目标锥体的快速自动识别。
2. 数据集介绍
数据集来自论文公开数据集，作者从多个公开可用的数据集中收集了1070个CT图像组成的不同数据集。
癌症影像档案（TCIA）中获得3组：头颈部、卵巢、结肠；肝肿瘤数据集来自LiTS分割挑战；卵巢癌数据集来自伦敦哈默史密斯医院（HH）。
所有1070个3D CT图像都经过预处理，其中每个3D图像都会生成一组由正面图像和受限矢状图像组成的图像。
对归一化为1x1mm的图像进行注释。MIP图像由2名注释员注释：一名具有7年经验的放射科医生和一名具有5年CT图像工作经验的注释员。

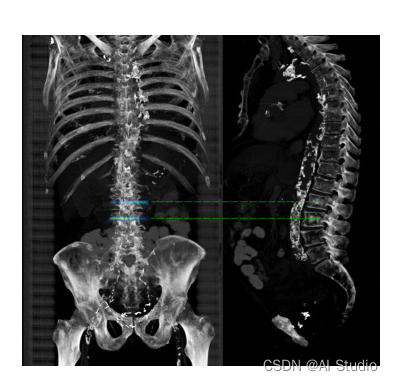

对于每个图像集，注释器都会看到正面和受限矢状MIP并排显示，注释器单击L3切片的位置。
主要标志物被选为椎弓根的中间，与横突的顶部边缘对齐。
3. 代码实现
3.1 数据集预处理
本项目读取原论文数据集，其正面视图及侧面视图的尺寸最大为 700*1161，L3锥体位置为 第90-slice 到 第860-slice，空间差异较大。
对数据进行进一步处理。将空间分辨率统一为1mm，hu值截取为【100，1500】，图像两边各mask35%以去除无关信息干扰，并截取512*512尺寸的数据作为最终数据集。
具体代码处理如下：
- 经过处理后剩余979个数据集。
import numpy as np
from scipy.ndimage import zoom
def normalise_zero_one(image, eps=1e-8):
image = image.astype(np.float32)
ret = (image - np.min(image))
ret /= (np.max(image) - np.min(image) + eps)
return ret
def reduce_hu_intensity_range(img, minv=100, maxv=1500):
img = np.clip(img, minv, maxv)
img = 255 * normalise_zero_one(img)
return img
def normalise_spacing_and_preprocess(images, images_sagittal, slice_locations, spacings, new_spacing=1):
images_norm = []
images_s_norm = []
slice_loc_norm = []
for image, image_s, loc, s in zip(images, images_sagittal, slice_locations, spacings):
img = zoom(image, [s[2] / new_spacing, s[0] / new_spacing])
img_s = zoom(image_s, [s[2] / new_spacing, s[0] / new_spacing])
images_norm.append(reduce_hu_intensity_range(img))
images_s_norm.append(reduce_hu_intensity_range(img_s))
slice_loc_norm.append(int(loc * s[2] / new_spacing))
return np.array(images_norm), np.array(images_s_norm), np.array(slice_loc_norm)
def resize_img(img_0,img_1,loc_,min_h_w=512):
assert min_h_w% 2 == 0, '要求限制范围取值为偶数'
img_0_out,img_1_out,loc_out = [],[],[]
for i in range(len(img_0)):
img_f = img_0[i]
img_s = img_1[i]
loc = loc_[i]
if loc>min_h_w:
continue
else:
## 处理高度
h,w = img_f.shape
# 处理高度
if h>min_h_w:
img_f = img_f[:min_h_w,:]
img_s = img_s[:min_h_w,:]
else:
img_f_ = np.zeros((min_h_w,w))
img_s_ = np.zeros((min_h_w,w))
img_f_[:h,:] = img_f
img_s_[:h,:] = img_s
img_f = img_f_
img_s = img_s_
# 处理宽度
if w>min_h_w:
mid_w = int(w*0.5)
img_f = img_f[:,mid_w-min_h_w//2:mid_w+min_h_w//2]
img_s = img_s[:,mid_w-min_h_w//2:mid_w+min_h_w//2]
else:
img_f_ = np.zeros((min_h_w,min_h_w))
img_s_ = np.zeros((min_h_w,min_h_w))
s_ind = int(0.5*(min_h_w-w))
img_f_[:,s_ind:s_ind+w] = img_f
img_s_[:,s_ind:s_ind+w] = img_s
img_f = img_f_
img_s = img_s_
# MASK 掉一部分
s_m = 0.35
img_f[:,:int(s_m*img_f.shape[1])] = 0
img_f[:,int((1-s_m)*img_f.shape[1]):] = 0
img_0_out.append(img_f)
img_1_out.append(img_s)
loc_out.append(loc)
return img_0_out,img_1_out,loc_out
def generateTrainData(path = "data/data145717/l3_dataset.npz"):
data=np.load(path,allow_pickle=True)
images = data['images_f']
images_sagittal = data['images_s']
ydata = data['ydata']
names = data['names']
spacings = data['spacings']
data.close()
slice_locations = np.zeros_like(names, dtype=np.float)
n = len(ydata.item())
for k, v in ydata.item().items():
slice_locations += v
slice_locations /= n
images_frontal, images_sagittal, slice_locations = normalise_spacing_and_preprocess(images, images_sagittal,slice_locations, spacings, new_spacing=1)
images_frontal, images_sagittal, slice_locations = resize_img(images_frontal,images_sagittal,slice_locations)
return images_frontal, images_sagittal, slice_locations
images_frontal, images_sagittal, slice_locations = generateTrainData()
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/ipykernel_launcher.py:26: VisibleDeprecationWarning: Creating an ndarray from ragged nested sequences (which is a list-or-tuple of lists-or-tuples-or ndarrays with different lengths or shapes) is deprecated. If you meant to do this, you must specify 'dtype=object' when creating the ndarray
len(images_frontal)
979
3.2 定义数据集读取类
本项目将原始数据集按照80%训练，20%验证进行划分。
对读取数据集进行展示。
# 定义数据读取类
import paddle
from paddle.io import Dataset
import numpy as np
from scipy.ndimage import zoom
import paddle.vision.transforms as T
# 重写数据读取类
class MRILocationDataset(Dataset):
def __init__(self,images_frontal, images_sagittal, slice_locations,mode = 'train',transform =None,k_fold=1):
# 数据读取
self.images_frontal_list = list(images_frontal)
self.images_sagittal_list = list(images_sagittal)
self.slice_locations_list = list(slice_locations)
self.mode = mode
# 选择前80%训练，后20%测试
scale_s = int(0.2*(k_fold-1)*len(self.slice_locations_list))
scale_e = int(0.2*k_fold*len(self.slice_locations_list))
self.transforms = transform
if self.mode == 'train':
self.images_frontal_list = self.images_frontal_list[:scale_s]+self.images_frontal_list[scale_e:]
self.images_sagittal_list = self.images_sagittal_list[:scale_s]+self.images_sagittal_list[scale_e:]
self.slice_locations_list = self.slice_locations_list[:scale_s]+self.slice_locations_list[scale_e:]
else:
self.images_frontal_list = self.images_frontal_list[scale_s:scale_e]
self.images_sagittal_list = self.images_sagittal_list[scale_s:scale_e]
self.slice_locations_list = self.slice_locations_list[scale_s:scale_e]
# one-hot 编码 并转为 tensor
# self.slice_locations_tensor = paddle.nn.functional.one_hot(paddle.to_tensor(slice_locations-np.min(slice_locations), dtype='int64'), num_classes=np.max(slice_locations-np.min(slice_locations))+1)
def __getitem__(self, index):
images_frontal = self.images_frontal_list[index]
images_sagittal = self.images_sagittal_list[index]
slice_locations = self.slice_locations_list[index]
#slice_locations = self.slice_locations_tensor[index]
images_frontal = np.expand_dims(images_frontal, axis=0)
images_sagittal = np.expand_dims(images_sagittal, axis=0)
images_frontal = images_frontal.repeat(3,axis=0)
images_sagittal = images_sagittal.repeat(3,axis=0)
wid_label = 3
label = np.zeros((1,images_frontal.shape[1],images_frontal.shape[2]))
label[:,slice_locations-wid_label:slice_locations+wid_label,int(images_frontal.shape[2]*0.35):int(images_frontal.shape[2]*0.7)] = 255
return images_frontal/255 ,images_sagittal/255 ,slice_locations,label/255
def __len__(self):
return len(self.slice_locations_list)
from PIL import Image
import matplotlib.pyplot as plt
%matplotlib inline
%config InlineBackend.figure_format = 'retina'
dataset = MRILocationDataset(images_frontal, images_sagittal, slice_locations,mode='train',k_fold=2)
print('=============train dataset=============')

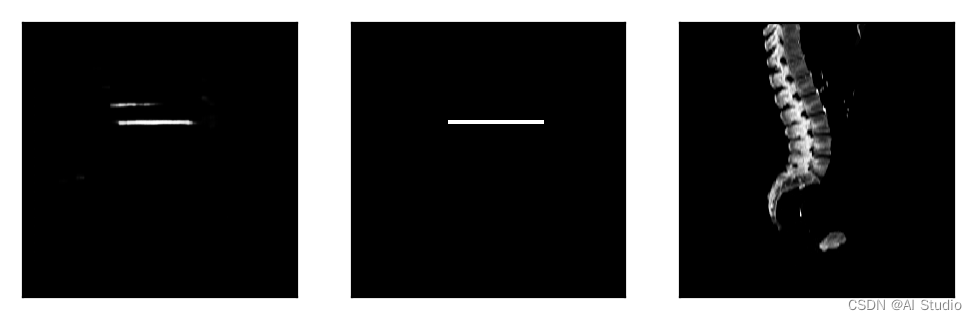

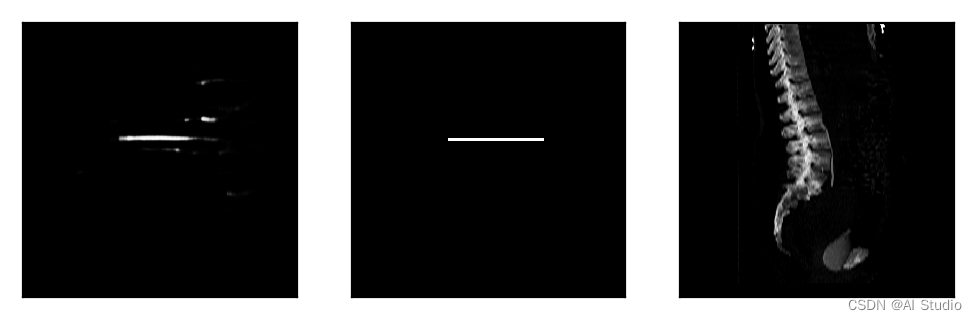

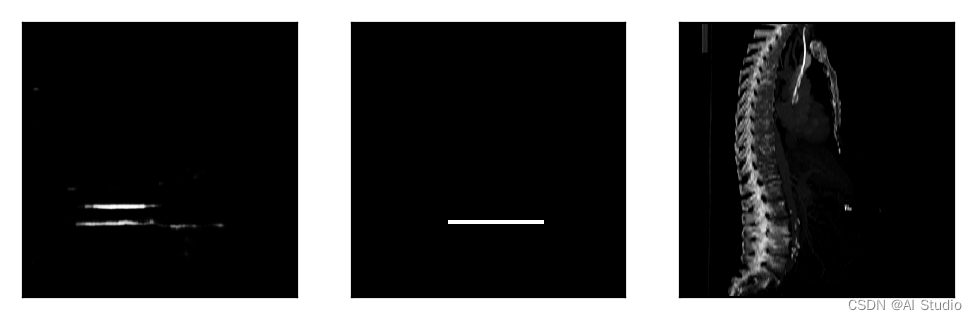

for item in dataset:
images_frontal_ ,images_sagittal_,slice_locations_,label= item
print(slice_locations_,images_frontal_.shape,images_sagittal_.shape,label.shape)
break
images_frontal_ = np.squeeze(images_frontal_[0,:,:])
images_sagittal_ = np.squeeze(images_sagittal_[0,:,:])
label = np.squeeze(label)
imga = Image.fromarray(images_frontal_*255)
imgb = Image.fromarray(images_sagittal_*255)
imgc = Image.fromarray(label*255)
plt.figure(figsize=(6, 2))
plt.subplot(1,3,1),plt.xticks([]),plt.yticks([]),plt.imshow(imga)
plt.subplot(1,3,2),plt.xticks([]),plt.yticks([]),plt.imshow(imgb)
plt.subplot(1,3,3),plt.xticks([]),plt.yticks([]),plt.imshow(imgc)

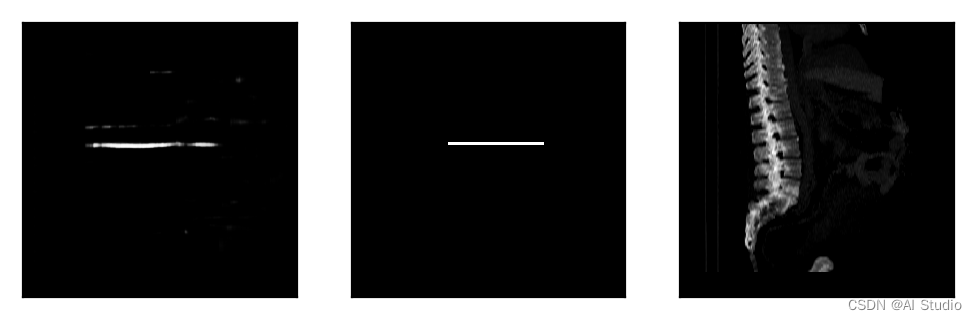

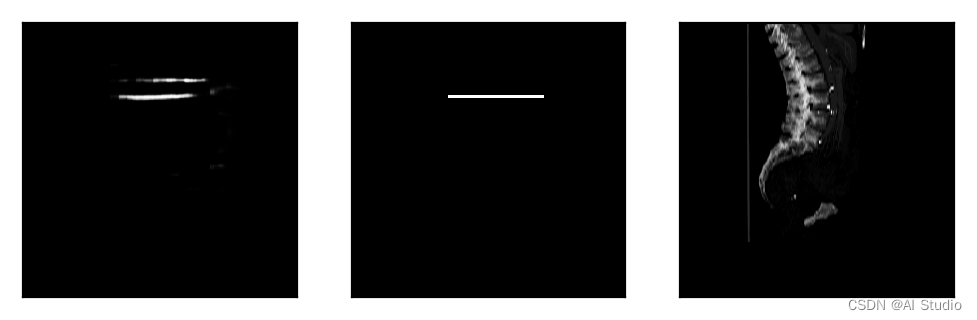

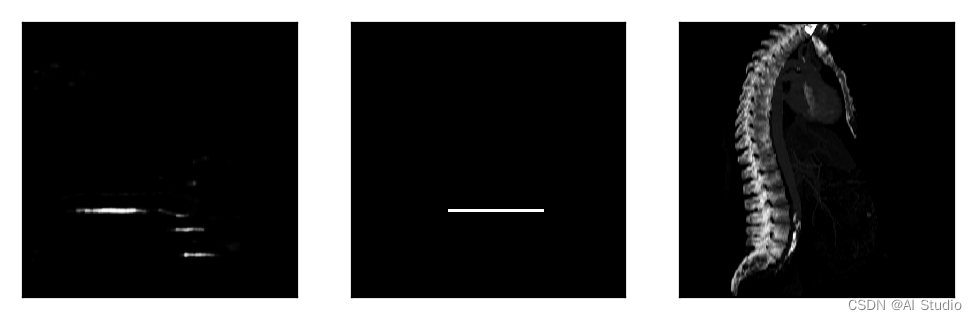

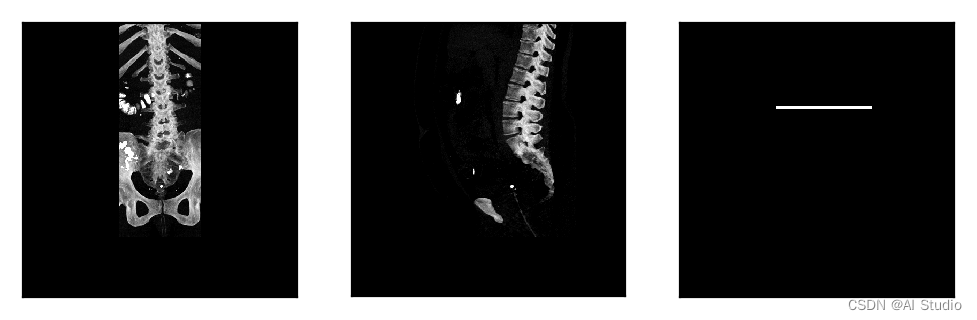

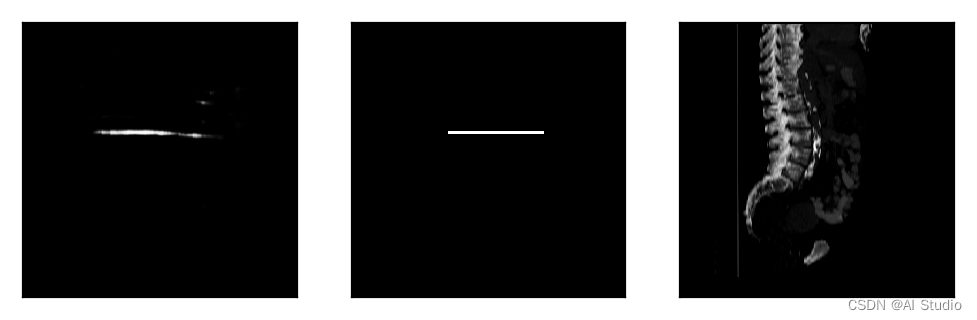

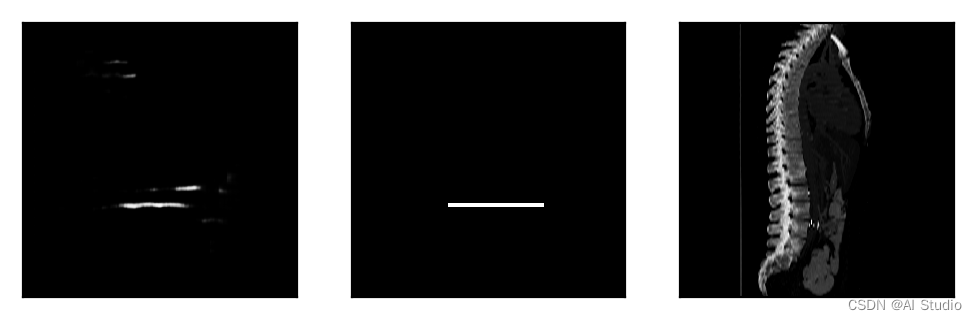

plt.show()
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/__init__.py:107: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
from collections import MutableMapping
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/rcsetup.py:20: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
from collections import Iterable, Mapping
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/colors.py:53: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
from collections import Sized
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib_inline/config.py:68: DeprecationWarning: InlineBackend._figure_format_changed is deprecated in traitlets 4.1: use @observe and @unobserve instead.
def _figure_format_changed(self, name, old, new):
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2349: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
if isinstance(obj, collections.Iterator):
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/cbook/__init__.py:2366: DeprecationWarning: Using or importing the ABCs from 'collections' instead of from 'collections.abc' is deprecated, and in 3.8 it will stop working
return list(data) if isinstance(data, collections.MappingView) else data
=============train dataset=============
160 (3, 512, 512) (3, 512, 512) (1, 512, 512)
3.3 定义模型

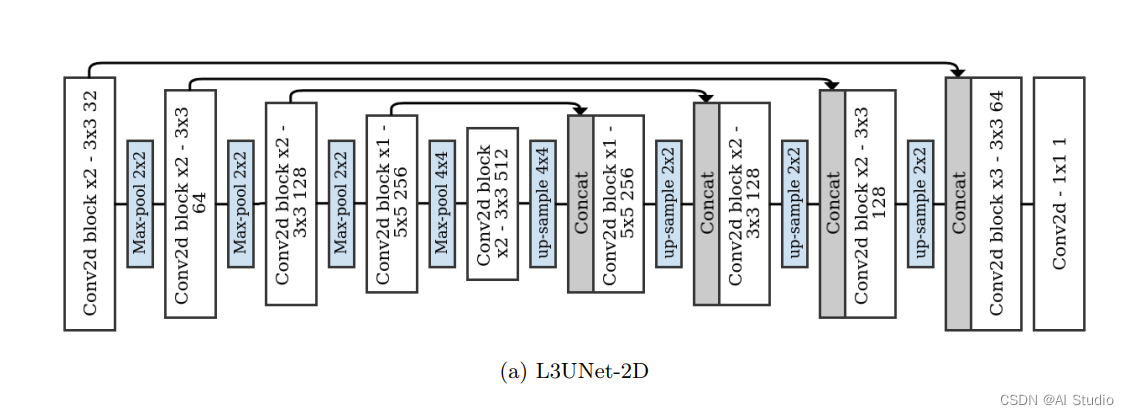

本项目基于Unet网络完成实验。
import paddle
import paddle.nn as nn
import paddle.nn.functional as F
class DoubleConv(nn.Layer):
def __init__(self,in_ch,out_ch):
super(DoubleConv,self).__init__()
self.conv = nn.Sequential(
nn.Conv2D(in_ch,out_ch,3,padding=1),#in_ch、out_ch是通道数
nn.BatchNorm2D(out_ch),
nn.ReLU(),
nn.Conv2D(out_ch,out_ch,3,padding=1),
nn.BatchNorm2D(out_ch),
nn.ReLU()
)
def forward(self,x):
return self.conv(x)
class UNet(nn.Layer):
def __init__(self,in_ch=3,num_classes=1):
super(UNet,self).__init__()
self.conv1 = DoubleConv(in_ch,64)
self.pool1 = nn.MaxPool2D(2)#每次把图像尺寸缩小一半
self.conv2 = DoubleConv(64,128)
self.pool2 = nn.MaxPool2D(2)
self.conv3 = DoubleConv(128,256)
self.pool3 = nn.MaxPool2D(2)
self.conv4 = DoubleConv(256,512)
self.pool4 = nn.MaxPool2D(2)
self.conv5 = DoubleConv(512,1024)
#逆卷积
self.up6 = nn.Conv2DTranspose(1024,512,2,stride=2)
self.conv6 = DoubleConv(1024,512)
self.up7 = nn.Conv2DTranspose(512,256,2,stride=2)
self.conv7 = DoubleConv(512,256)
self.up8 = nn.Conv2DTranspose(256,128,2,stride=2)
self.conv8 = DoubleConv(256,128)
self.up9 = nn.Conv2DTranspose(128,64,2,stride=2)
self.conv9 = DoubleConv(128,64)
self.conv10 = nn.Conv2D(64,num_classes,1)
self.conv11 = nn.Conv2D(in_channels=num_classes,out_channels=num_classes,kernel_size=(1,512),stride=1)
def forward(self,x):
c1 = self.conv1(x)
p1 = self.pool1(c1)
c2 = self.conv2(p1)
p2 = self.pool2(c2)
c3 = self.conv3(p2)
p3 = self.pool3(c3)
c4 = self.conv4(p3)
p4 = self.pool4(c4)
c5 = self.conv5(p4)
up_6 = self.up6(c5)
merge6 = paddle.concat([up_6,c4],axis=1)#按维数1（列）拼接,列增加
c6 = self.conv6(merge6)
up_7 = self.up7(c6)
merge7 = paddle.concat([up_7,c3],axis=1)
c7 = self.conv7(merge7)
up_8 = self.up8(c7)
merge8 = paddle.concat([up_8,c2],axis=1)
c8 = self.conv8(merge8)
up_9 = self.up9(c8)
merge9 = paddle.concat([up_9,c1],axis=1)
c9 = self.conv9(merge9)
c10 = self.conv10(c9)
#c11 = F.sigmoid(self.conv11(c10))#化成(0~1)区间
return c10
if __name__ == '__main__':
unet = UNet(num_classes=1)
model = paddle.Model(unet)
model.summary((2,3, 512, 512))
W1005 14:08:51.387312 575 gpu_resources.cc:61] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 11.2
W1005 14:08:51.391311 575 gpu_resources.cc:91] device: 0, cuDNN Version: 8.2.
-----------------------------------------------------------------------------
Layer (type) Input Shape Output Shape Param #
=============================================================================
Conv2D-1 [[2, 3, 512, 512]] [2, 64, 512, 512] 1,792
BatchNorm2D-1 [[2, 64, 512, 512]] [2, 64, 512, 512] 256
ReLU-1 [[2, 64, 512, 512]] [2, 64, 512, 512] 0
Conv2D-2 [[2, 64, 512, 512]] [2, 64, 512, 512] 36,928
BatchNorm2D-2 [[2, 64, 512, 512]] [2, 64, 512, 512] 256
ReLU-2 [[2, 64, 512, 512]] [2, 64, 512, 512] 0
DoubleConv-1 [[2, 3, 512, 512]] [2, 64, 512, 512] 0
MaxPool2D-1 [[2, 64, 512, 512]] [2, 64, 256, 256] 0
Conv2D-3 [[2, 64, 256, 256]] [2, 128, 256, 256] 73,856
BatchNorm2D-3 [[2, 128, 256, 256]] [2, 128, 256, 256] 512
ReLU-3 [[2, 128, 256, 256]] [2, 128, 256, 256] 0
Conv2D-4 [[2, 128, 256, 256]] [2, 128, 256, 256] 147,584
BatchNorm2D-4 [[2, 128, 256, 256]] [2, 128, 256, 256] 512
ReLU-4 [[2, 128, 256, 256]] [2, 128, 256, 256] 0
DoubleConv-2 [[2, 64, 256, 256]] [2, 128, 256, 256] 0
MaxPool2D-2 [[2, 128, 256, 256]] [2, 128, 128, 128] 0
Conv2D-5 [[2, 128, 128, 128]] [2, 256, 128, 128] 295,168
BatchNorm2D-5 [[2, 256, 128, 128]] [2, 256, 128, 128] 1,024
ReLU-5 [[2, 256, 128, 128]] [2, 256, 128, 128] 0
Conv2D-6 [[2, 256, 128, 128]] [2, 256, 128, 128] 590,080
BatchNorm2D-6 [[2, 256, 128, 128]] [2, 256, 128, 128] 1,024
ReLU-6 [[2, 256, 128, 128]] [2, 256, 128, 128] 0
DoubleConv-3 [[2, 128, 128, 128]] [2, 256, 128, 128] 0
MaxPool2D-3 [[2, 256, 128, 128]] [2, 256, 64, 64] 0
Conv2D-7 [[2, 256, 64, 64]] [2, 512, 64, 64] 1,180,160
BatchNorm2D-7 [[2, 512, 64, 64]] [2, 512, 64, 64] 2,048
ReLU-7 [[2, 512, 64, 64]] [2, 512, 64, 64] 0
Conv2D-8 [[2, 512, 64, 64]] [2, 512, 64, 64] 2,359,808
BatchNorm2D-8 [[2, 512, 64, 64]] [2, 512, 64, 64] 2,048
ReLU-8 [[2, 512, 64, 64]] [2, 512, 64, 64] 0
DoubleConv-4 [[2, 256, 64, 64]] [2, 512, 64, 64] 0
MaxPool2D-4 [[2, 512, 64, 64]] [2, 512, 32, 32] 0
Conv2D-9 [[2, 512, 32, 32]] [2, 1024, 32, 32] 4,719,616
BatchNorm2D-9 [[2, 1024, 32, 32]] [2, 1024, 32, 32] 4,096
ReLU-9 [[2, 1024, 32, 32]] [2, 1024, 32, 32] 0
Conv2D-10 [[2, 1024, 32, 32]] [2, 1024, 32, 32] 9,438,208
BatchNorm2D-10 [[2, 1024, 32, 32]] [2, 1024, 32, 32] 4,096
ReLU-10 [[2, 1024, 32, 32]] [2, 1024, 32, 32] 0
DoubleConv-5 [[2, 512, 32, 32]] [2, 1024, 32, 32] 0
Conv2DTranspose-1 [[2, 1024, 32, 32]] [2, 512, 64, 64] 2,097,664
Conv2D-11 [[2, 1024, 64, 64]] [2, 512, 64, 64] 4,719,104
BatchNorm2D-11 [[2, 512, 64, 64]] [2, 512, 64, 64] 2,048
ReLU-11 [[2, 512, 64, 64]] [2, 512, 64, 64] 0
Conv2D-12 [[2, 512, 64, 64]] [2, 512, 64, 64] 2,359,808
BatchNorm2D-12 [[2, 512, 64, 64]] [2, 512, 64, 64] 2,048
ReLU-12 [[2, 512, 64, 64]] [2, 512, 64, 64] 0
DoubleConv-6 [[2, 1024, 64, 64]] [2, 512, 64, 64] 0
Conv2DTranspose-2 [[2, 512, 64, 64]] [2, 256, 128, 128] 524,544
Conv2D-13 [[2, 512, 128, 128]] [2, 256, 128, 128] 1,179,904
BatchNorm2D-13 [[2, 256, 128, 128]] [2, 256, 128, 128] 1,024
ReLU-13 [[2, 256, 128, 128]] [2, 256, 128, 128] 0
Conv2D-14 [[2, 256, 128, 128]] [2, 256, 128, 128] 590,080
BatchNorm2D-14 [[2, 256, 128, 128]] [2, 256, 128, 128] 1,024
ReLU-14 [[2, 256, 128, 128]] [2, 256, 128, 128] 0
DoubleConv-7 [[2, 512, 128, 128]] [2, 256, 128, 128] 0
Conv2DTranspose-3 [[2, 256, 128, 128]] [2, 128, 256, 256] 131,200
Conv2D-15 [[2, 256, 256, 256]] [2, 128, 256, 256] 295,040
BatchNorm2D-15 [[2, 128, 256, 256]] [2, 128, 256, 256] 512
ReLU-15 [[2, 128, 256, 256]] [2, 128, 256, 256] 0
Conv2D-16 [[2, 128, 256, 256]] [2, 128, 256, 256] 147,584
BatchNorm2D-16 [[2, 128, 256, 256]] [2, 128, 256, 256] 512
ReLU-16 [[2, 128, 256, 256]] [2, 128, 256, 256] 0
DoubleConv-8 [[2, 256, 256, 256]] [2, 128, 256, 256] 0
Conv2DTranspose-4 [[2, 128, 256, 256]] [2, 64, 512, 512] 32,832
Conv2D-17 [[2, 128, 512, 512]] [2, 64, 512, 512] 73,792
BatchNorm2D-17 [[2, 64, 512, 512]] [2, 64, 512, 512] 256
ReLU-17 [[2, 64, 512, 512]] [2, 64, 512, 512] 0
Conv2D-18 [[2, 64, 512, 512]] [2, 64, 512, 512] 36,928
BatchNorm2D-18 [[2, 64, 512, 512]] [2, 64, 512, 512] 256
ReLU-18 [[2, 64, 512, 512]] [2, 64, 512, 512] 0
DoubleConv-9 [[2, 128, 512, 512]] [2, 64, 512, 512] 0
Conv2D-19 [[2, 64, 512, 512]] [2, 1, 512, 512] 65
=============================================================================
Total params: 31,055,297
Trainable params: 31,031,745
Non-trainable params: 23,552
-----------------------------------------------------------------------------
Input size (MB): 6.00
Forward/backward pass size (MB): 7436.00
Params size (MB): 118.47
Estimated Total Size (MB): 7560.47
-----------------------------------------------------------------------------
3.4 模型训练
# 初始化权重
import paddle
import paddle.nn as nn
from paddle.nn.initializer import KaimingNormal,Constant
def weight_init(module):
for n,m in module.named_children():
if isinstance(m,nn.Conv2D):
KaimingNormal()(m.weight,m.weight.block)
if m.bias is not None:
Constant(0)(m.bias)
if isinstance(m,nn.Conv1D):
KaimingNormal()(m.weight,m.weight.block)
if m.bias is not None:
Constant(0)(m.bias)
import pandas as pd
import os
import numpy as np
from tqdm import tqdm
# 创建文件夹
for item in ['log','saveModel']:
make_folder = os.path.join('work',item)
if not os.path.exists(make_folder):
os.mkdir(make_folder)
EPOCH_NUM = 30 # 设置外层循环次数
BATCH_SIZE = 8 # 设置batch大小
# 定义网络结构
# 五折交叉验证
#for K in range(5):
K=5 #K+1
# unet3p / unet / u2net / attunet / unet2p
# 每次实例化模型
model = UNet(num_classes=1)
model_name = 'unet'
for item in ['log','saveModel']:
make_folder = os.path.join('work',item,model_name)
if not os.path.exists(make_folder):
os.mkdir(make_folder)
# 定义优化算法，使用随机梯度下降SGD，学习率设置为0.01
scheduler = paddle.optimizer.lr.StepDecay(learning_rate=0.01, step_size=30, gamma=0.1, verbose=False)
optimizer = paddle.optimizer.Adam(learning_rate=scheduler, parameters=model.parameters())
# 定义数据读取
train_dataset = MRILocationDataset(images_frontal, images_sagittal, slice_locations,mode='train',k_fold=K)
# 使用paddle.io.DataLoader 定义DataLoader对象用于加载Python生成器产生的数据，
data_loader = paddle.io.DataLoader(train_dataset, batch_size=BATCH_SIZE, shuffle=False,num_workers=4)
loss_BCEloss = paddle.nn.BCELoss()
result = pd.DataFrame()
model.train()
model.apply(weight_init)
# 定义外层循环
for epoch_id in range(EPOCH_NUM):
# 定义内层循环
LOSS = {}
for iter_id, data in enumerate(tqdm(data_loader())):
images_frontal_ ,images_sagittal_,slice_locations_,label = data # x 为数据 ，y 为标签
# 将numpy数据转为飞桨动态图tensor形式
x = paddle.to_tensor(images_frontal_,dtype='float32')
y = paddle.to_tensor(images_sagittal_,dtype='float32')
label = paddle.to_tensor(label,dtype='float32')
# 前向计算
predicts = model(y)
# 计算损失
loss = loss_BCEloss(paddle.nn.functional.sigmoid(predicts), label)
# 清除梯度
optimizer.clear_grad()
# 反向传播
loss.backward()
# 最小化loss,更新参数
optimizer.step()
LOSS[iter_id] = loss.item()
scheduler.step()
info_loss = {'Epoch':epoch_id+1,'Loss':np.around(sum(LOSS.values())/len(LOSS), 5)}
result = result.append(info_loss,ignore_index=True)
print("第{}/5次交叉验证,epoch: {}, loss is: {}".format(K,epoch_id+1, loss.item()))
# 保存模型参数，文件名为 模型.pdparams
paddle.save(model.state_dict(), os.path.join('work/saveModel',model_name,model_name + '_{}.pdparams'.format(K)))
result.to_csv( os.path.join('work/log',model_name,model_name + '_{}.csv'.format(K)),index=False)
print('模型保存成功，模型参数保存在:',model_name,'_{}.pdparams中'.format(K))
3.5 模型测试
import paddle
import pandas as pd
import os
# 模型验证
BATCH_SIZE = 8
# 单次验证记录
Error_mean,Error_std= [],[]
# 全局验证记录
MODEL_Mean,MODEL_Std = [],[]
# 清理缓存
print("开始测试")
result = pd.DataFrame()
#for K in range(5):
K=5 #K+1
# 定义模型
model_name = 'unet'
model = UNet(num_classes=1)
# 用于加载之前的训练过的模型参数
para_state_dict = paddle.load(os.path.join('work/saveModel',model_name,model_name + '_{}.pdparams'.format(K)))
model.set_dict(para_state_dict)
model.eval()
test_dataset = MRILocationDataset(images_frontal, images_sagittal, slice_locations,mode='test',k_fold=K)
test_data_loader = paddle.io.DataLoader(test_dataset, batch_size=BATCH_SIZE, shuffle=False,num_workers=4)
with paddle.no_grad():
for iter_id, data in enumerate(test_data_loader()):
x, y,loc,label_ = data # x 为数据 ，y 为标签
# 将numpy数据转为飞桨动态图tensor形式
x = paddle.to_tensor(x,dtype='float32')
y = paddle.to_tensor(y,dtype='float32')
label_ = paddle.to_tensor(label_,dtype='float32')
predicts = model(y)
predicts = paddle.nn.functional.sigmoid(predicts)
for i in range(predicts.shape[0]):
predict = predicts[i,:,:,:].cpu().numpy()
label = label_[i,:,:,:].cpu().numpy()
inputs = y[i,1,:,:].cpu().numpy()
predict = np.squeeze(predict)
label = np.squeeze(label)
inputs = np.squeeze(inputs)
#当要保存的图片为灰度图像时，灰度图像的 numpy 尺度是 [1, h, w]。需要将 [1, h, w] 改变为 [h, w]
plt.figure(figsize=(6, 18))
plt.subplot(1,3,1),plt.xticks([]),plt.yticks([]),plt.imshow(predict,cmap='gray')
plt.subplot(1,3,2),plt.xticks([]),plt.yticks([]),plt.imshow(label,cmap='gray')
plt.subplot(1,3,3),plt.xticks([]),plt.yticks([]),plt.imshow(inputs,cmap='gray')
plt.show()
index_predict= np.argmax(np.max(predict,1))+3
index_label = np.argmax(np.max(label,1))
print('真实位置：',index_label,'预测位置：',index_predict)
Error_mean.append(np.abs(index_label-index_predict))
Error_std.append(index_label-index_predict)
break
print("第{}个模型测试集平均定位误差为：{:.2f}，定位误差标准差为：{:.2f}".format(K,np.mean(Error_mean),np.std(Error_std)))
MODEL_Mean.append(np.mean(Error_mean))
MODEL_Std.append(np.std(Error_std))
info_loss = {'K折交叉验证':K,'定位误差均值':np.mean(Error_mean),'定位误差标准差':np.std(Error_std)}
result = result.append(info_loss,ignore_index=True)
# 加入K折的最终验证结果
info_loss = {'K折交叉验证':'ALL','定位误差均值':np.mean(MODEL_Mean),'定位误差标准差':np.mean(MODEL_Std)}
result = result.append(info_loss,ignore_index=True)
result.to_csv( os.path.join('work/log',model_name,model_name + '_all.csv'),index=False,encoding='utf-8-sig')
print('-----------------------------------------')
print('模型{}五折交叉验证平均误差为：{:.2f}，误差标准差为：{:.2f}'.format(model_name,np.mean(MODEL_Mean),np.mean(MODEL_Std)))
print('-----------------------------------------')
np.mean(MODEL_Mean),'定位误差标准差':np.mean(MODEL_Std)}
result = result.append(info_loss,ignore_index=True)
result.to_csv( os.path.join('work/log',model_name,model_name + '_all.csv'),index=False,encoding='utf-8-sig')
print('-----------------------------------------')
print('模型{}五折交叉验证平均误差为：{:.2f}，误差标准差为：{:.2f}'.format(model_name,np.mean(MODEL_Mean),np.mean(MODEL_Std)))
print('-----------------------------------------')
开始测试
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:425: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
a_min = np.asscalar(a_min.astype(scaled_dtype))
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/image.py:426: DeprecationWarning: np.asscalar(a) is deprecated since NumPy v1.16, use a.item() instead
a_max = np.asscalar(a_max.astype(scaled_dtype))
真实位置： 182 预测位置： 189
真实位置： 222 预测位置： 233
真实位置： 134 预测位置： 141
真实位置： 347 预测位置： 353
真实位置： 369 预测位置： 346
真实位置： 202 预测位置： 207
真实位置： 214 预测位置： 217
真实位置： 337 预测位置： 343
第5个模型测试集平均定位误差为：8.50，定位误差标准差为：9.96
-----------------------------------------
模型unet五折交叉验证平均误差为：8.50，误差标准差为：9.96
-----------------------------------------
4 项目总结
| L3锥体定位 | 正面视图 | 侧面视图 |
|---|---|---|
| 误差 mm | 41 | 25 |
| 标准差 mm | 120 | 67 |
结论：侧面视图的定位精度要优于正面视图
-
本项目基于Unet算法实现了锥体的自动定位，更加深入的探讨了模型应用场景。
-
该项目启发对深度学习对于影像特征不明显的任务（不同于肿瘤的影像学特征明显，锥体定位要人工数），深度学习也能起到效果。
-
本项目对比了CT数据正面视图及侧面视图的定位精度，其中预处理是自动定位不可忽略的操作。
-
本项探索了开源数据数据正面视图及侧面视图的定位实验，后续可以在该模型中进一步改进。
此文章为搬运
原项目链接
学大模型，用大模型上飞桨星河社区！每天8点V100G算力免费领！免费领取ERNIE 4.0 100w Token >>>
更多推荐
1
0- 0
已为社区贡献1438条内容
所有评论(0)
