摘要

        随着视觉Transformer（ViTs）在计算机视觉任务中的成功应用，最近的技术试图优化ViTs的性能和复杂性，以实现在移动设备上的高效部署。 人们提出了多种方法来加速注意力机制，改进低效的设计，或者结合移动友好的轻量级卷积来形成混合体系结构。 然而，ViT及其变体仍然比轻量级CNNs具有更高的延迟或更多的参数，即使对于已经存在多年的MobileNet也是如此。 在实践中，延迟和大小对于在资源受限的硬件上进行有效的部署都是至关重要的。 在这项工作中，我们研究了一个中心问题，Transformer模型是否能像MobileNet一样快速运行并保持相似的大小？ 我们回顾了ViTS的设计选择，并提出了一种改进的超网，具有低延迟和高参数效率。 我们进一步提出了一种细粒度的联合搜索策略，该策略可以通过同时优化延迟和参数数来找到有效的体系结构。 在ImageNet-1K上，与MobileNetv2和MobileNetv2×1.4相比，所提出的模型效率Formerv2在相同的时延和参数下的TOP-1精度提高了约4%。 我们证明了适当设计和优化的视觉变换器可以在MobileNet级别的大小和速度下实现高性能。

1. EfficientFormerV2

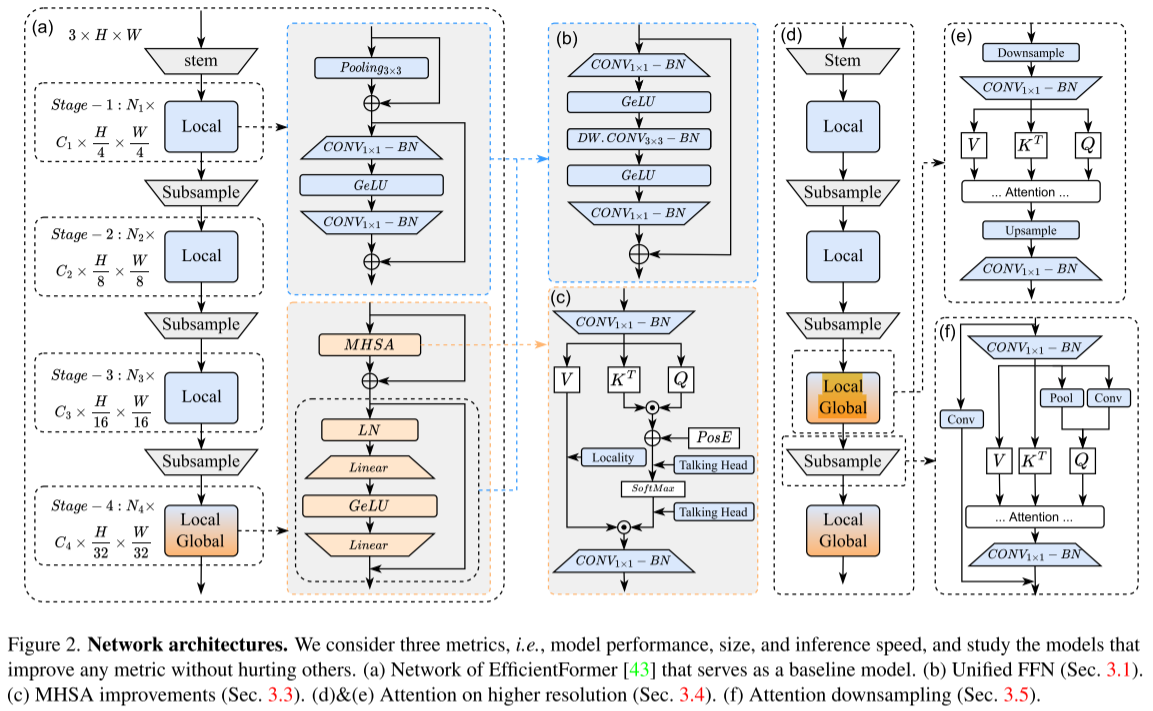

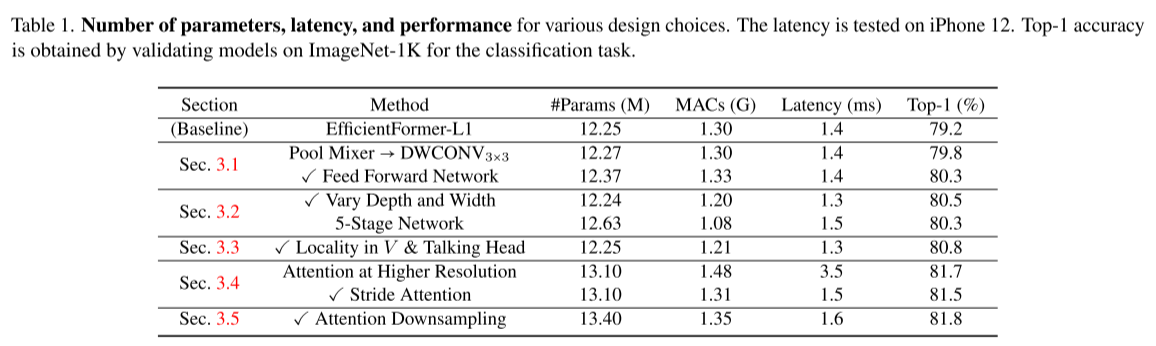

        如图2所示，EfficientFormerV2相对于EfficientFormer的主要改进为（消融实验见表1）：

1. 将早期的局部模块换成类似MobileNet的反向瓶颈结构
2. 对MSA进行改进，在生成QKV之前先进行下采样。对V引入局部性，同时引入Talking Head技术以增强跨头的信息交流
3. 针对分辨率下采样模块，提出了一种基于注意力机制的下采样技术，值得注意的是，为了更好地得到下采样查询，本文使用Pooling和卷积技术分别获得静态和可学习的下采样，并将其结合映射得到最后的下采样查询

2. 代码复现

2.1 下载并导入所需的库

!pip install paddlex

%matplotlib inline
import paddle
import paddle.fluid as fluid
import numpy as np
import matplotlib.pyplot as plt
from paddle.vision.datasets import Cifar10
from paddle.vision.transforms import Transpose
from paddle.io import Dataset, DataLoader
from paddle import nn
import paddle.nn.functional as F
import paddle.vision.transforms as transforms
import os
import matplotlib.pyplot as plt
from matplotlib.pyplot import figure
import paddlex
import math
import itertools

2.2 创建数据集

train_tfm = transforms.Compose([
    transforms.RandomResizedCrop(224, scale=(0.6, 1.0)),
    transforms.ColorJitter(brightness=0.2,contrast=0.2, saturation=0.2),
    transforms.RandomHorizontalFlip(0.5),
    transforms.RandomRotation(20),
    paddlex.transforms.MixupImage(),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

test_tfm = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

paddle.vision.set_image_backend('cv2')
# 使用Cifar10数据集
train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm, )
val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)
print("train_dataset: %d" % len(train_dataset))
print("val_dataset: %d" % len(val_dataset))

train_dataset: 50000
val_dataset: 10000

batch_size=256

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=4)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=4)

2.3 模型的创建

2.3.1 标签平滑

class LabelSmoothingCrossEntropy(nn.Layer):
    def __init__(self, smoothing=0.1):
        super().__init__()
        self.smoothing = smoothing

    def forward(self, pred, target):

        confidence = 1. - self.smoothing
        log_probs = F.log_softmax(pred, axis=-1)
        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)
        nll_loss = paddle.gather_nd(-log_probs, index=idx)
        smooth_loss = paddle.mean(-log_probs, axis=-1)
        loss = confidence * nll_loss + self.smoothing * smooth_loss

        return loss.mean()

2.3.2 DropPath

def drop_path(x, drop_prob=0.0, training=False):
    """
    Drop paths (Stochastic Depth) per sample (when applied in main path of residual blocks).
    the original name is misleading as 'Drop Connect' is a different form of dropout in a separate paper...
    See discussion: https://github.com/tensorflow/tpu/issues/494#issuecomment-532968956 ...
    """
    if drop_prob == 0.0 or not training:
        return x
    keep_prob = paddle.to_tensor(1 - drop_prob)
    shape = (paddle.shape(x)[0],) + (1,) * (x.ndim - 1)
    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)
    random_tensor = paddle.floor(random_tensor)  # binarize
    output = x.divide(keep_prob) * random_tensor
    return output


class DropPath(nn.Layer):
    def __init__(self, drop_prob=None):
        super(DropPath, self).__init__()
        self.drop_prob = drop_prob

    def forward(self, x):
        return drop_path(x, self.drop_prob, self.training)

2.3.3 EfficientFormerV2模型的创建

2.3.3.1 Attention模块

class Attention4D(nn.Layer):
    def __init__(self, dim=384, key_dim=32, num_heads=8, attn_ratio=4, resolution=7, act_layer=nn.ReLU, stride=None):
        super().__init__()
        self.num_heads = num_heads
        self.scale = key_dim ** -0.5
        self.key_dim = key_dim
        self.nh_kd = key_dim * num_heads

        if stride is not None:
            self.resolution = math.ceil(resolution / stride)
            self.stride_conv = nn.Sequential(nn.Conv2D(dim, dim, kernel_size=3, stride=stride, padding=1, groups=dim),
                                             nn.BatchNorm2D(dim), )
            self.upsample = nn.Upsample(scale_factor=stride, mode='bilinear')
        else:
            self.resolution = resolution
            self.stride_conv = None
            self.upsample = None

        self.N = self.resolution ** 2
        self.N2 = self.N
        self.d = int(attn_ratio * key_dim)
        self.dh = int(attn_ratio * key_dim) * num_heads
        self.attn_ratio = attn_ratio
        h = self.dh + self.nh_kd * 2

        self.q = nn.Sequential(
            nn.Conv2D(dim, self.nh_kd, 1),
            nn.BatchNorm2D(self.nh_kd)
        )
        self.k = nn.Sequential(
            nn.Conv2D(dim, self.nh_kd, 1),
            nn.BatchNorm2D(self.nh_kd)
        )
        self.v = nn.Sequential(
            nn.Conv2D(dim, self.dh, 1),
            nn.BatchNorm2D(self.dh)
        )
        self.local_v = nn.Sequential(
            nn.Conv2D(self.dh, self.dh, 3, padding=1, groups=self.dh),
            nn.BatchNorm2D(self.dh)
        )
        self.talking_head1 = nn.Conv2D(self.num_heads, self.num_heads, 1)
        self.talking_head2 = nn.Conv2D(self.num_heads, self.num_heads, 1)

        self.proj = nn.Sequential(
            act_layer(),
            nn.Conv2D(self.dh, dim, 1),
            nn.BatchNorm2D(dim)
        )

        points = list(itertools.product(range(self.resolution), range(self.resolution)))
        N = len(points)
        self.N = N
        attention_offsets = {}
        idxs = []
        for p1 in points:
            for p2 in points:
                offset = (abs(p1[0] - p2[0]), abs(p1[1] - p2[1]))
                if offset not in attention_offsets:
                    attention_offsets[offset] = len(attention_offsets)
                idxs.append(attention_offsets[offset])
        self.attention_biases = self.create_parameter((len(attention_offsets), num_heads), default_initializer=nn.initializer.Constant(0.0))
        self.attention_bias_idxs = idxs

    def forward(self, x):
        B, C, H, W = x.shape

        if self.stride_conv is not None:
            x = self.stride_conv(x)

        q = self.q(x).flatten(2).reshape((B, self.num_heads, -1, self.N)).transpose((0, 1, 3, 2))
        k = self.k(x).flatten(2).reshape((B, self.num_heads, -1, self.N)).transpose((0, 1, 3, 2))
        v = self.v(x)
        v_local = self.local_v(v)
        v = v.flatten(2).reshape((B, self.num_heads, -1, self.N)).transpose((0, 1, 3, 2))

        attn = q @ k.transpose((0, 1, 3, 2)) * self.scale

        attn = attn + self.attention_biases[self.attention_bias_idxs].transpose((1, 0)).reshape((1, self.num_heads, self.N, self.N))

        attn = self.talking_head1(attn)
        attn = F.softmax(attn, axis=-1)
        attn = self.talking_head2(attn)

        x = attn @ v

        out = x.transpose((0, 1, 3, 2)).reshape((B, self.dh, self.resolution, self.resolution)) + v_local
        if self.upsample is not None:
            out = self.upsample(out)

        out = self.proj(out)
        return out

def stem(in_chs, out_chs, act_layer=nn.ReLU):
    return nn.Sequential(
        nn.Conv2D(in_chs, out_chs // 2, kernel_size=3, stride=2, padding=1),
        nn.BatchNorm2D(out_chs // 2),
        act_layer(),
        nn.Conv2D(out_chs // 2, out_chs, kernel_size=3, stride=2, padding=1),
        nn.BatchNorm2D(out_chs),
        act_layer())

2.3.3.2 Attention Downsampling

class LGQuery(nn.Layer):
    def __init__(self, in_dim, out_dim):
        super().__init__()

        self.pool = nn.AvgPool2D(1, 2, 0)
        self.local = nn.Conv2D(in_dim, in_dim, kernel_size=3, stride=2, padding=1, groups=in_dim)
        self.proj = nn.Sequential(
            nn.Conv2D(in_dim, out_dim, 1),
            nn.BatchNorm2D(out_dim)
        )

    def forward(self, x):
        local_q = self.local(x)
        pool_q = self.pool(x)
        q = local_q + pool_q
        q = self.proj(q)
        return q

class Attention4DDownsample(nn.Layer):
    def __init__(self, dim=384, key_dim=16, num_heads=8, attn_ratio=4,
                 resolution=7, out_dim=None, act_layer=nn.GELU):
        super().__init__()

        self.num_heads = num_heads
        self.scale = key_dim ** -0.5
        self.key_dim = key_dim
        self.nh_kd = nh_kd = key_dim * num_heads

        self.resolution = resolution

        self.d = int(attn_ratio * key_dim)
        self.dh = int(attn_ratio * key_dim) * num_heads
        self.attn_ratio = attn_ratio
        h = self.dh + nh_kd * 2

        if out_dim is not None:
            self.out_dim = out_dim
        else:
            self.out_dim = dim
        self.resolution2 = math.ceil(self.resolution / 2)
        self.q = LGQuery(dim, self.nh_kd)

        self.N = self.resolution ** 2
        self.N2 = self.resolution2 ** 2

        self.k = nn.Sequential(
            nn.Conv2D(dim, self.num_heads * self.key_dim, 1),
            nn.BatchNorm2D(self.num_heads * self.key_dim)
        )
        self.v = nn.Sequential(
            nn.Conv2D(dim, self.num_heads * self.d, 1),
            nn.BatchNorm2D(self.num_heads * self.d),
        )
        self.v_local = nn.Sequential(
            nn.Conv2D(self.dh, self.dh, kernel_size=3, stride=2, padding=1, groups=self.num_heads * self.d),
            nn.BatchNorm2D(self.num_heads * self.d)
        )

        self.proj = nn.Sequential(
            act_layer(),
            nn.Conv2D(self.dh, self.out_dim, 1),
            nn.BatchNorm2D(self.out_dim)
        )

        points = list(itertools.product(range(self.resolution), range(self.resolution)))
        points_ = list(itertools.product(range(self.resolution2), range(self.resolution2)))
        N = len(points)
        N_ = len(points_)
        self.N = N
        self.N_ = N_
        attention_offsets = {}
        idxs = []
        for p1 in points_:
            for p2 in points:
                size = 1
                offset = (
                    abs(p1[0] * math.ceil(self.resolution / self.resolution2) - p2[0] + (size - 1) / 2),
                    abs(p1[1] * math.ceil(self.resolution / self.resolution2) - p2[1] + (size - 1) / 2))
                if offset not in attention_offsets:
                    attention_offsets[offset] = len(attention_offsets)
                idxs.append(attention_offsets[offset])
        self.attention_biases = self.create_parameter((len(attention_offsets), num_heads), default_initializer=nn.initializer.Constant(0.0))
        self.attention_bias_idxs = idxs

    def forward(self, x):
        B, C, H, W = x.shape
        q = self.q(x).flatten(2).reshape((B, self.num_heads, -1, self.N2)).transpose((0, 1, 3, 2))
        k = self.k(x).flatten(2).reshape((B, self.num_heads, -1, self.N))
        v = self.v(x)
        v_local = self.v_local(v)
        v = v.flatten(2).reshape((B, self.num_heads, -1, self.N)).transpose((0, 1, 3, 2))

        attn = q @ k * self.scale

        attn = attn + self.attention_biases[self.attention_bias_idxs].transpose((1, 0)).reshape((1, self.num_heads, self.N_, self.N))

        attn = F.softmax(attn, axis=-1)
        x = (attn @ v).transpose((0, 1, 3, 2))

        out = x.reshape((B, self.dh, self.resolution2, self.resolution2)) + v_local

        out = self.proj(out)
        return out

def to_2tuple(x):
    return (x, x)

class Embedding(nn.Layer):
    def __init__(self, patch_size=3, stride=2, padding=1,
                 in_chans=3, embed_dim=768, norm_layer=nn.BatchNorm2D,
                 light=False, asub=False, resolution=None, act_layer=nn.ReLU, attn_block=Attention4DDownsample):
        super().__init__()
        self.light = light
        self.asub = asub

        if self.light:
            self.new_proj = nn.Sequential(
                nn.Conv2D(in_chans, in_chans, kernel_size=3, stride=2, padding=1, groups=in_chans),
                nn.BatchNorm2D(in_chans),
                nn.Hardswish(),
                nn.Conv2D(in_chans, embed_dim, kernel_size=1, stride=1, padding=0),
                nn.BatchNorm2D(embed_dim),
            )
            self.skip = nn.Sequential(
                nn.Conv2D(in_chans, embed_dim, kernel_size=1, stride=2, padding=0),
                nn.BatchNorm2D(embed_dim)
            )
        elif self.asub:
            self.attn = attn_block(dim=in_chans, out_dim=embed_dim,
                                   resolution=resolution, act_layer=act_layer)
            patch_size = to_2tuple(patch_size)
            stride = to_2tuple(stride)
            padding = to_2tuple(padding)
            self.conv = nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size,
                                  stride=stride, padding=padding)
            self.bn = norm_layer(embed_dim) if norm_layer else nn.Identity()
        else:
            patch_size = to_2tuple(patch_size)
            stride = to_2tuple(stride)
            padding = to_2tuple(padding)
            self.proj = nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size,
                                  stride=stride, padding=padding)
            self.norm = norm_layer(embed_dim) if norm_layer else nn.Identity()

    def forward(self, x):
        if self.light:
            out = self.new_proj(x) + self.skip(x)
        elif self.asub:
            out_conv = self.conv(x)
            out_conv = self.bn(out_conv)
            out = self.attn(x) + out_conv
        else:
            x = self.proj(x)
            out = self.norm(x)
        return out

class Mlp(nn.Layer):
    """
    Implementation of MLP with 1*1 convolutions.
    Input: tensor with shape [B, C, H, W]
    """

    def __init__(self, in_features, hidden_features=None,
                 out_features=None, act_layer=nn.GELU, drop=0., mid_conv=False):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        self.mid_conv = mid_conv
        self.fc1 = nn.Conv2D(in_features, hidden_features, 1)
        self.act = act_layer()
        self.fc2 = nn.Conv2D(hidden_features, out_features, 1)
        self.drop = nn.Dropout(drop)

        if self.mid_conv:
            self.mid = nn.Conv2D(hidden_features, hidden_features, kernel_size=3, stride=1, padding=1,
                                 groups=hidden_features)
            self.mid_norm = nn.BatchNorm2D(hidden_features)

        self.norm1 = nn.BatchNorm2D(hidden_features)
        self.norm2 = nn.BatchNorm2D(out_features)

    def forward(self, x):
        x = self.fc1(x)
        x = self.norm1(x)
        x = self.act(x)

        if self.mid_conv:
            x_mid = self.mid(x)
            x_mid = self.mid_norm(x_mid)
            x = self.act(x_mid)
        x = self.drop(x)

        x = self.fc2(x)
        x = self.norm2(x)

        x = self.drop(x)
        return x

2.3.3.3 Local-Global Block

class AttnFFN(nn.Layer):
    def __init__(self, dim, mlp_ratio=4.,
                 act_layer=nn.ReLU, norm_layer=nn.LayerNorm,
                 drop=0., drop_path=0.,
                 use_layer_scale=True, layer_scale_init_value=1e-5,
                 resolution=7, stride=None):

        super().__init__()

        self.token_mixer = Attention4D(dim, resolution=resolution, act_layer=act_layer, stride=stride)
        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim,
                       act_layer=act_layer, drop=drop, mid_conv=True)

        self.drop_path = DropPath(drop_path) if drop_path > 0. \
            else nn.Identity()
        self.use_layer_scale = use_layer_scale
        if use_layer_scale:
            self.layer_scale_1 = self.create_parameter((1, dim, 1, 1), default_initializer=nn.initializer.Constant(layer_scale_init_value))
            self.layer_scale_2 = self.create_parameter((1, dim, 1, 1), default_initializer=nn.initializer.Constant(layer_scale_init_value))

    def forward(self, x):
        if self.use_layer_scale:
            x = x + self.drop_path(self.layer_scale_1 * self.token_mixer(x))
            x = x + self.drop_path(self.layer_scale_2 * self.mlp(x))

        else:
            x = x + self.drop_path(self.token_mixer(x))
            x = x + self.drop_path(self.mlp(x))
        return x

2.3.3.4 Local Block

class FFN(nn.Layer):
    def __init__(self, dim, pool_size=3, mlp_ratio=4.,
                 act_layer=nn.GELU,
                 drop=0., drop_path=0.,
                 use_layer_scale=True, layer_scale_init_value=1e-5):
        super().__init__()

        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim,
                       act_layer=act_layer, drop=drop, mid_conv=True)

        self.drop_path = DropPath(drop_path) if drop_path > 0. \
            else nn.Identity()
        self.use_layer_scale = use_layer_scale
        if use_layer_scale:
            self.layer_scale_2 = self.create_parameter((1, dim, 1, 1), default_initializer=nn.initializer.Constant(layer_scale_init_value))

    def forward(self, x):
        if self.use_layer_scale:
            x = x + self.drop_path(self.layer_scale_2 * self.mlp(x))
        else:
            x = x + self.drop_path(self.mlp(x))
        return x

def eformer_block(dim, index, layers,
                  pool_size=3, mlp_ratio=4.,
                  act_layer=nn.GELU, norm_layer=nn.LayerNorm,
                  drop_rate=.0, drop_path_rate=0.,
                  use_layer_scale=True, layer_scale_init_value=1e-5, vit_num=1, resolution=7, e_ratios=None):
    blocks = []
    for block_idx in range(layers[index]):
        block_dpr = drop_path_rate * (
                block_idx + sum(layers[:index])) / (sum(layers) - 1)
        mlp_ratio = e_ratios[str(index)][block_idx]
        if index >= 2 and block_idx > layers[index] - 1 - vit_num:
            if index == 2:
                stride = 2
            else:
                stride = None
            blocks.append(AttnFFN(
                dim, mlp_ratio=mlp_ratio,
                act_layer=act_layer, norm_layer=norm_layer,
                drop=drop_rate, drop_path=block_dpr,
                use_layer_scale=use_layer_scale,
                layer_scale_init_value=layer_scale_init_value,
                resolution=resolution,
                stride=stride,
            ))
        else:
            blocks.append(FFN(
                dim, pool_size=pool_size, mlp_ratio=mlp_ratio,
                act_layer=act_layer,
                drop=drop_rate, drop_path=block_dpr,
                use_layer_scale=use_layer_scale,
                layer_scale_init_value=layer_scale_init_value,
            ))
    blocks = nn.Sequential(*blocks)
    return blocks

class EfficientFormerV2(nn.Layer):
    def __init__(self, layers, embed_dims=None,
                 mlp_ratios=4, downsamples=None,
                 pool_size=3,
                 norm_layer=nn.BatchNorm2D, act_layer=nn.GELU,
                 num_classes=1000,
                 down_patch_size=3, down_stride=2, down_pad=1,
                 drop_rate=0., drop_path_rate=0.,
                 use_layer_scale=True, layer_scale_init_value=1e-5,
                 vit_num=0,
                 distillation=True,
                 resolution=224,
                 e_ratios=None):
        super().__init__()

        self.num_classes = num_classes

        self.patch_embed = stem(3, embed_dims[0], act_layer=act_layer)

        network = []
        for i in range(len(layers)):
            stage = eformer_block(embed_dims[i], i, layers,
                                  pool_size=pool_size, mlp_ratio=mlp_ratios,
                                  act_layer=act_layer, norm_layer=norm_layer,
                                  drop_rate=drop_rate,
                                  drop_path_rate=drop_path_rate,
                                  use_layer_scale=use_layer_scale,
                                  layer_scale_init_value=layer_scale_init_value,
                                  resolution=math.ceil(resolution / (2 ** (i + 2))),
                                  vit_num=vit_num,
                                  e_ratios=e_ratios)
            network.append(stage)
            if i >= len(layers) - 1:
                break
            if downsamples[i] or embed_dims[i] != embed_dims[i + 1]:
                # downsampling between two stages
                if i >= 2:
                    asub = True
                else:
                    asub = False
                network.append(
                    Embedding(
                        patch_size=down_patch_size, stride=down_stride,
                        padding=down_pad,
                        in_chans=embed_dims[i], embed_dim=embed_dims[i + 1],
                        resolution=math.ceil(resolution / (2 ** (i + 2))),
                        asub=asub,
                        act_layer=act_layer, norm_layer=norm_layer,
                    )
                )

        self.network = nn.LayerList(network)

        # Classifier head
        self.norm = norm_layer(embed_dims[-1])
        self.head = nn.Linear(
            embed_dims[-1], num_classes) if num_classes > 0 \
            else nn.Identity()
        self.dist = distillation
        if self.dist:
            self.dist_head = nn.Linear(
                embed_dims[-1], num_classes) if num_classes > 0 \
                else nn.Identity()

        self.apply(self.cls_init_weights)

    # init for classification
    def cls_init_weights(self, m):
        tn = nn.initializer.TruncatedNormal(std=.02)
        zero = nn.initializer.Constant(0.)
        one = nn.initializer.Constant(1.)
        if isinstance(m, (nn.Linear, nn.Conv2D)):
            tn(m.weight)
            if isinstance(m, nn.Linear) and m.bias is not None:
                zero(m.bias)

        if isinstance(m, (nn.BatchNorm2D, nn.LayerNorm)):
            one(m.weight)
            zero(m.bias)

    def forward_tokens(self, x):

        for idx, block in enumerate(self.network):
            x = block(x)
        return x

    def forward(self, x):
        x = self.patch_embed(x)
        x = self.forward_tokens(x)

        x = self.norm(x)
        if self.dist:
            cls_out = self.head(x.flatten(2).mean(-1)), self.dist_head(x.flatten(2).mean(-1))
            if not self.training:
                cls_out = (cls_out[0] + cls_out[1]) / 2
        else:
            cls_out = self.head(x.flatten(2).mean(-1))
        # for image classification
        return cls_out

2.3.4 模型的参数

EfficientFormer_width = {
    'L': [40, 80, 192, 384],  # 26m 83.3% 6attn
    'S2': [32, 64, 144, 288],  # 12m 81.6% 4attn dp0.02
    'S1': [32, 48, 120, 224],  # 6.1m 79.0
    'S0': [32, 48, 96, 176],  # 75.0 75.7
}

EfficientFormer_depth = {
    'L': [5, 5, 15, 10],  # 26m 83.3%
    'S2': [4, 4, 12, 8],  # 12m
    'S1': [3, 3, 9, 6],  # 79.0
    'S0': [2, 2, 6, 4],  # 75.7
}

# 26m
expansion_ratios_L = {
    '0': [4, 4, 4, 4, 4],
    '1': [4, 4, 4, 4, 4],
    '2': [4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4],
    '3': [4, 4, 4, 3, 3, 3, 3, 4, 4, 4],
}

# 12m
expansion_ratios_S2 = {
    '0': [4, 4, 4, 4],
    '1': [4, 4, 4, 4],
    '2': [4, 4, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4],
    '3': [4, 4, 3, 3, 3, 3, 4, 4],
}

# 6.1m
expansion_ratios_S1 = {
    '0': [4, 4, 4],
    '1': [4, 4, 4],
    '2': [4, 4, 3, 3, 3, 3, 4, 4, 4],
    '3': [4, 4, 3, 3, 4, 4],
}

# 3.5m
expansion_ratios_S0 = {
    '0': [4, 4],
    '1': [4, 4],
    '2': [4, 3, 3, 3, 4, 4],
    '3': [4, 3, 3, 4],
}

def efficientformerv2_s0(pretrained=False):
    model = EfficientFormerV2(
        layers=EfficientFormer_depth['S0'],
        embed_dims=EfficientFormer_width['S0'],
        downsamples=[True, True, True, True],
        vit_num=2,
        drop_path_rate=0.0,
        num_classes=10,
        distillation=False,
        e_ratios=expansion_ratios_S0)
    return model

def efficientformerv2_s1(pretrained=False):
    model = EfficientFormerV2(
        layers=EfficientFormer_depth['S1'],
        embed_dims=EfficientFormer_width['S1'],
        downsamples=[True, True, True, True],
        vit_num=2,
        drop_path_rate=0.0,
        num_classes=10,
        distillation=False,
        e_ratios=expansion_ratios_S1)
    return model

def efficientformerv2_s2(pretrained=False):
    model = EfficientFormerV2(
        layers=EfficientFormer_depth['S2'],
        embed_dims=EfficientFormer_width['S2'],
        downsamples=[True, True, True, True],
        vit_num=4,
        drop_path_rate=0.02,
        num_classes=10,
        distillation=False,
        e_ratios=expansion_ratios_S2)
    return model

def efficientformerv2_l(pretrained=False):
    model = EfficientFormerV2(
        layers=EfficientFormer_depth['L'],
        embed_dims=EfficientFormer_width['L'],
        downsamples=[True, True, True, True],
        vit_num=6,
        drop_path_rate=0.1,
        num_classes=10,
        distillation=False,
        e_ratios=expansion_ratios_L)
    return model

model = efficientformerv2_s0()
paddle.summary(model, (1, 3, 224, 224))

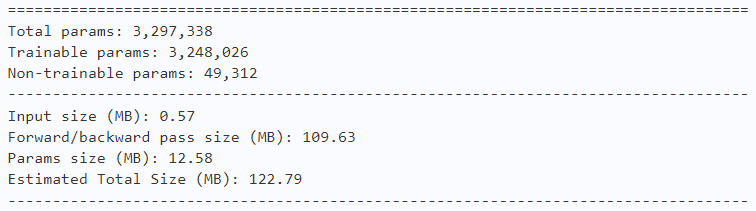

model = efficientformerv2_s1()
paddle.summary(model, (1, 3, 224, 224))

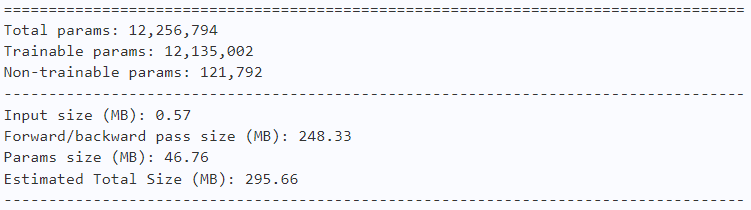

model = efficientformerv2_s2()
paddle.summary(model, (1, 3, 224, 224))

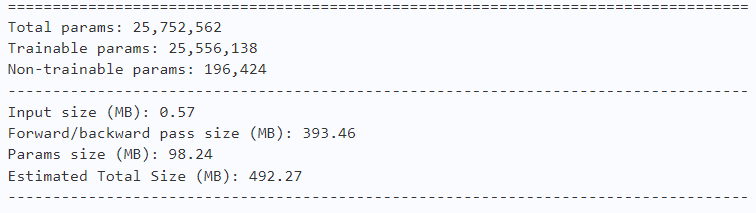

model = efficientformerv2_l()
paddle.summary(model, (1, 3, 224, 224))

2.4 训练

learning_rate = 0.001
n_epochs = 100
paddle.seed(42)
np.random.seed(42)

work_path = 'work/model'

# EfficientFormerV2-S0
model = efficientformerv2_s0()

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0
threshold = 0.0
best_acc = 0.0
val_acc = 0.0

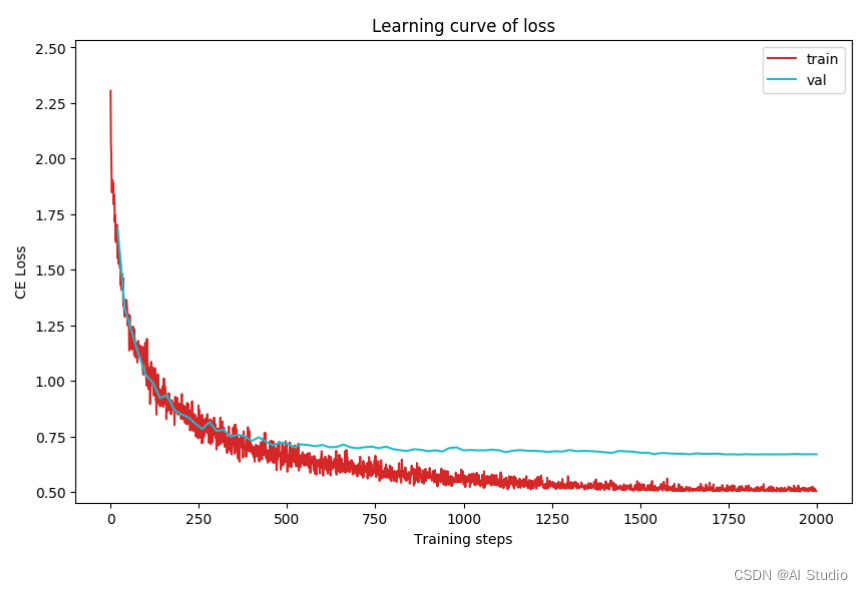

loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording loss

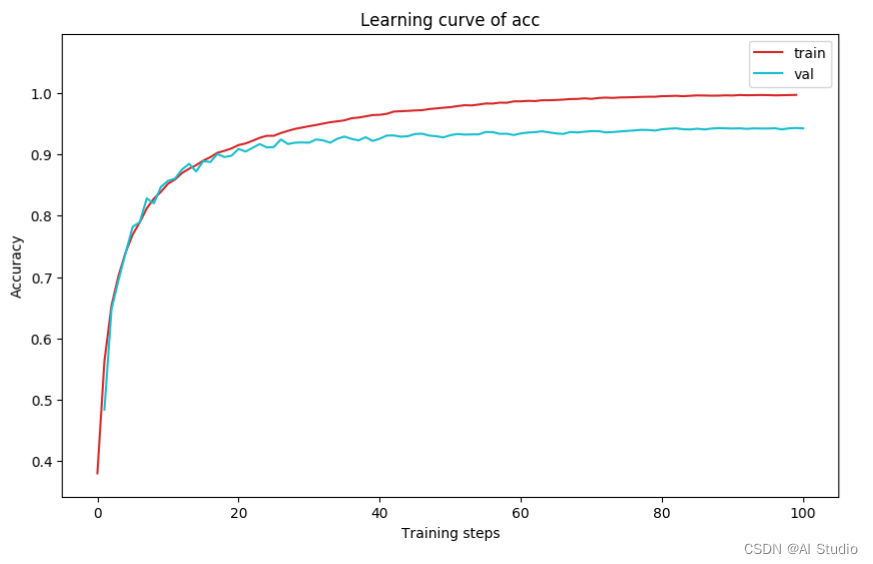

acc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracy

loss_iter = 0
acc_iter = 0

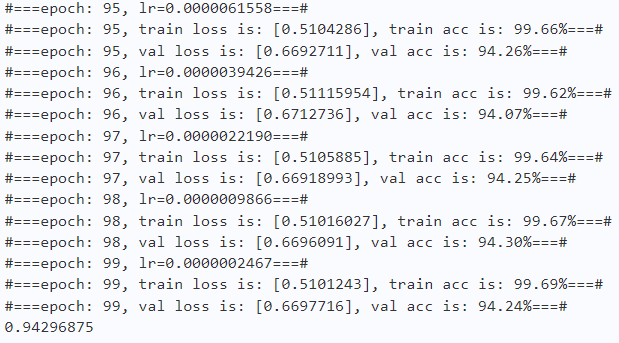

for epoch in range(n_epochs):
    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()
    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))
    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        accuracy_manager.update(acc)
        if batch_id % 10 == 0:
            loss_record['train']['loss'].append(loss.numpy())
            loss_record['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record['train']['acc'].append(train_acc)
    acc_record['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.
    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))

    # ---------- Validation ----------
    model.eval()

    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)
        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record['val']['loss'].append(total_val_loss.numpy())
    loss_record['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record['val']['acc'].append(val_acc)
    acc_record['val']['iter'].append(acc_iter)

    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))

    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))

print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

2.5 结果分析

def plot_learning_curve(record, title='loss', ylabel='CE Loss'):
    ''' Plot learning curve of your CNN '''
    maxtrain = max(map(float, record['train'][title]))
    maxval = max(map(float, record['val'][title]))
    ymax = max(maxtrain, maxval) * 1.1
    mintrain = min(map(float, record['train'][title]))
    minval = min(map(float, record['val'][title]))
    ymin = min(mintrain, minval) * 0.9

    total_steps = len(record['train'][title])
    x_1 = list(map(int, record['train']['iter']))
    x_2 = list(map(int, record['val']['iter']))
    figure(figsize=(10, 6))
    plt.plot(x_1, record['train'][title], c='tab:red', label='train')
    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')
    plt.ylim(ymin, ymax)
    plt.xlabel('Training steps')
    plt.ylabel(ylabel)
    plt.title('Learning curve of {}'.format(title))
    plt.legend()
    plt.show()

plot_learning_curve(loss_record, title='loss', ylabel='CE Loss')

plot_learning_curve(acc_record, title='acc', ylabel='Accuracy')

import time
work_path = 'work/model'
model = efficientformerv2_s0()
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()
for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)
    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()
print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

Throughout:813

def get_cifar10_labels(labels):
    """返回CIFAR10数据集的文本标签。"""
    text_labels = [
        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',
        'horse', 'ship', 'truck']
    return [text_labels[int(i)] for i in labels]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):
    """Plot a list of images."""
    figsize = (num_cols * scale, num_rows * scale)
    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)
    axes = axes.flatten()
    for i, (ax, img) in enumerate(zip(axes, imgs)):
        if paddle.is_tensor(img):
            ax.imshow(img.numpy())
        else:
            ax.imshow(img)
        ax.axes.get_xaxis().set_visible(False)
        ax.axes.get_yaxis().set_visible(False)
        if pred or gt:
            ax.set_title("pt: " + pred[i] + "\ngt: " + gt[i])
    return axes

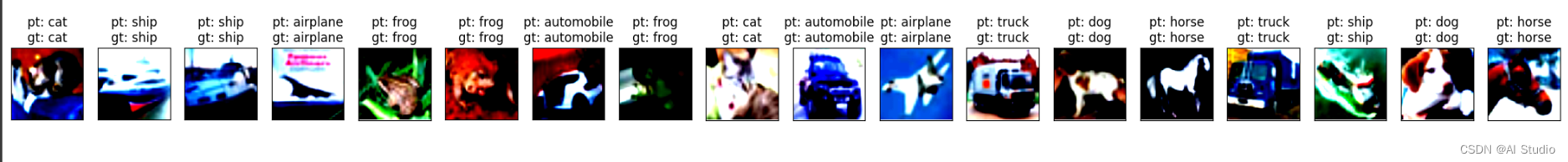

work_path = 'work/model'
X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = efficientformerv2_s0()
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 224, 224, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

!pip install interpretdl

import interpretdl as it

work_path = 'work/model'
model = efficientformerv2_s0()
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)

X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
lime = it.LIMECVInterpreter(model)

lime_weights = lime.interpret(X.numpy()[3], interpret_class=y.numpy()[3], batch_size=100, num_samples=10000, visual=True)

100%|██████████| 10000/10000 [00:56<00:00, 175.85it/s]

56<00:00, 175.85it/s]

3. 对比实验

model	Parameter	Throughout	Test Acc
EfficientFormer	11.4M	856	90.9%
EfficientFormerV2	3.3M	813	94.3%

总结

        EfficientFormerV2针对EfficientFormer做出了一系列的改进，得到了很好的性能提升，也为轻量化Transformer提供可行性方案

参考文献

1. Rethinking Vision Transformers for MobileNet Size and Speed
2. snap-research/EfficientFormer

此文章为搬运
原项目链接
